24
Actiontec USB/Ethernet DSL Modem User Manual

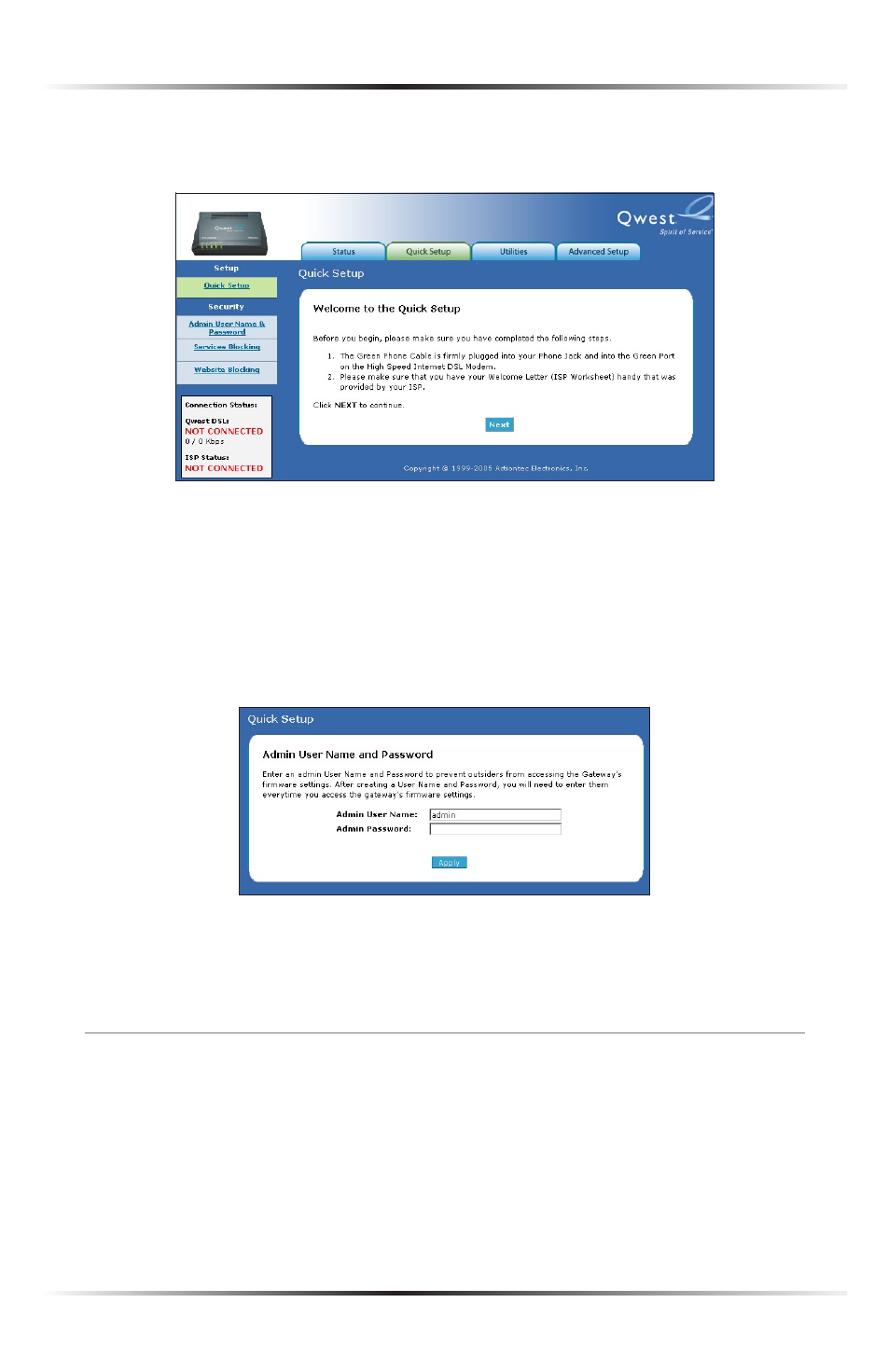

9. The Modem saves the settings and returns to the Home screen. Select Quick
Setup from the row of tabs to generate the “Quick Setup” tab.
10. Select Admin User Name & Password from the menu on the left side.
11. The “Admin User Name and Password” screen appears. Enter a new user
name (optional) in the “Admin User Name” text box, then a password in the
“Admin Password” text box. Make sure to write the user name and password
down and keep them in a secure location. They will be needed to access to the
Modem’s Graphical User Interface screens in the future.
12. Click Apply. The Modem saves the settings and returns to the Home screen.
The Modem has been configured to support a block of static IP addresses.
VIP Mode
This feature is used in conjunction with Unnumbered Mode. When VIP Mode is acti-
vated, the Modem uses NAT for private IP addressing for the local area network ( LAN ),
allowing both public IP addressing and private IP addressing to be configured to the
LAN simultaneously, while the DHCP server is reserved for private IP addressing. All
computers using public IP addresses with Unnumbered Mode must have the public IP
addresses statically assigned.
