Chapter 4 Setting up Static IP Addresses

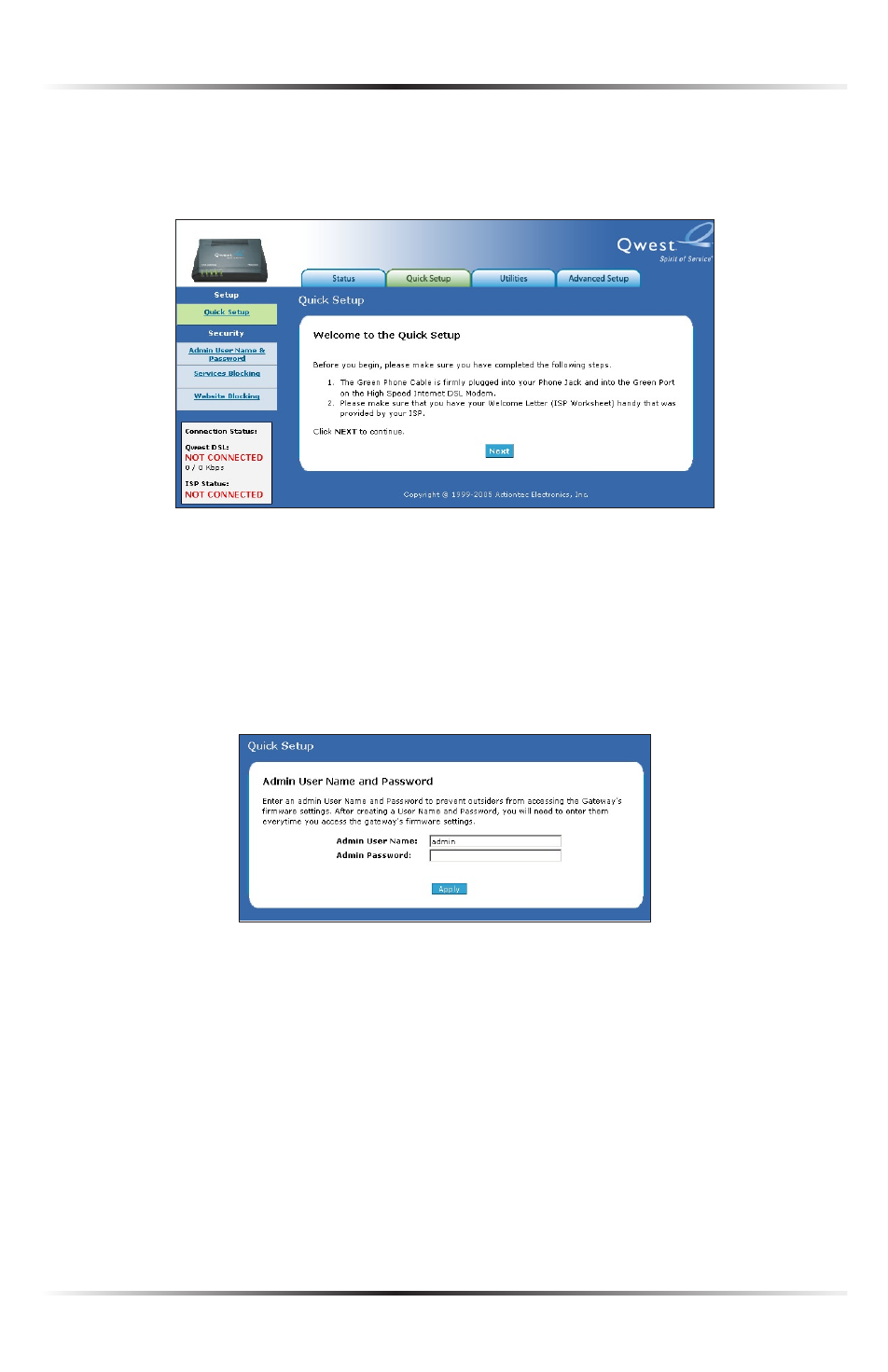

9. The Modem saves the settings and returns to the Home screen. Select Quick
Setup from the row of tabs at the top of the screen to generate the “Quick
Setup” tab.
10. Select Admin User Name & Password from the menu on the left side.
11. The “Admin User Name and Password” screen appears. Enter a new user
name (optional) in the “Admin User Name” text box, then a password in the
“Admin Password” text box. Make sure to write the user name and password
down and keep them in a secure location. They will be needed to access the
Modem’s Graphical User Interface screens in the future.
12. Click Apply. The Modem saves the settings and returns to the Home screen.
The Modem has been configured to support a single static IP address.
