Actiontec electronic GT701R - Manual (Page 24)

18
Actiontec USB/Ethernet DSL Modem User Manual
19
Chapter 4 Setting up Static IP Addresses

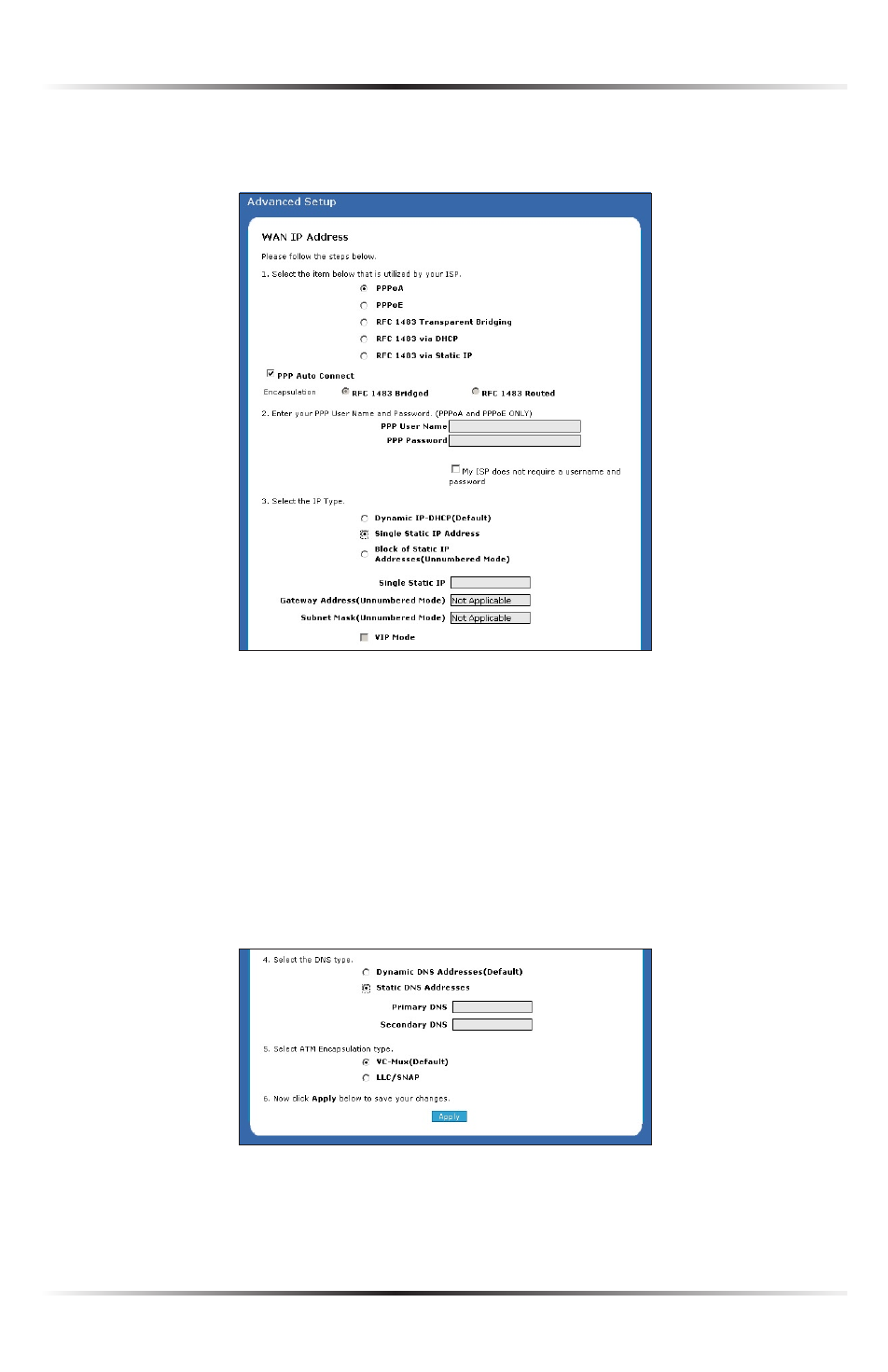

5. The “ WAN IP Address” screen appears. Scroll down to step 3, “Select the IP
type,” and click in the circle next to “Single Static IP Address.”
6. Enter the IP address obtained from the ISP worksheet in the “Single Static
IP ” text box.
☞
Note: The “Gateway Address” and “Subnet Address” text boxes
are not used during this procedure.
7. If provided with DNS settings on the ISP worksheet, scroll down to “Select the
DNS type.” Click in the circle next to “Static DNS Addresses” and enter the DNS
addresses in the appropriate text boxes.
If no
DNS settings were provided, skip this step and go to step 8 .
8. Click Apply.
