Chapter 4: Motherboard information 4-16
4.5 Connectors

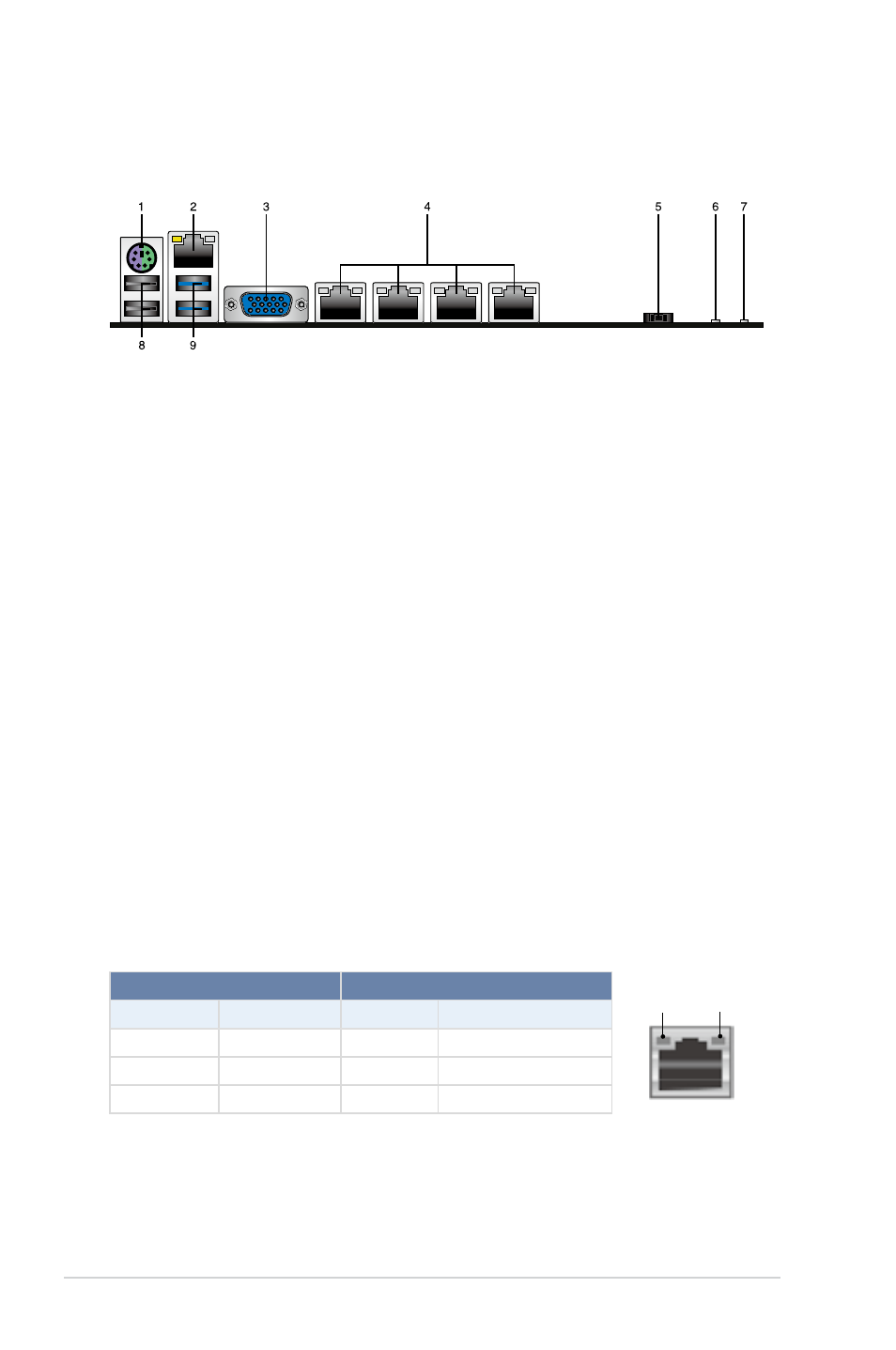

4.5.1 Rear panel connectors
1. PS/2 keyboard/mouse port (purple/green). This port is for a PS/2 keyboard
or mouse.
2. RJ-45 port for iKVM. This RJ-45 port functions only when you install ASMB7
management card.
3. Video Graphics Adapter port. This port is for a VGA monitor or other VGA-
compatible devices.
4. RJ-45 ports for LAN. These ports allows Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
5. Power-on Button. Press this button to turn on the system.
6. LOCLED1. The Location LED ligths up when the Location Button on the front
panel is pressed. This onboard LED functions like the Location LED on the front
and is useful in finding a specific server module within a chassis.
7. Power LED. This LED lights up when the Power-on button is pressed and the
system is on.
8. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0 devices.
9. USB 3.0 ports 1 and 2. These two 4-pin USB ports are available for connecting
USB 3.0 devices.
LAN port LED
indications
LAN port
SPEED
LED
ACT/LINK
LED
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
GREEN Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
