2-25 ASUS TS300-E8-PS4
2.8 Cable connections
2.8.1 Motherboard connections
• The bundled system cables are pre-connected before shipment. You do
not need to disconnect these cables unless you will remove pre-installed
components to install additional devices.
• Refer to Chapter 4 for detailed information on the connectors.

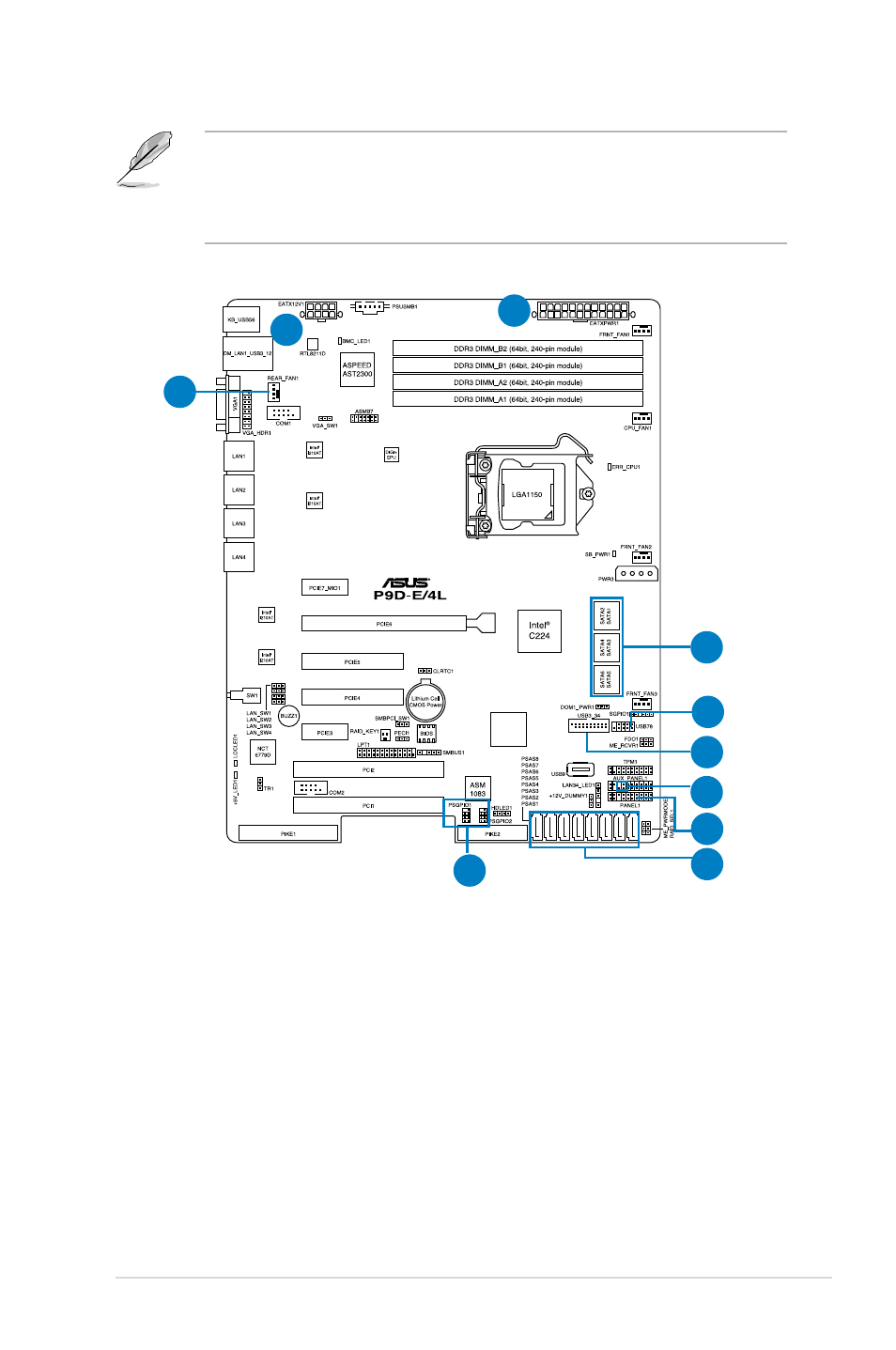

Standard cables connected to the motherboard
1. 24-pin EATX power connector (from power supply to motherboard)
2. 8-pin 12V power connector (from power supply to motherboard)
3. System fan connector (from system fan to motherboard)
4. USB 3.0 connector (from motherboard to front I/O board)
5. USB 2.0 connector (from motherboard to front I/O board)
6. SATA conectors (system default; from motherboard to SATA/SAS backplane)
7. Chassis Intrusion connector (from rear chassis intrusion switch to motherboard)
8. System panel connector (from motherboard to front I/O board)
9. SAS connectors (for ASUS PIKE only; from motherboard to SATA/SAS backplane)
10. Serial General Purpose Input/Output connectors
1
2
7
6
3
9
8
5
4
10
