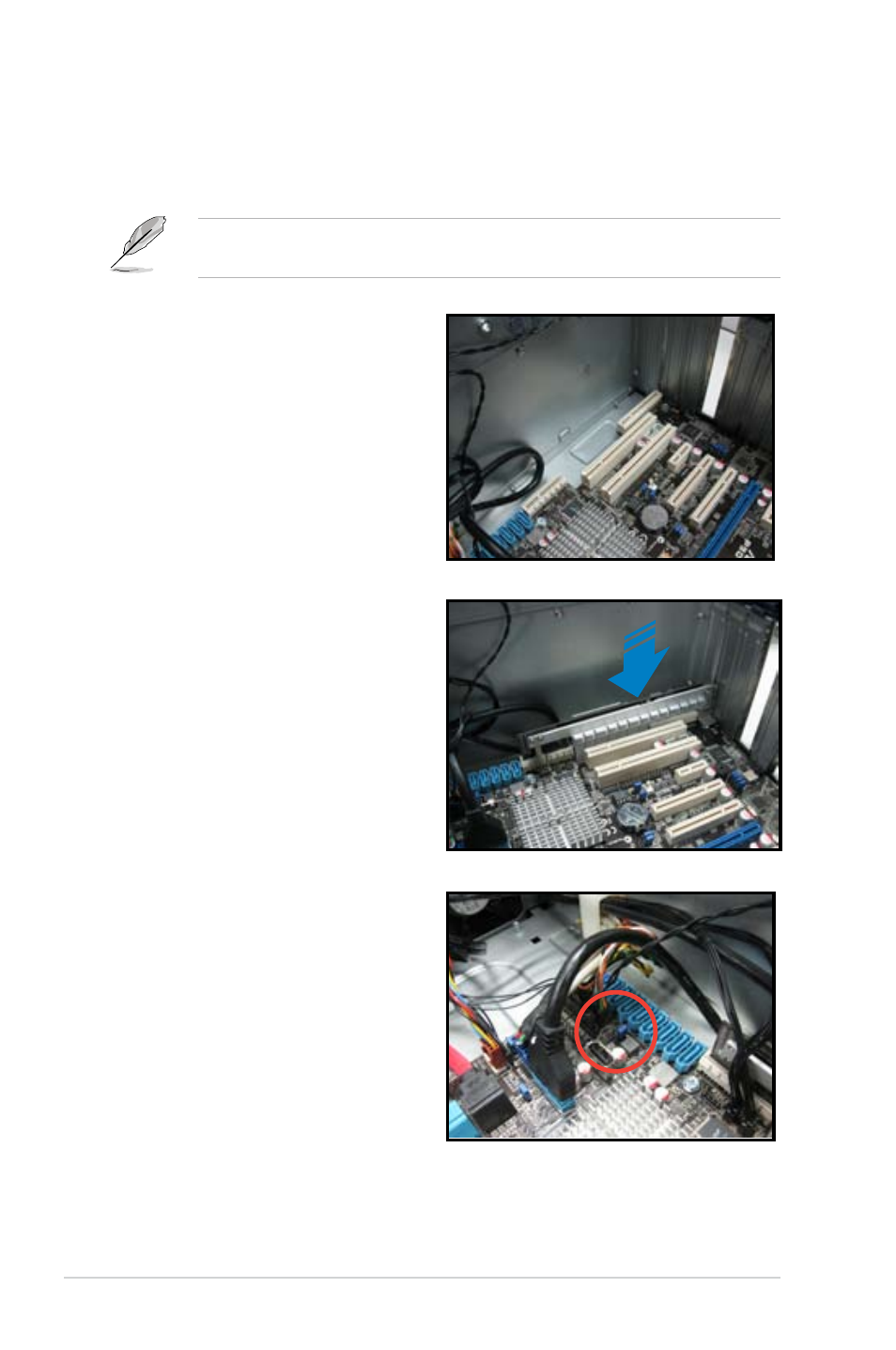

background image

Chapter 2: Hardware setup

2-22

2.7.2

Installing ASUS PIKE RAID card

Follow the steps below to install an optional ASUS RAID card on your motherboard.

Move the

SGPIO_SEL1 jumper on the SATA/SAS backplane to 2–3 when

installing the PIKE RAID card.

1.

Locate the PIKE RAID card slot on
the motherboard.

2.

Align the golden contact points of
the RAID card with the PIKE RAID
card slot. Insert the RAID card into
the slot until it is completely seated
on the slot.

3.

Connect the SAS cable to the SAS
connectors on the motherboard.
