2-13 ASUS TS300-E8-PS4
2.6 SATA/SAS hard disk drives
The hard disk drive module cage on the front panel, including externally removable
trays for mounting either SATA or SAS hard disk drives, allows you to access the
drive trays by simply opening the front bezel.
An HDD module cage comes with a SATA or SAS backplane. Check the type of
HDD module cage you purchase before buying additional hard disks.
2.6.1 Installing the HDD module cage

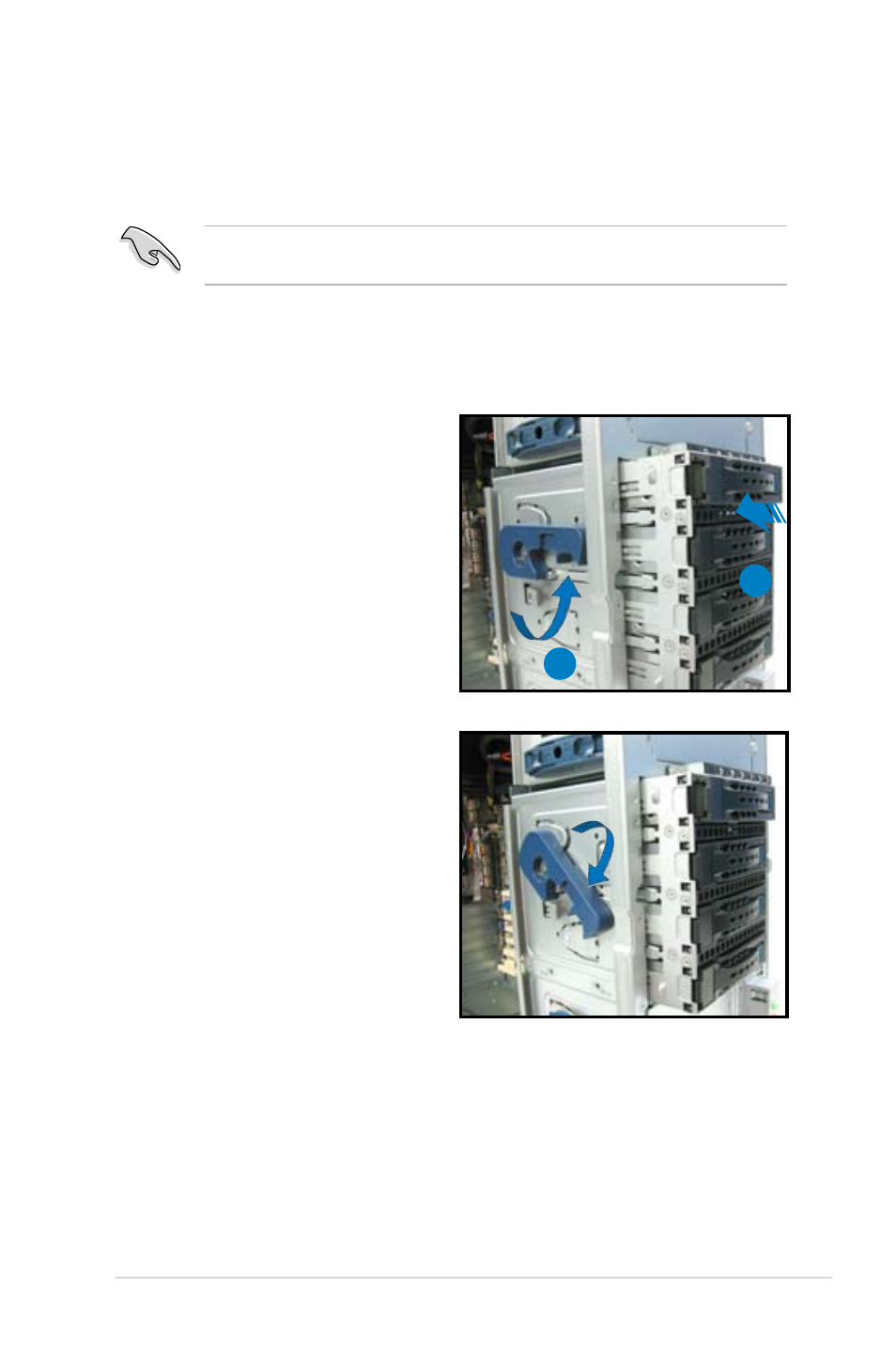

1. Examine the chassis and ensure the bay is free from wires and other
obstructions.
2. Rotate the HDD module cage
latch counterclockwise until it is at
a 180
0 angle.
3. Insert the HDD module cage into
the bay.
4. As you insert the HDD module
cage, the latch will swing
clockwise.
2
3
