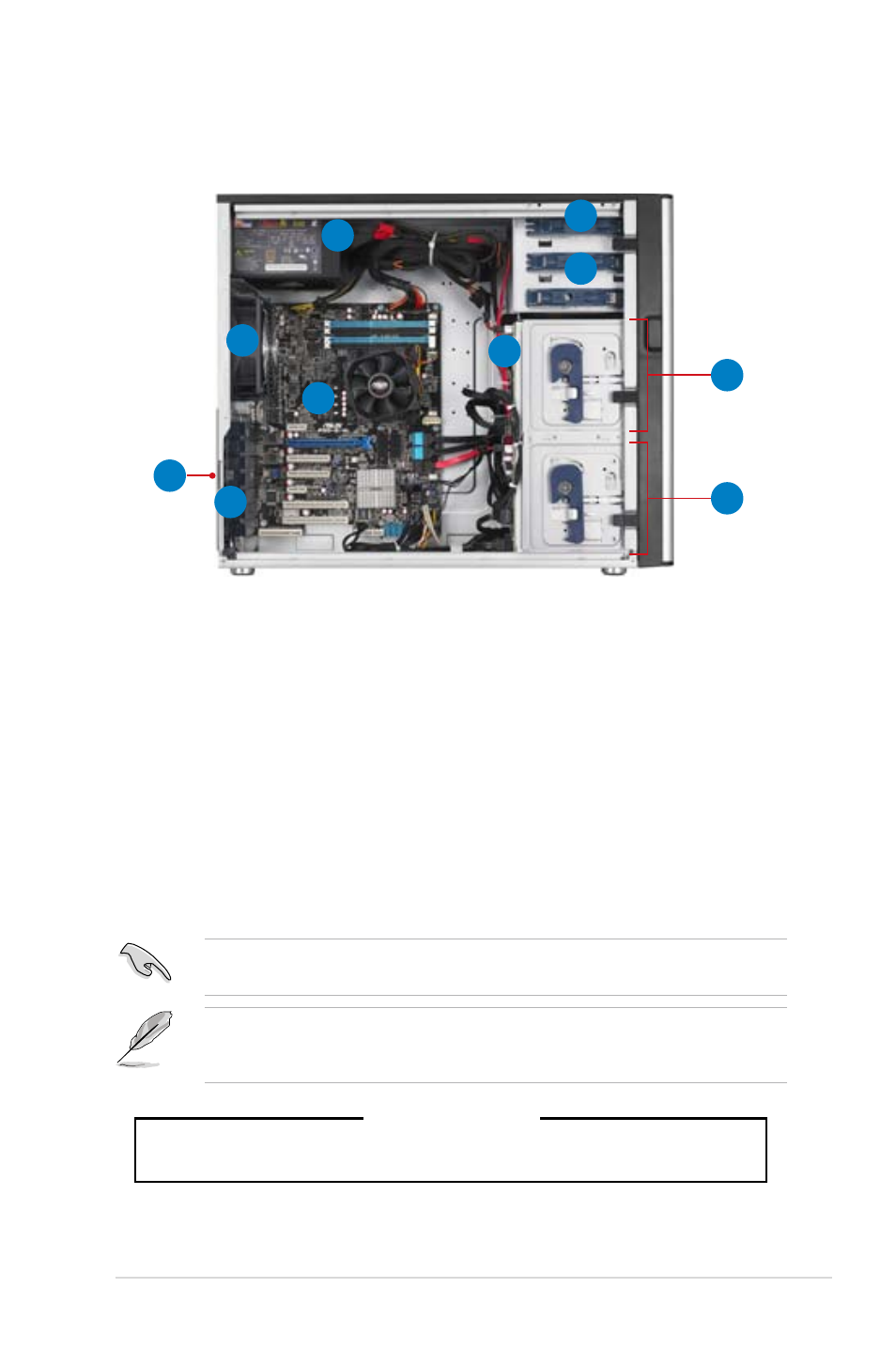

1.6 Internal features
The barebone server includes the basic components as shown.
The barebone server does not include a floppy disk drive and an optical disc drive. Connect
a USB floppy disk drive or a USB ODD to any of the USB ports on the front or rear panel if
you need to use a floppy disk or a optical disc.
*WARNING
HAZARDOUS MOVING PARTS
KEEP FINGERS AND OTHER BODY PARTS AWAY
Turn off the system power and detach the power supply before removing or replacing any
system component.
1. 500W(80Plus) Bronze Single Power supply unit:
2. 120mm x 38mm system fan (ARX FD1212-DP284G)
3. ASUS P9D-E/4L Server Board
4. Chassis intrusion switch
5. Expansion card locks
6. Optical drive
7. 2 x 5.25-inch drive bays
8. 4-bay HDD module (first set)
9. 4-bay HDD module (second set, optional)
10. SATA/SAS backplane board (first set, hidden)
1
2
3
4
5
6
7
8
10
9
