Canon EOS Rebel SL1 18-55mm IS STM Lens Kit - Manual (Page 265)

265

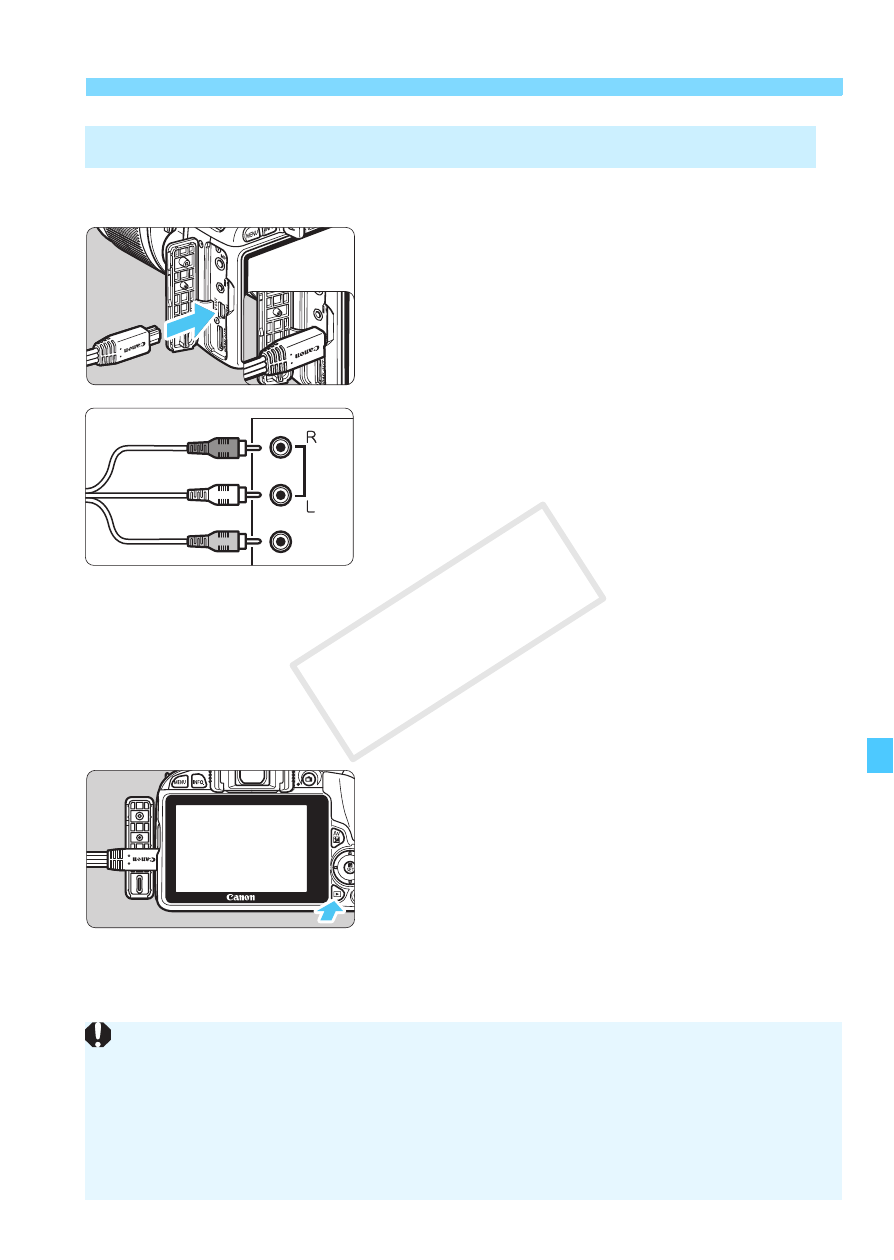

Viewing Images on a TV Set
Stereo AV Cable AVC-DC400ST (sold separately) is required.
1
Connect the AV cable to the
camera.
With the plug’s <Canon> logo facing
the back of the camera, insert it into
the
> terminal.
2
Connect the AV cable to the TV
set.
Connect the AV cable to the TV’s
video IN terminal and audio IN
terminals.
3
Turn on the TV and switch the
TV’s video input to select the
connected port.
4
Set the camera’s power switch to
<1>.
5
Press the <x> button.
X The image will appear on the TV
screen. (Nothing will be displayed on
the camera’s LCD monitor.)
To play back movies, see page 254.
Viewing on Non-HD TV Sets (Connected with AV Cable)
AUDIO
VIDEO
(Red)
(White)
(Yellow)
Do not use any AV cable other than the Stereo AV cable AVC-DC400ST
(sold separately). Images may not be displayed if you use a different
cable.
If the video system format does not match the TV’s, the images will not
be displayed properly. If this happens, switch to the proper video system
format with [52: Video system].
