Names of Parts
20

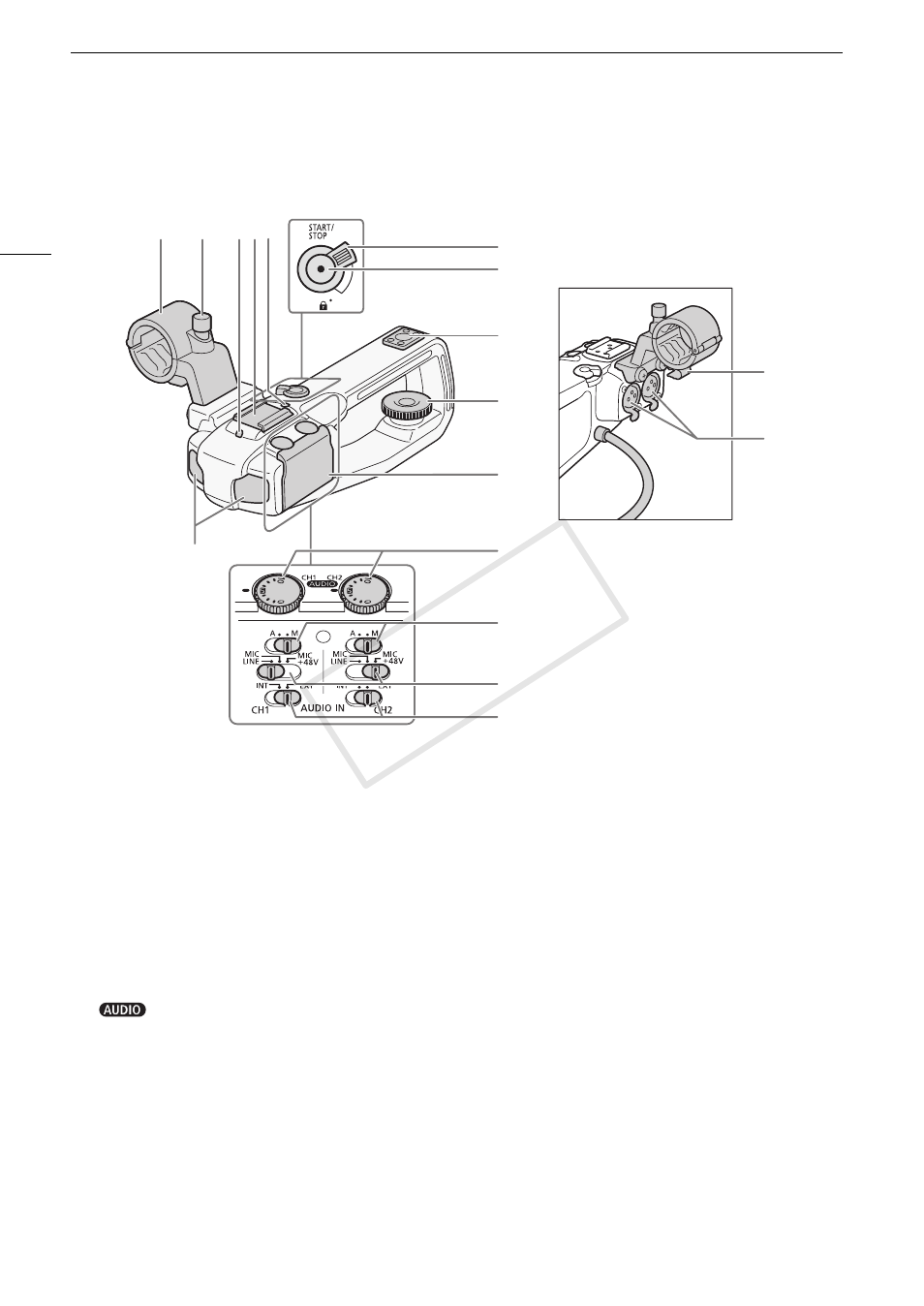

Handle Unit
16
1 2 3 4 5
9
8
6
7
10
11
12
17
13
15
14
1 Microphone holder (A 74)
2 Microphone lock screw (A 74)
3 Front tally lamp (A 45)
4 Cold accessory shoe
5 Rear tally lamp (A 45)
6 START/STOP lock (C) lever (A 47)
7 START/STOP button (A 45)
8 Mounting hole for 0.64 cm (1/4 in.) screws
9 Lock screw (A 32)
10 Protective cover for audio controls
11 Built-in microphone (A 74)
12
(audio level) dials for CH1 (left) and CH2
(right) (A 75, 78)
13 Audio level switches for CH1 (left) and CH2 (right)
(A 75, 78)
14 XLR terminal switches for CH1 (left) and CH2
(right) (A 77)
15 AUDIO IN (audio input selection) switches for CH1
(left) and CH2 (right) (A 74, 77)
16 Microphone cable clamp (A 74)
17 XLR terminals CH1 (right) and CH2 (left) (A 74)
