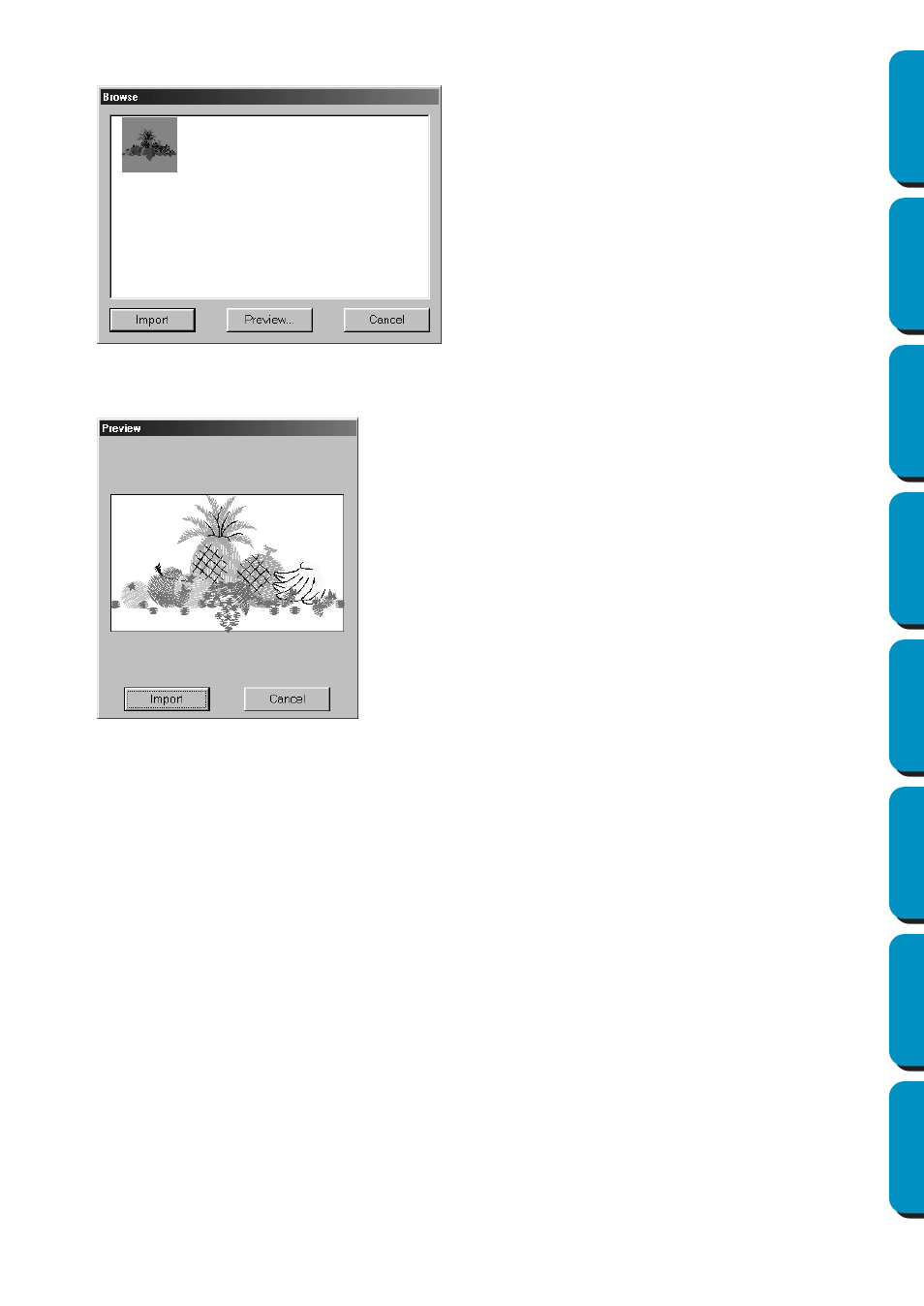

2 After the data has been read, the following dialog appears.
3 If you choose to preview a pattern, a Preview dialog similar to this will appear.
4
While importing some patterns, the Select Import size dialog may appear. If this happens, select
the import size by clicking the appropriate radio button, and then click OK to import the pattern.
NOTE:
Due to copyright issues, some embroidery cards cannot be used with this function.
◆ To select a pattern, click on its icon or drag
the pointer over it.
◆ To import a pattern, click
Import or double-
click the pattern icon.
◆ To see a more detailed image of the pattern,
click Preview .
◆ Click
Cancel if you want to quit the opera-
tion.
◆ Click
Import to import the pattern.
◆ Click
Cancel to return to the previous dia-
log.
