Loading documents
2
Using the scanner glass
2
You can use the scanner glass to fax, copy or
scan pages of a book or one page at a time.
Document Sizes Supported
2

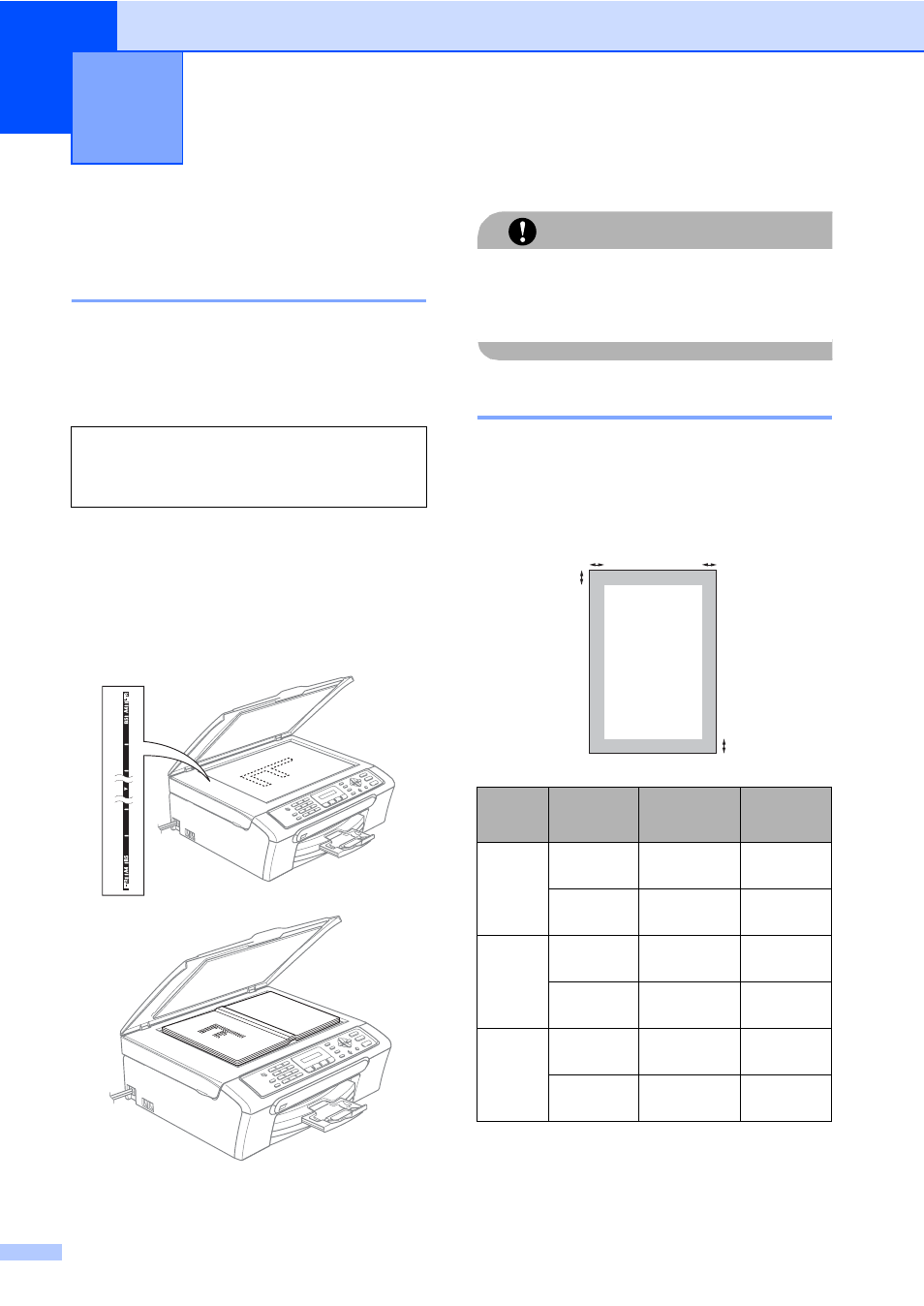

How to load documents
2
a
Lift the document cover.
b
Using the document guidelines on the
left, center the document face down on
the scanner glass.
c
Close the document cover.
CAUTION
If you are scanning a book or thick
document, DO NOT slam the cover or
press on it.
Scannable area
2
The scannable area depends on the settings
in the application you are using. The figures
below show the areas you cannot scan on
Letter and A4 paper.
Loading documents and paper
2
Length: Up to 11.7 in. (297 mm)
Width: Up to 8.5 in. (215.9 mm)
Weight: Up to 4.4 lb (2 kg)
Usage Document
Size Top (1)
Bottom (2)
Left (3)
Right (4)
Fax Letter 0.12 in.
(3 mm) 0.16 in.
(4 mm)
A4 0.12 in.
(3 mm) 0.04 in.
(1 mm)
Copy Letter 0.12 in.
(3 mm) 0.12 in.
(3 mm)
A4 0.12 in.
(3 mm) 0.12 in.
(3 mm)
Scan Letter 0.12 in.
(3 mm) 0.12 in.
(3 mm)
A4 0.12 in.
(3 mm) 0 in.
(0 mm)
3 4
1
2
