38 Chapter 2: Hardware information
13. ATX Power Connectors (20-pin ATXPWR, 4-pin 12V EZ_PLUG, 4-
pin ATX12V)
These connectors are intended for an ATX 12V power supply. The plugs
from the power supply are designed to fit these connectors in only one
orientation. Find the proper orientation and push down firmly until the
connectors completely fit. In addition to the 20-pin ATXPWR connector,
this motherboard requires that you connect the 4-pin ATX +12V power
plug to provide sufficient power to the CPU.
Make sure that your ATX 12V power supply can provide at least 8A on
the +12V lead and at least 1A on the +5-volt standby lead (+5VSB).
The minimum recommended wattage is 230W, or 300W for a fully
configured system. The system may become unstable and may
experience difficulty powering up if the power supply is inadequate.
P4T533
®

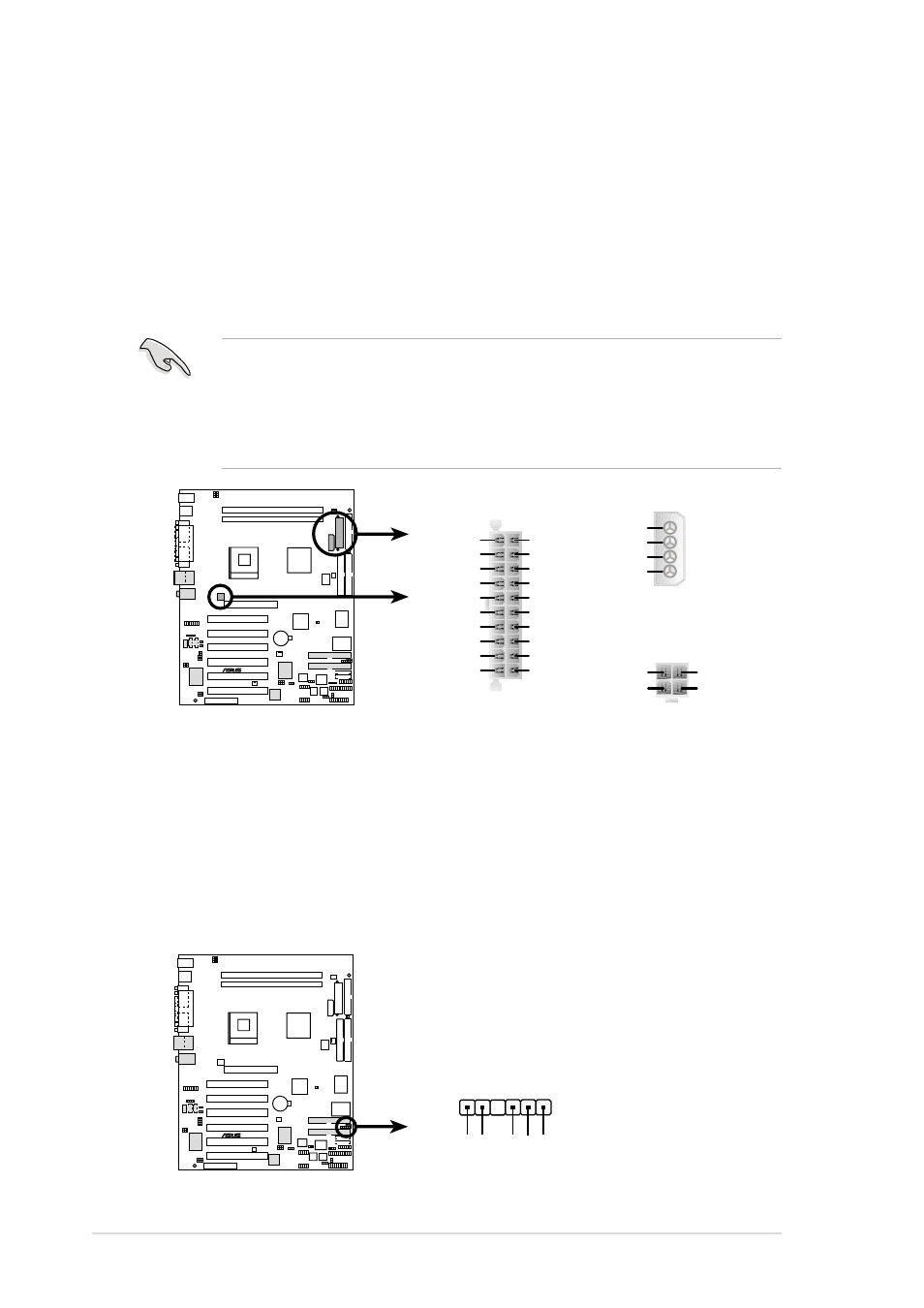

P4T533 ATX & Auxiliary Power Connectors
ATXPWR
ATX12V
EZ_PLUG
+3.3VDC
-12.0VDC
GND
PS_ON#
GND
GND
GND
-5.0VDC
+5.0VDC
+5.0VDC
PWR_OK
+12.0VDC
+3.3VDC
+3.3VDC
GND
+5.0VDC
GND
+5.0VDC
GND
+5VSB
+12V
GND
NC
GND
+12V DC
GND
+12V DC
GND
P4T533
®
P4T533 SMBus Connector
SMB
1
SMBCLK
Ground
SMBDA
T
A
+3V
FLOA
TING
14. SMBus Connector (6-1 pin SMB)
This connector supports SMBus (System Management Bus) devices. SMBus
devices communicate by means of the SMBus with an SMBus host and/or
other SMBus devices. SMBus is a multi-device bus that permits multiple
chips to connect to the same bus and enable each one to act as a master by
initiating data transfer.
