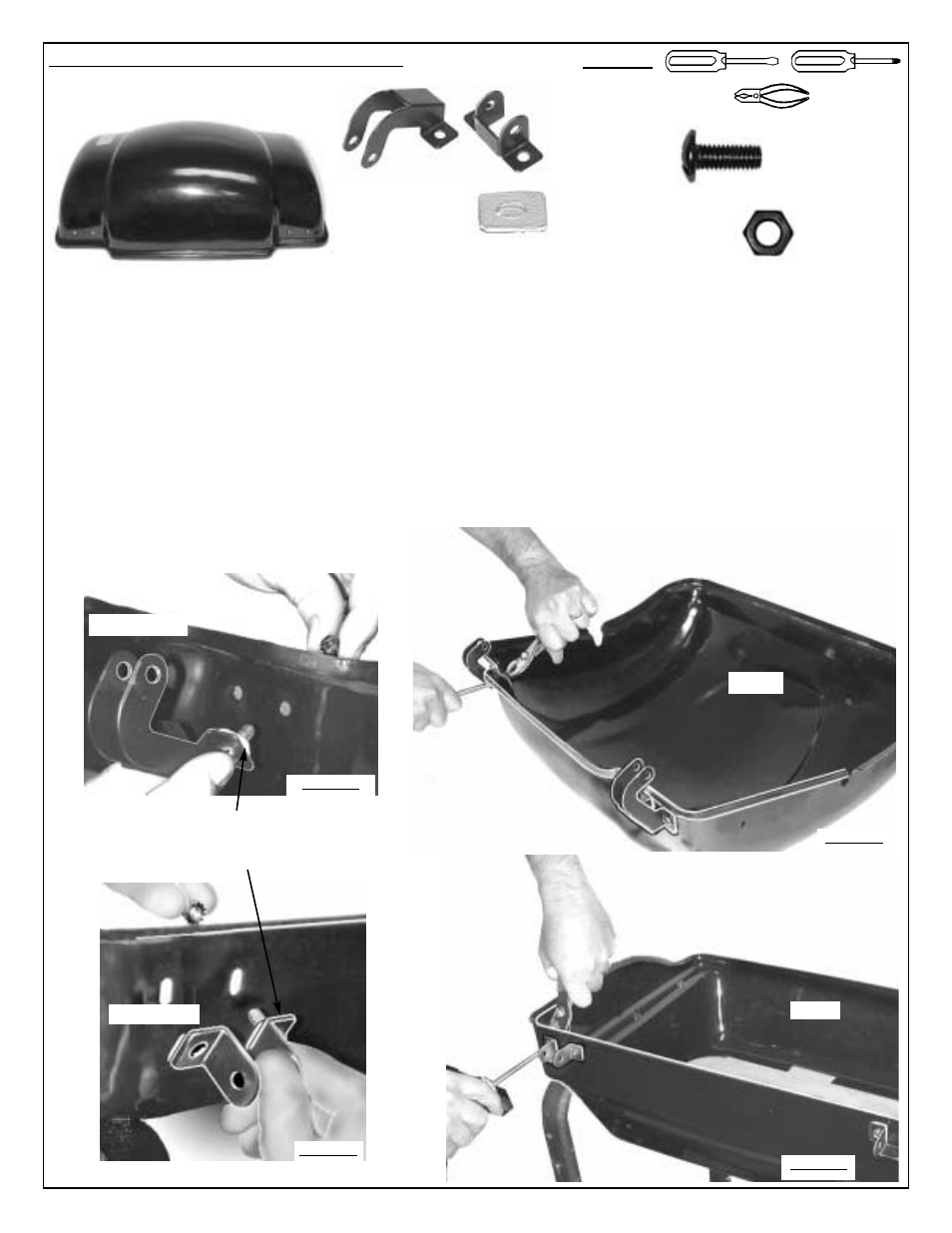

STEP - 12 Mounting Hood/ Bowl Hinges
•Insert M6 x 15mm Bolt through Hood Hinge and Hinge Pad and into hole in back side of Grill Hood
as shown. Secure with 6M Nut. (See Photos 1 & 2 below) Repeat for remaining holes to secure two
Hood Hinges.
•Insert M6 x 15mm Bolt through Bowl Hinge and Hinge Pad and into hole in back side of Grill Bowl
as shown. Secure with 6M Nut. (See Photos 3 & 4 below) Repeat for remaining holes to secure two
Bowl Hinges.
NOTE: DO NOT Overtighten mounting screws. You could crack the porcelain grill coating.
(ITEM 32)
HOOD
(ITEM 30)
BOWL HINGE
2 pcs
(ITEM 31)
HINGE PAD
8 pcs
(ITEM 8)
BOLT, M6 X 15
8 pcs
(ITEM 9)
NUT 6M
8 pcs
(ITEM 33)
HOOD HINGE
2 pcs
TOOLS:
Bowl
Hood
Hinge Pads go
between hinge and
Bowl or Hood
Hood Hinge
Bowl Hinge
Photo 1
Photo 2
Photo 3
Photo 4
