MICRO Series Water Temperature Control Units

!

CAUTION

If a non-relieving device such as a regulator, ball valve,

or check valve is installed on the WATER IN line,

you MUST install an expansion tank

of at least ½ gallon (about 2 liters) capacity.

Failure to do so can result in system overpressure from thermal expansion.

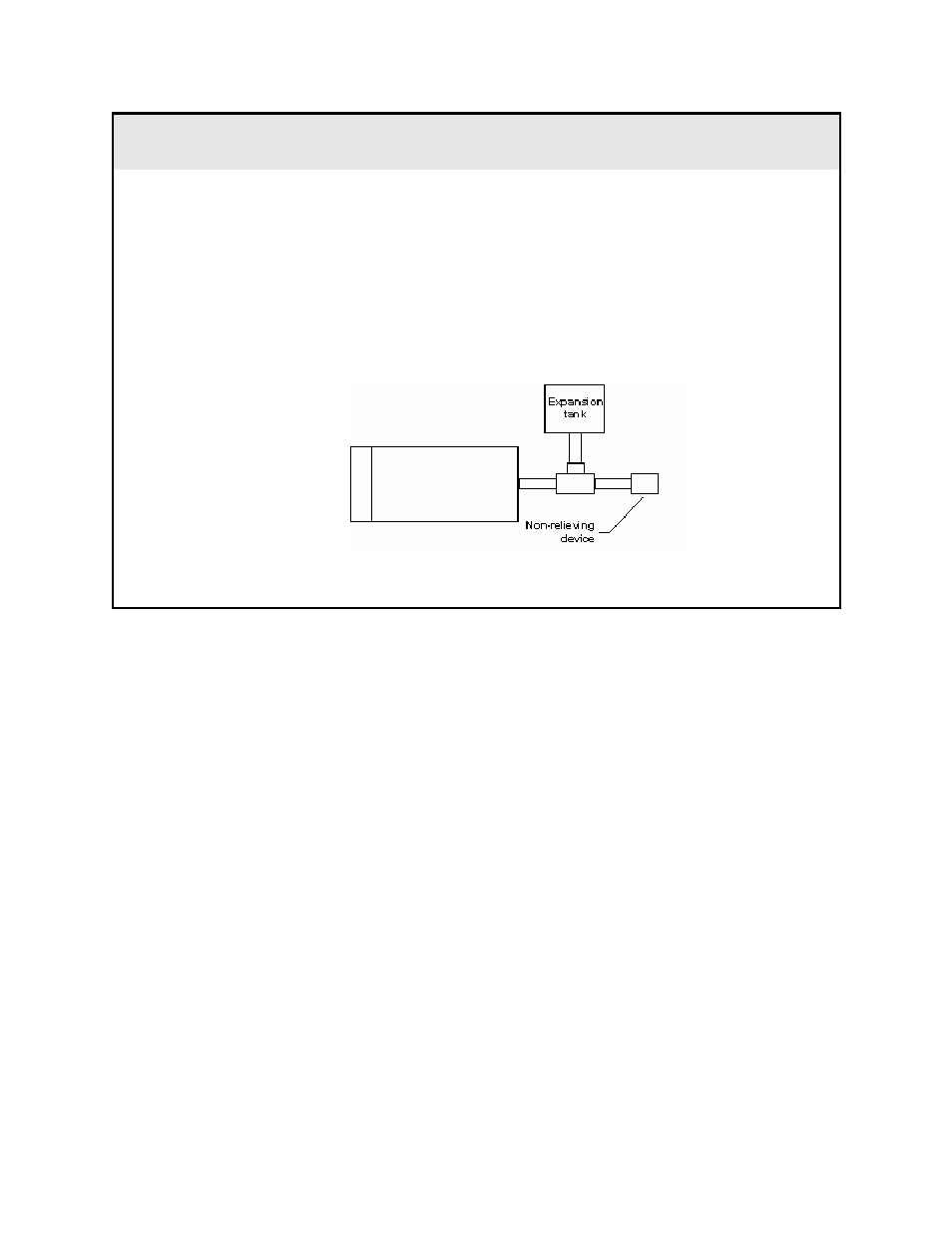

Install the tank configured as shown below:

Check the expansion tank frequently to make sure it is not flooded.

Water Out — ¾” NPT

The cooling water return outlet leading back to the cooling tower, chiller, or
drain.

Net supply pressure must be between 25 psig and 75 psig (172.38 kPa/1.72 bars
and 517.13 kPa/ 5.17 bars). Net supply below 15 psig (103.43 kPa/1.03 bars)
may allow water to flash to steam, cavitate the impeller, and damage the pump,
which prevents the unit from cooling properly. Operation above 75 psig (517.13
kPa/5.17 bars) may cause premature opening of the relief valve from pump
pressure and pressure surges.
