Setra System Model SRMD User Manual
Page 6
5.0 INSTALL MOUNTING PLATE
After adjusting and verifying the depth of the electrical box relative to the
finish wall (see, Fig. 2), install the mounting plate to the electrical box. Be sure
that the displays are installed right side up. Install the 2 mounting screws to
secure the mounting plate to the electrical box.

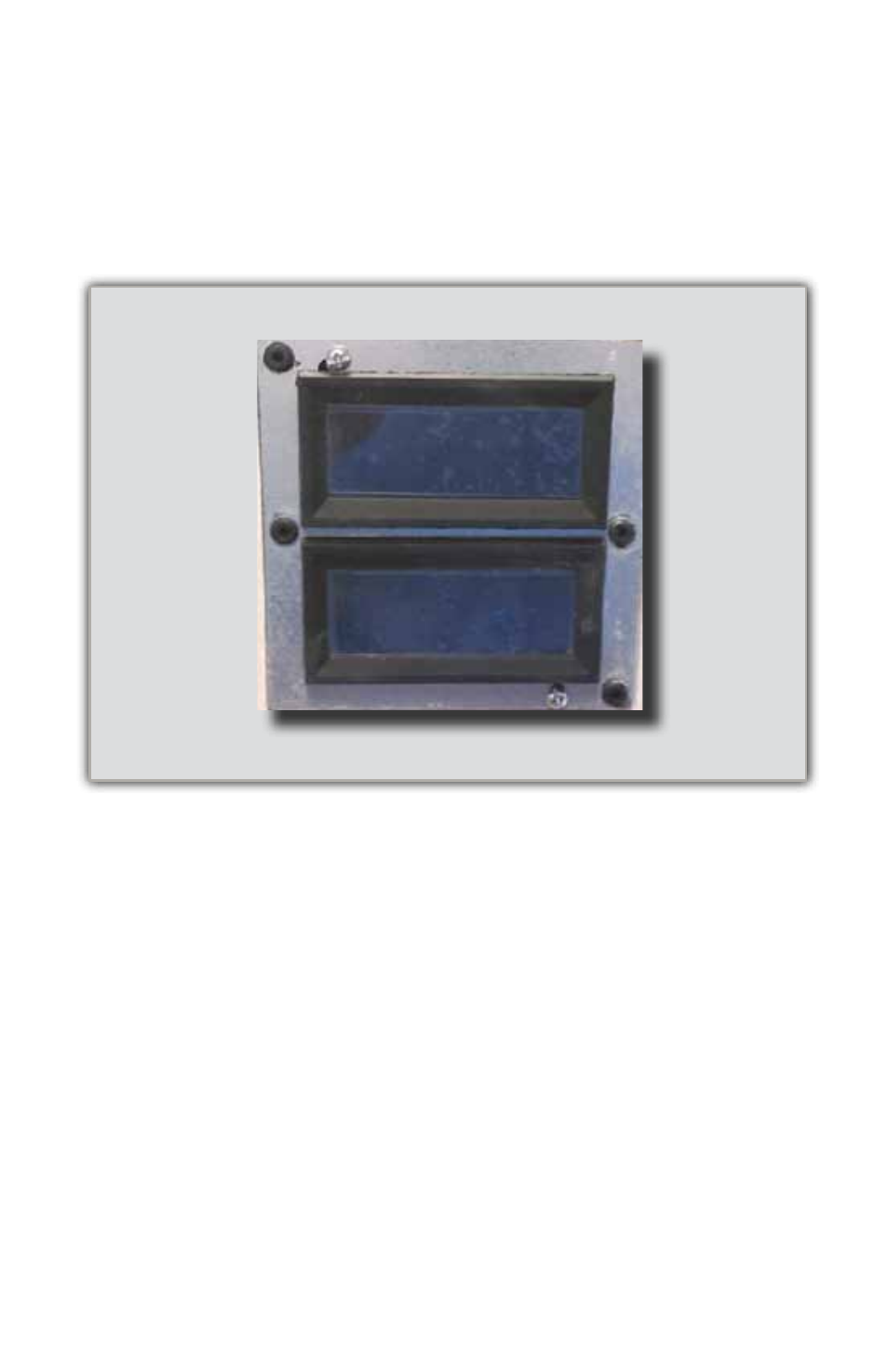

Fig. 5
