o The electronic circuit of the adapter generates a small amount of heat. For this reason, do not place
the adapter directly under the probe. Depending on the application, using a passive cable to
separate the adapter and the HC2-S or HC2-S3 probe is recommended to prevent heat transfer from
the adapter to the probe and obtain the best measurement accuracy.
o See also: Maximum temperature limit for connectors, cables and adapters

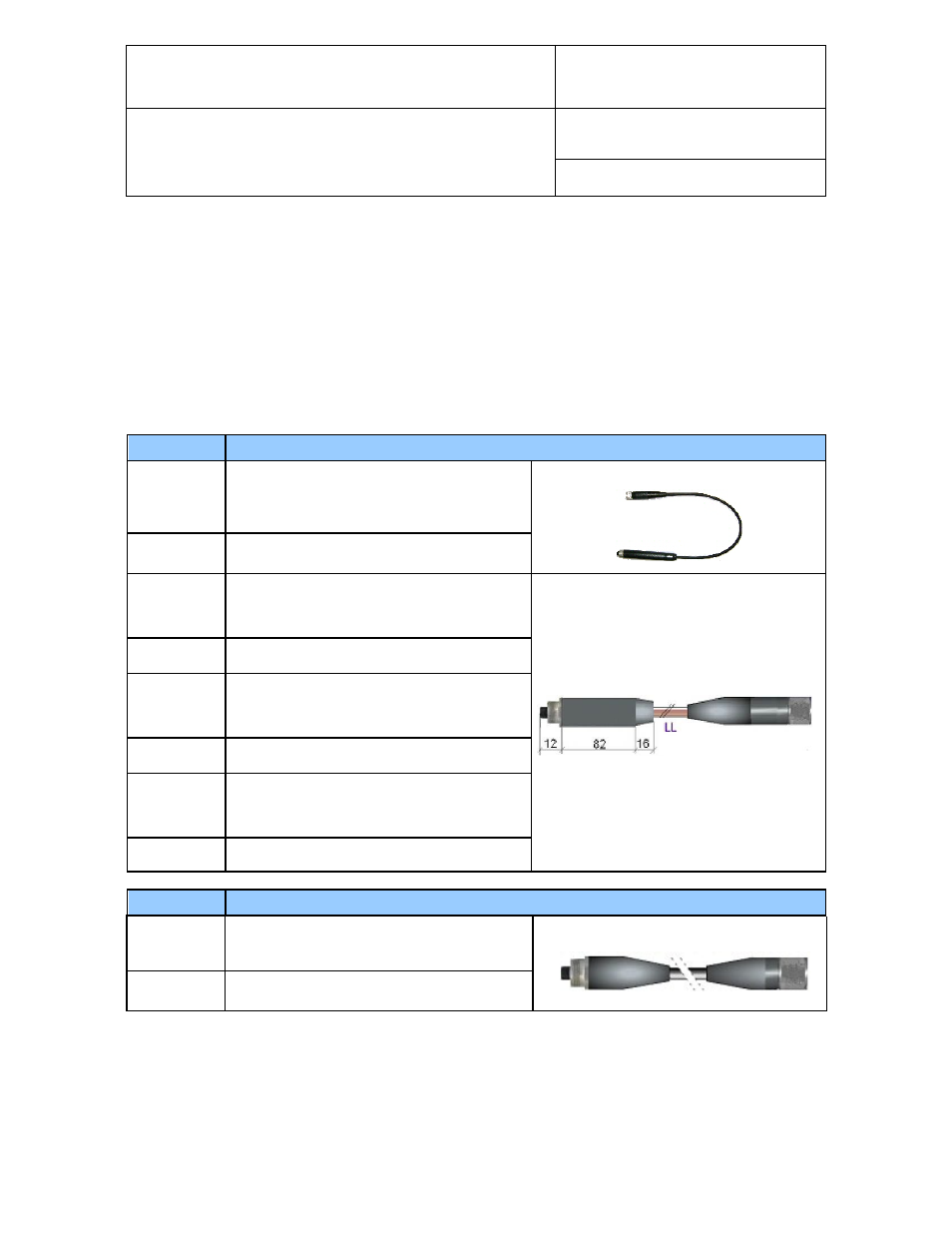

4 Extension cables for the HC2 probes
4.1 Standard passive cables
Order Code Description
E2-F3A
0.3 m (1 ft) extension cable (black) HC2 to
instrument with standard 7-pin female / male
connectors and wall mounting bracket for the
HC2-S probe
E3-F3A
Same as E2-F3A with white cable. Use with
the HC2-S3 probe
E2-01A
1 m (3.2 ft) extension cable (black) HC2 to
instrument with standard 7-pin female / male
connectors. Barrel length 82 mm (3.2”)
E3-01A Same as E2-01A with white cable
E2-02A
2 m (6.5 ft) extension cable (black) HC2 to
instrument with standard 7-pin female / male
connectors
E3-02A Same as E2-02A with white cable
E2-05A
5 m (16.4 ft) extension cable (black) HC2 to
instrument with standard 7-pin female / male
connectors
E3-05A Same as E2-05A with white cable
Order Code Description
E2-02AS Same as E2-02A, but with short barrel
E3-02AS Same as E3-02A, but with short barrel
NOTES:
o All white cables use PUR insulation (sunlight resistant)
o See also: Maximum temperature limit for connectors, cables and adapters
