ROTRONIC HC2 - Manual (Page 11)

E-M-HC2-accessories_24
Rotronic AG
Bassersdorf, Switzerland
Document code Unit
Accessories and Parts
for probes, indicators and transmitters Instruction Manual
Document Type
Page 11 of 23
Document title
© 2009-2010; Rotronic AG E-M-HC2-accessories_23

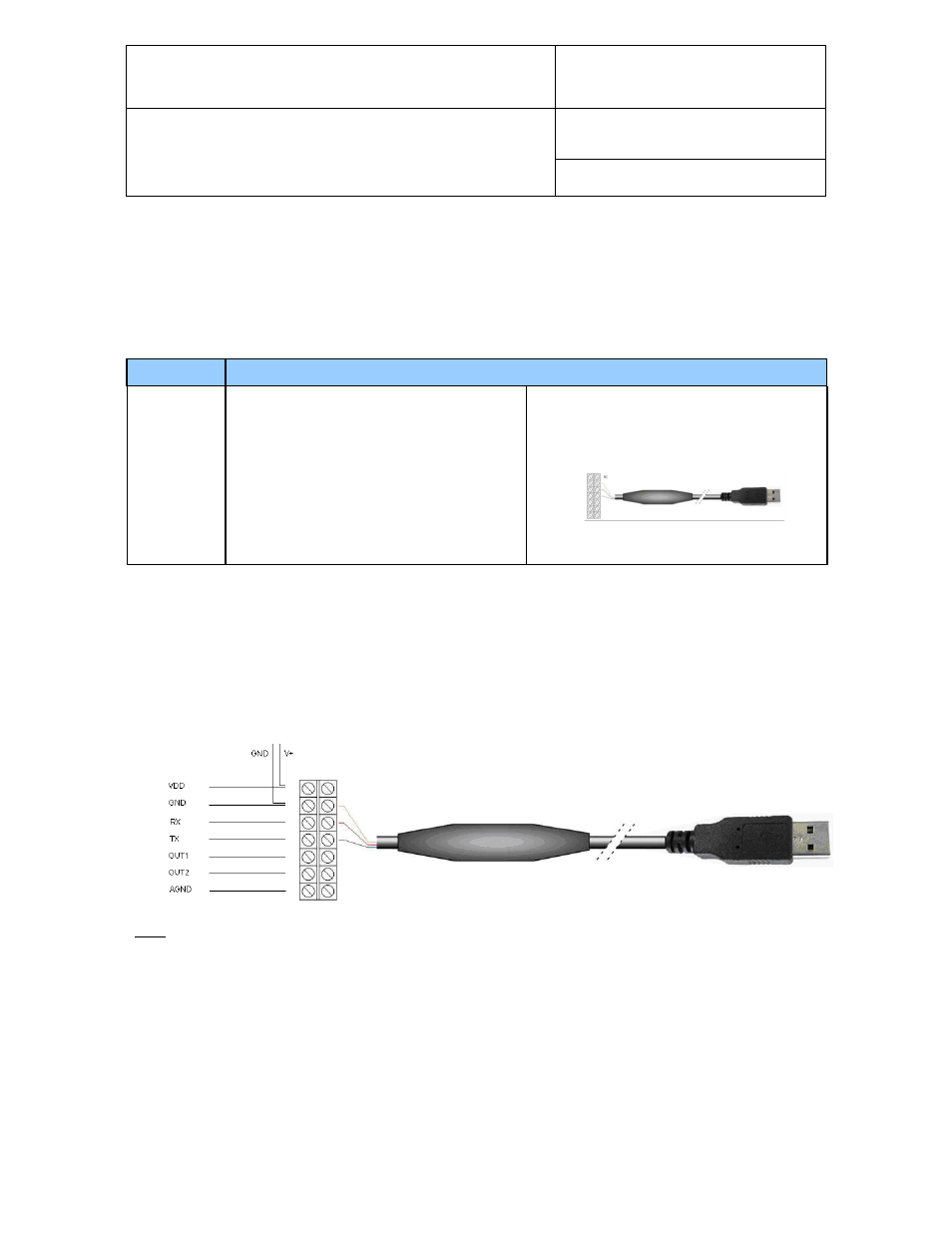

6 Digital interface adapter for the HC2-S3C0 probe
6.1 USB adapter
Order Code Description
AC3001-XX
UART to USB adapter cable
Connects HC2-S3C0 probe to PC running
HW4 (this cable is supplied with a terminal
block which allows connecting the probe)
Power for the adapter electronics is provided
by USB port
Power to the probe must be supplied
separately
IMPORTANT:
o
Prior to using cable AC3001-XX, the ROTRONIC USB driver must be installed on the PC. Both the driver
and the installation instructions (document E-M-HW4v3-Main) are located on the HW4 CD.
Note
: the maximum cable length for transmitting the digital signal to and from the probe UART interface
(RX and TX) is 5 meters.
Separate power supply for probe
