Specifications

Temperature limits

-40…85°C

Built-in resistor for terminating main data line

240 Ohm, can be connected or disconnected with a
jumper

Connection type

T2 or T3

7.3.1

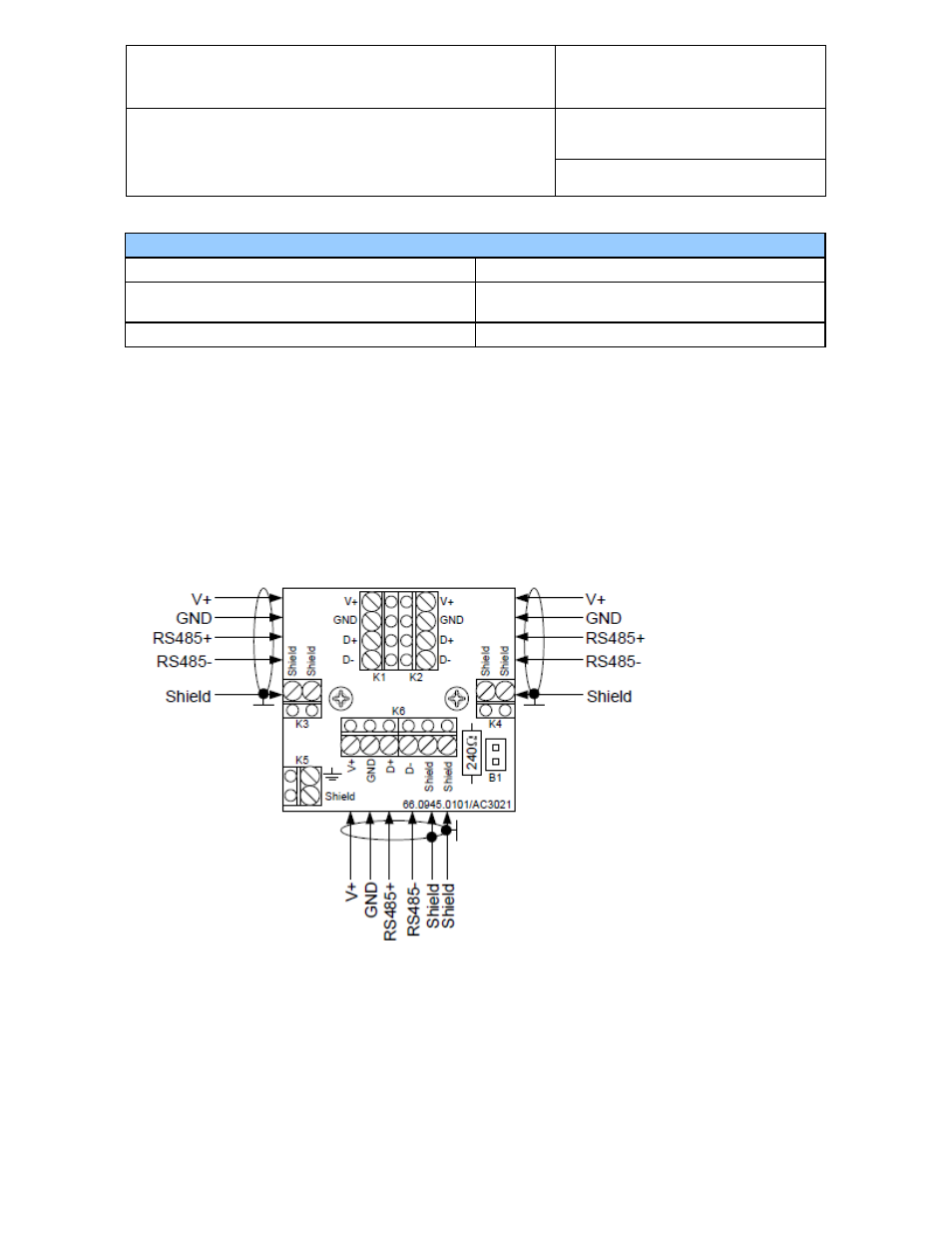

Principle diagram

Junction box AC3021 allows the following connections:

D +: TX+ / RX+ (RS-485 bidirectional)
D - : TX- / RX- (RS-485 bidirectional)
V + : Supply voltage (+) via RS-485 data line
GND: Supply voltage (-) via RS-485 data line
Shield: RS-485 data line shield
