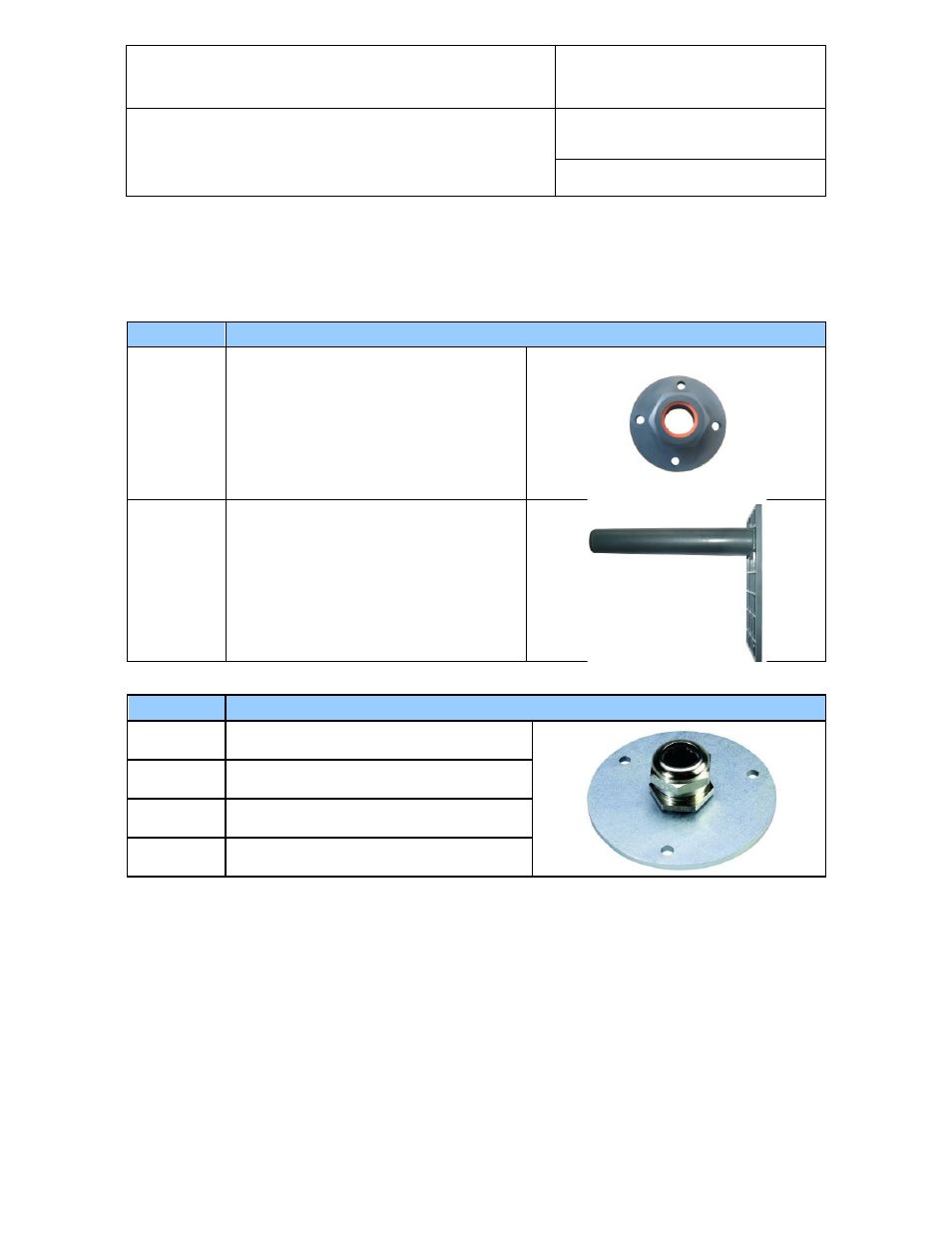

8 Mounting hardware
8.1 Mounting hardware for through-wall probe installation
Order Code Description
AC5005
Mounting flange with compression fitting for
(15 mm / 0.6” diameter probe).
Use for though wall installation of the HF4
type D
Maximum temperature 100 °C (212°F)
AC5001
Sleeve for adapting a 15 mm / 0.6” diameter
probe to a 25 mm / 1.0 “ diameter through-
wall mounting hole (HF42 and HF43 type D,
vertical mounting position)
Facilitates the replacement of older products
with a 25 mm probe diameter
Order Code Description
AC1303-M
Compression fitting for 15 mm (1.0”) diameter
probes. Maximum temperature 200 °C (392°F)
AC1304-M
Compression fitting for 25 mm (0.6”) diameter
probes. Maximum temperature 200 °C (392°F)
AC1305
Flange for AC1303-M – nickel coated steel
Diameter: 80 mm (3.1”)
AC1306
Flange for AC1304-M – nickel coated steel
Diameter: 80 mm (3.1”)
