Page 46
Chapter 3: Operations 35
4.
Choose Appliance Information. The Appliance Information Menu will appear.

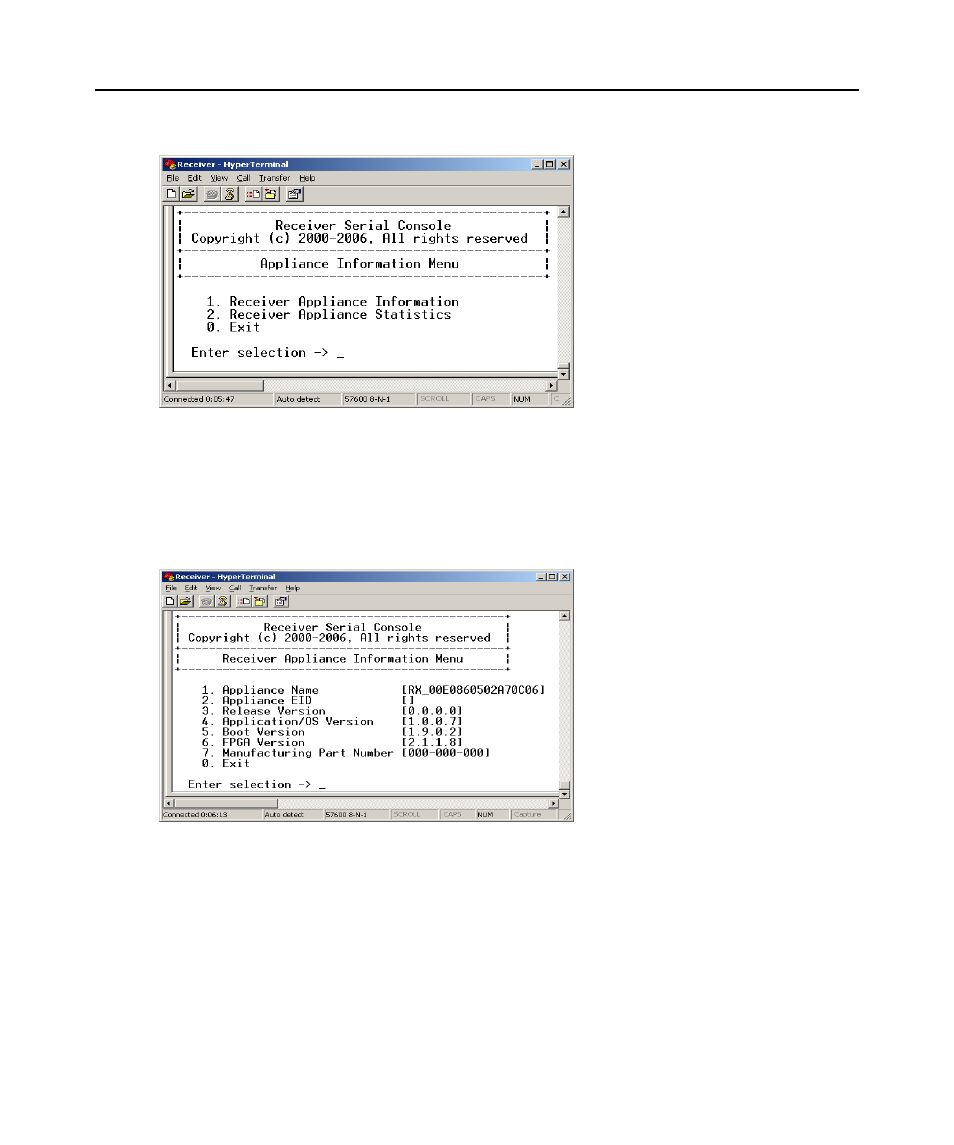

Figure 3.23: Appliance Information Menu
5.
Choose Receiver Appliance Information. The Receiver Appliance Information Menu
will appear.
The Receiver Appliance Information Menu screen contains the following information: Receiver
name; EID number; release version; application; boot and FPGA firmware version numbers; and
the manufacturing part number. All values are read-only.
Figure 3.24: Receiver Appliance Information Menu
To view Transmitter system information:
1.
Activate the serial menu as described in Accessing the serial menu on page 14.
2.
Choose option 2 to access the Transmitter menu. If the password option is enabled, you will be
prompted for a password. See Authentication on page 24.
3.
Type the password and press
Enter
. The Transmitter Main Menu will appear.
4.
Choose Appliance Information. The Appliance Information Menu will appear.
