Chapter 3: Operations 17
To configure network settings for the Transmitter:
1.
Activate the serial menu as described in Accessing the serial menu on page 14.
2.
Choose option 2 to access the Transmitter menu. If the password option is enabled, you will be
prompted for a password. See Authentication on page 24.
3.
Type the password and press
Enter
. The Transmitter Main Menu will appear.

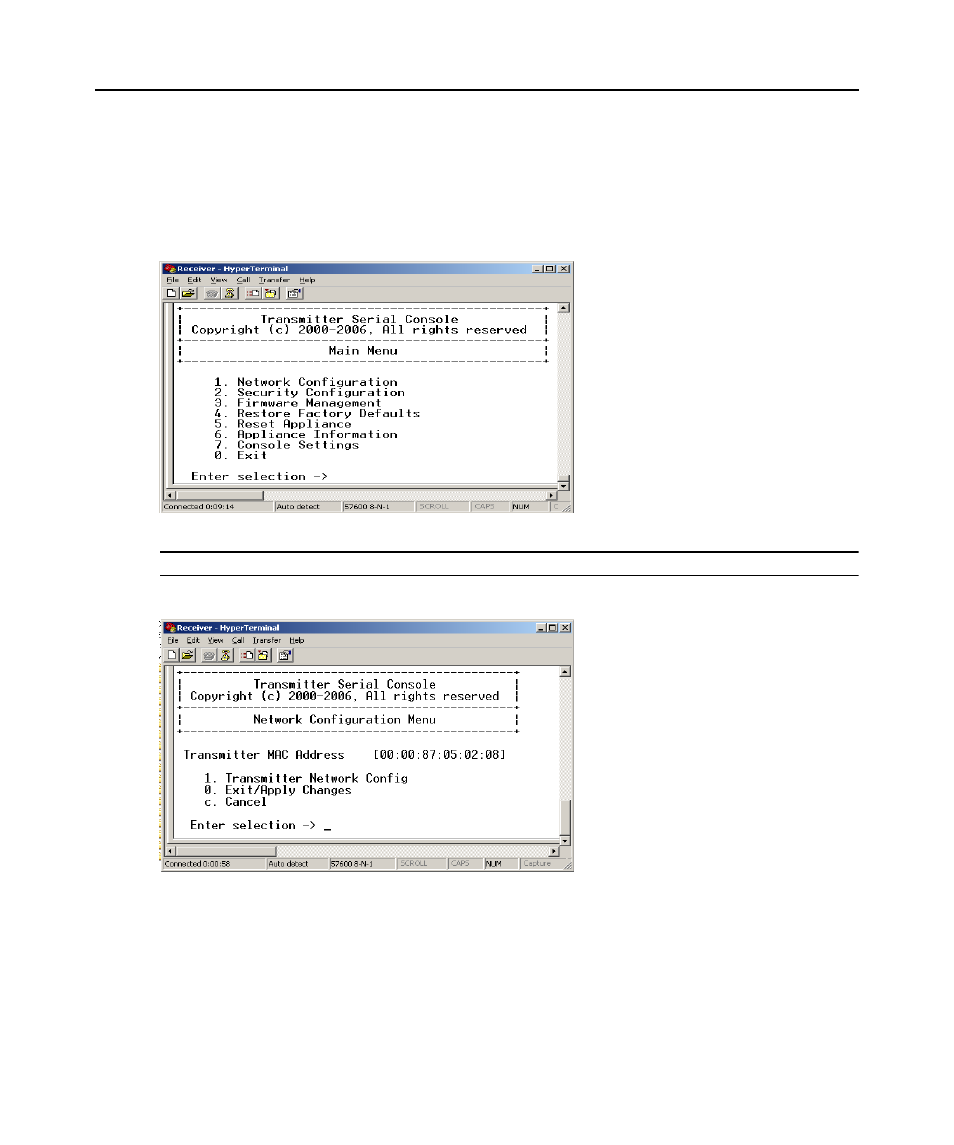

Figure 3.3: Transmitter Main Menu
NOTE: The Reset
option in the Transmitter Main Menu applies only to network settings.
4.
Choose Network Configuration. The Network Configuration Menu will appear.
Figure 3.4: Network Configuration Menu
