Page 19
8 Avocent Emerge ECMS2000U Extender Installer/User Guide
.

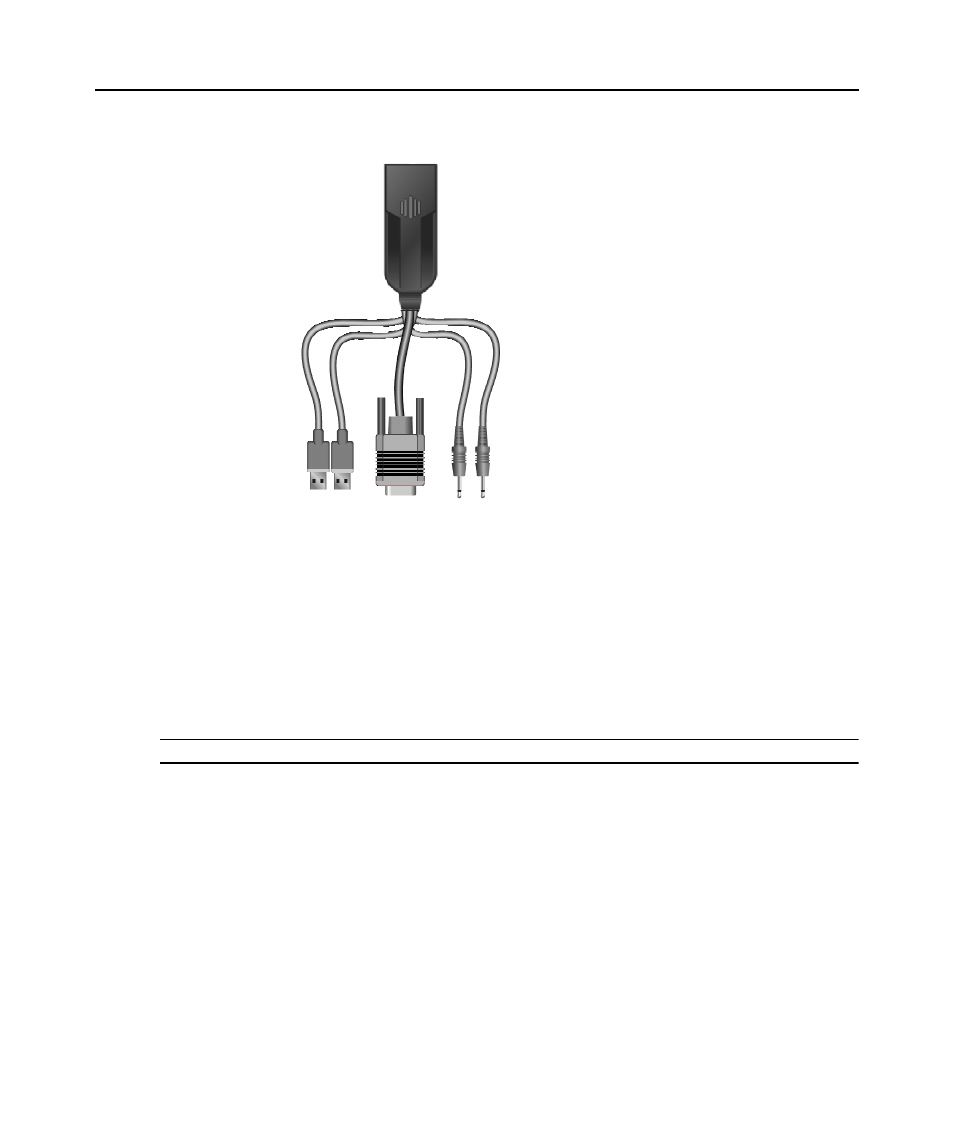

Figure 2.2: Computer Access Node
To connect the User Access Node:
1.
Connect your keyboard, monitor, mouse and other peripherals cables to the appropriately
labeled ports on the back of the User Access Node.
2.
Connect the UTP cable to the RJ-45 port on the back of the User Access Node.
3.
Power up the User Access Node. A connection will be automatically established with the
remote computer.
NOTE: VGA monitors can be connected to the User Access Node by using a DVI-I to VGA adaptor.
Video
USB
Mic
Line out
