MOUNTING METHOD
Step 1: From the front of the panel, slide the controller housing through
the cut out. The housing gasket should be against the housing
flange before installing.
Step 2: Insert the mounting brackets into the mounting grooves on the
top and bottom of the controller (4C, 8C, and 16C).
Step 3: Push the mounting brackets forward until the bracket stops at
the panel wall.
Step 4: Insert and tighten the screws on the bracket to secure the
controller in place. (The screw torque should be 0.8 kgf-cm).

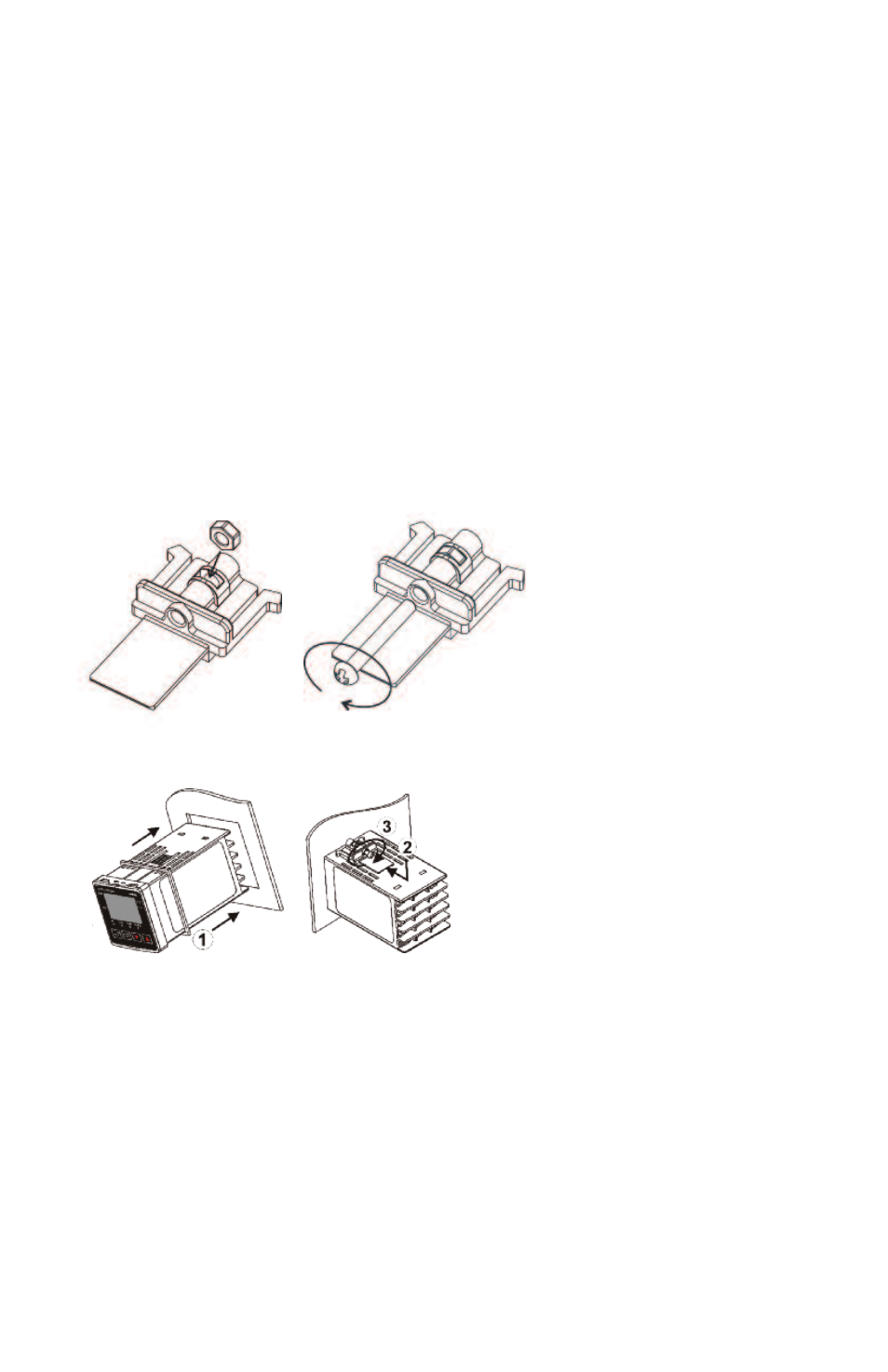

Mounting Bracket Installation
4C/8C/16C Mounting Method
