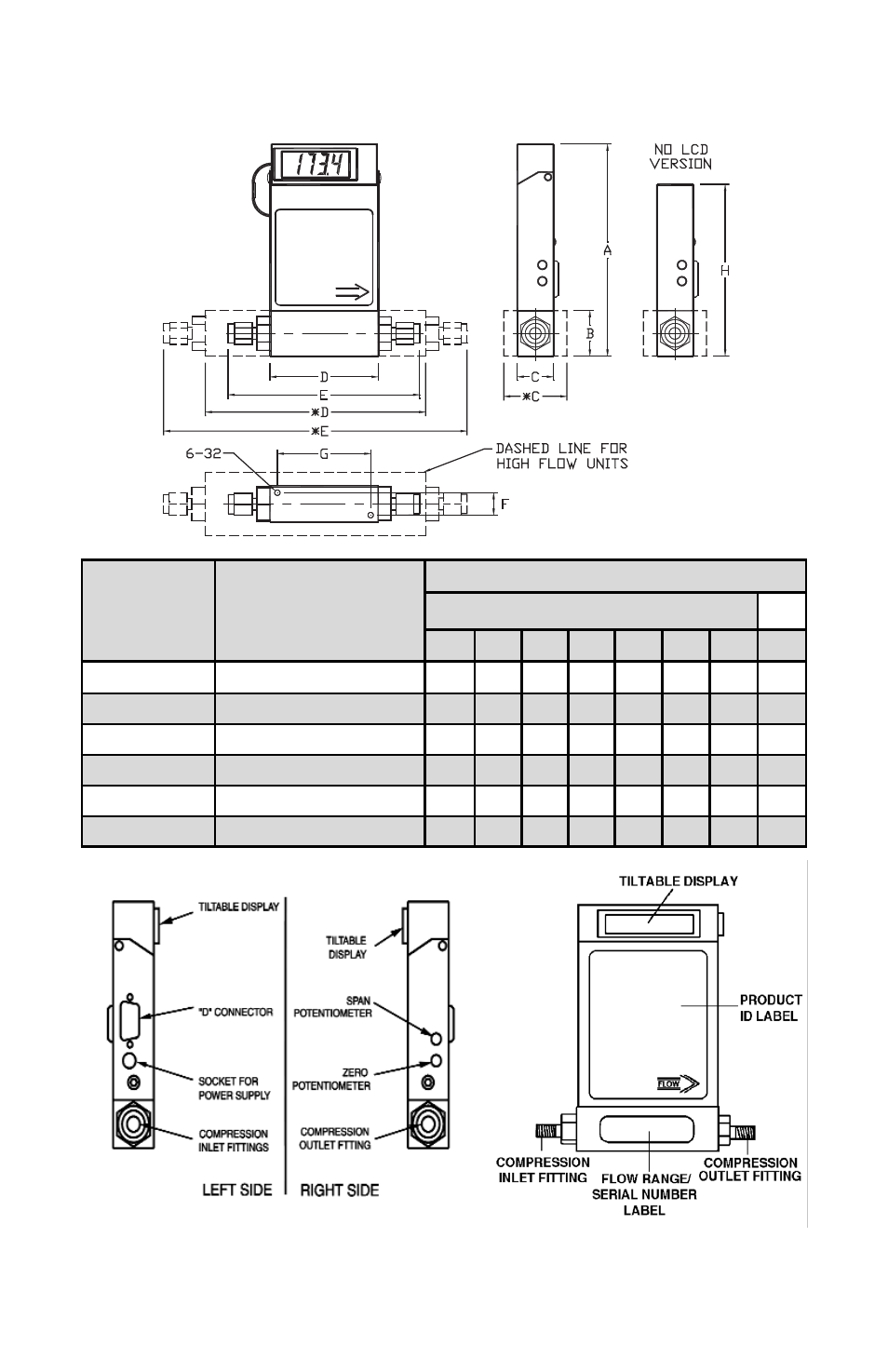

APPENDIX 3

DIMENSIONAL DRAWINGS

NOTE: Dwyer reserves the right to change designs and dimensions at its sole discretion at any time
without notice. For certified dimensions please contact Dwyer.

MODEL

CONNECTION

Compression Fitting

(except model GFM 1145)

DIMENSION (inch)

LCD VERSION

NO LCD

C/*C D/*D E/*E

GFM 1101 to 1109 1/4" Tube Outside Diameter

5.60

1.00 1.00 3.00 5.02 0.69 2.69 4.50

GFM 1111 to 1133 1/4" Tube Outside Diameter

5.98

1.37 1.25 4.13 6.15 0.69 2.69 4.88

GFM 1142

3/8" Tube Outside Diameter

5.98

1.37 1.25 4.13 6.27 0.69 2.69 4.88

GFM 1143

3/8" Tube Outside Diameter

6.60

2.00 1.75 6.69 8.83 0.99 4.69 5.50

GFM 1144

1/2" Tube Outside Diameter

7.60

3.00 3.00 7.25 9.67 2.250 6.750 6.50

GFM 1145

3/4" NPT Female

8.60

4.00 4.00 7.30

3.000 6.800 7.50
