Badger Meter Vortex Meters - Manual (Page 22)

20 Form No. 09-VRX-UM-00007
C
E
D
A
B
Cord Grip
TERMINAL STRIP
ELECTRONICS MODULE
THREE PIN CONNECTOR
FLOW SENSOR BODY
COVER
CONDUIT ADAPTOR
CORD GRIP

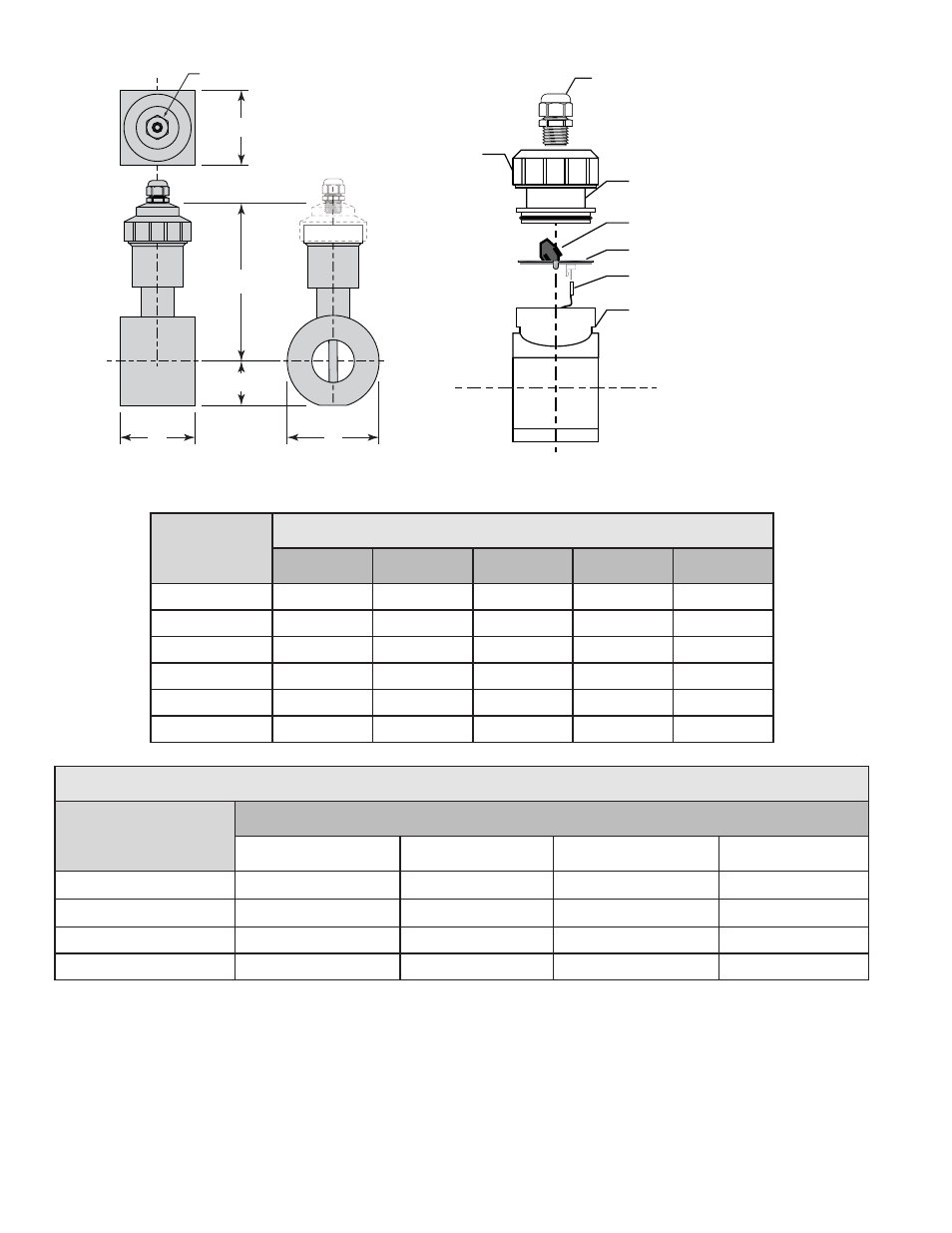

FIGURE 14
Size inches
RVL (Wafer) Dimensions PP/PVC/CPVC/PVDF
A B C D E
½ 5.85 (149) 0.78 (20) 2.03 (52) 1.75 (45) 2.88 (73)
¾ 5.90(150) 0.94 (24) 2.03 (52) 1.75 (45) 2.88 (73)
1 5.69 (145) 1.19 (30) 2.25 (57) 1.75 (45) 2.88 (73)
1½ 6.00 (152) 1.50 (38) 2.63 (67) 1.75 (45) 2.88 (73)
2 6.37 (162) 1.88 (48) 3.22 (82) 1.75 (45) 2.88 (73)
3 6.88 (175) 2.50 (64) 4.25. (108) 1.75 (45) 2.88 (73)
RVL (Wafer) Standard Specifications
Maximum Fluid
Temperature °F (°C)
Maximum Operating Pressure PSIG (KPa)
PVC CPVC Polypropylene PVDF
203 (95) Not Recommended Consult Factory Not Recommended Consult Factory
150 (66) Not Recommended 63 (434) 90 (621) 130 (896)
100 (38) 100 (690) 120 (827) 130 (896) 150 (1034)
70 (21) 150 (1034) 150 (1034) 150 (1034) 150 (1034)
