PFM8 Digital Hydraulic Tester & Dynamometer
OFF ON LOW EMP PRESS PWR
Flo-check
PFM
TM
OPEN LOAD VALVE BEFORE
OPERATING
DO NOT STAND IN FRONT OF
PRESSURE RELIEF DISC VENT
FLASHING LO-BAT?
REPLACE BATTERIES.
INDICATES DISPLAY
OVER RANGE.
U.S. METRIC
AUTO SHUT-OFF 5 MINUTES
WHEN NO FLOW
- H.P., - kW
PRESSURE LOW - EMP
GPM, l/min - F°, C°

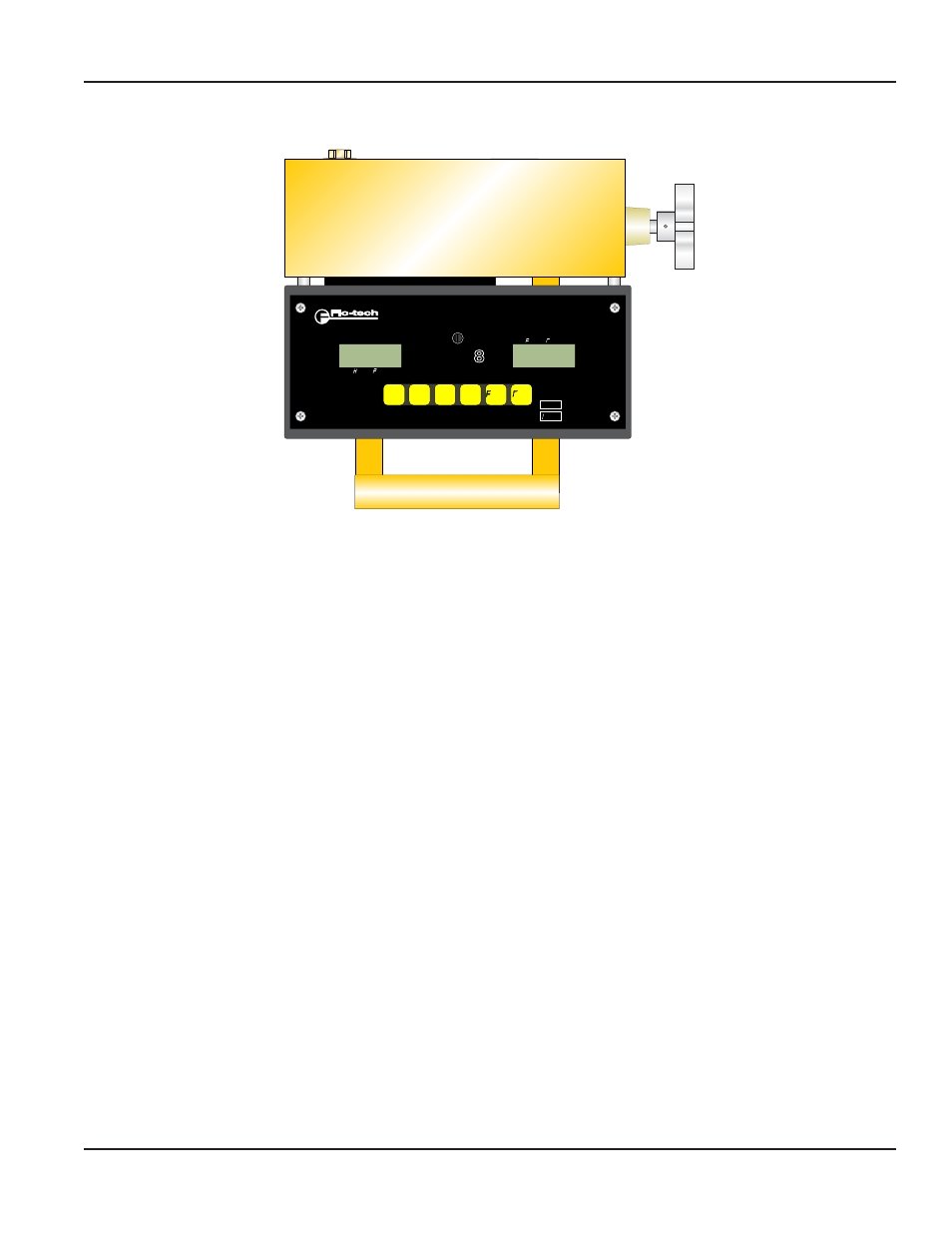

Figure 3: Digital hydraulic tester and dynamometer
Features
• Accuracy of ±1% of full flow range
• 3-1/2 digit LCD displays
• Digital pressure readings
• Membrane switch to select flow, temperature, pressure or power
• Front panel switch to select U .S . or metric readings
• Loading valve with fingertip control of pressure up to 6000 psi (414 Bar)
• Platinum resistive temperature sensor
• Internal over-pressure burst disc protection
Introduction
