Burst Disc Body (1)
Burst Disc (2)
Support Ring (1)

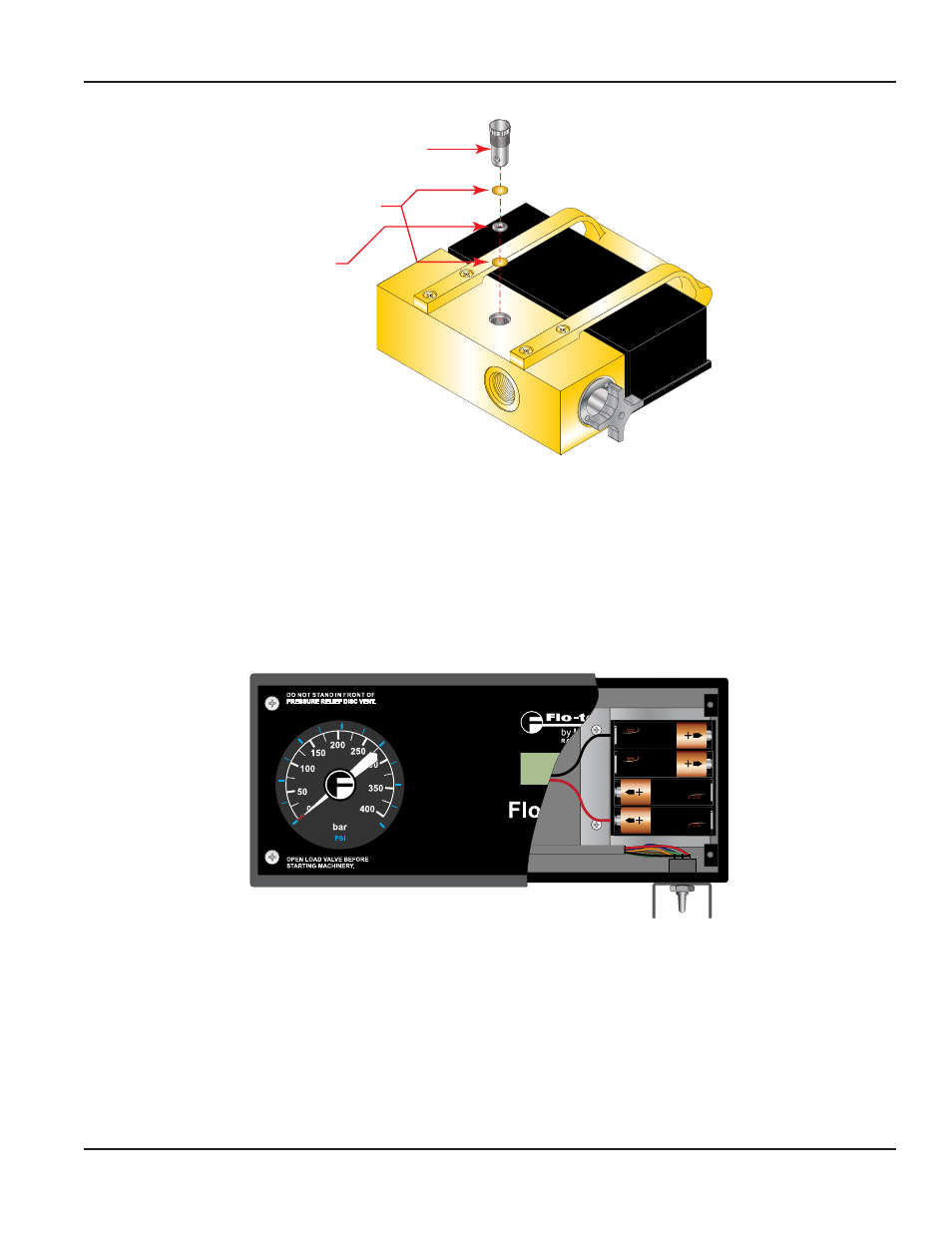

Figure 10: PFM6BD burst discs
Battery Replacement
All PFM testers use four AA size alkaline batteries . These batteries will normally provide approximately 50 hours of service
before a low battery condition is indicated . On the PFM6 and PFM6BD, a LO BAT signal on the display indicates a low battery .
On the PFM8, a flashing colon (:) on the display indicates a low battery . When a low battery has been displayed, immediately
remove discharged batteries from the tester to prevent battery holder corrosion .
To change the batteries, remove the four screws on the cover assembly . Pull the cover slowly upward to clear the internal
components . The batteries are located on the bottom of the case . See Figure 12 . When installing the new batteries, ensure that
they are centered in the holder and making contact at both ends . Replace the cover and secure the four screws .
AA 1.5 VOLTS CAUTION DO NOT CONNECT IMPROPERLY CHANGE OR DISPOSE OF IN FIRE. BATTERY MAY EXPLODE OR LEAK. MADE IN U.S.A.
ALKALINE BATTERY
AA 1.5 VOLTS CAUTION DO NOT CONNECT IMPROPERLY CHANGE OR DISPOSE OF IN FIRE. BATTERY MAY EXPLODE OR LEAK. MADE IN U.S.A.
ALKALINE BATTERY
AA 1.5 VOL TS
CA UTION DO NOT C ONNECT IMPR OPERL Y CHANGE OR DISPOSE OF IN FIRE. BA TTER Y MA Y EXPLODE OR LEAK . MADE IN U .S.A.
ALKALINE BA TTER Y
AA 1.5 VOL TS CA UTION DO NOT C ONNECT IMPR OPERL Y CHANGE OR DISPOSE OF IN FIRE. BA TTER Y MA Y EXPLODE OR LEAK . MADE IN U .S.A.
ALKALINE BA TTER Y
Figure 11: Battery replacement
Maintenance/troubleshooting
