INTRODUCTION
Flo-tech Portable Hydraulic Testers are designed to provide fast diagnostic troubleshooting of hydraulic systems and
components . These compact, self-contained testers feature laboratory accuracy and provide flow, temperature, pressure and
optional power measurements simultaneously from one point .
Flo-tech offers three models, all available in up to five flow ranges and three port sizes .
PFM6 Digital Hydraulic Tester

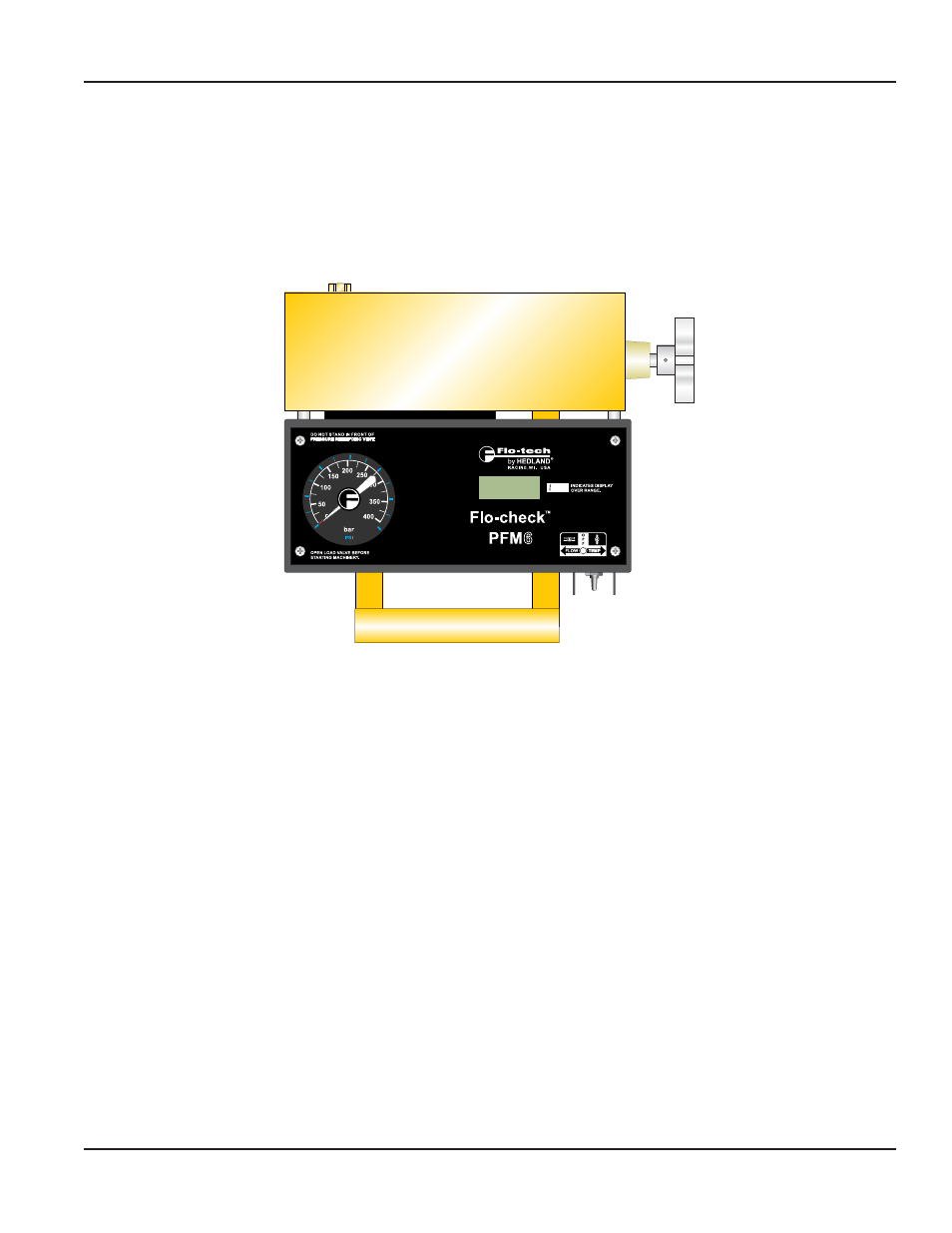

Figure 1: Digital hydraulic tester
Features
• Accuracy of ±1% of full flow range
• 3-1/2 digit LCD display for flow and temperature
• Helical tube pressure gauge
• One toggle switch to control power and select flow and temperature
• Loading valve with fingertip control of pressure up to 6000 psi (414 Bar)
• Platinum resistive temperature sensor
• Internal over-pressure burst disc protection
