Ranger™ Serial Repeater Programmer
Installation and Operation Manual
June 2009
View Log

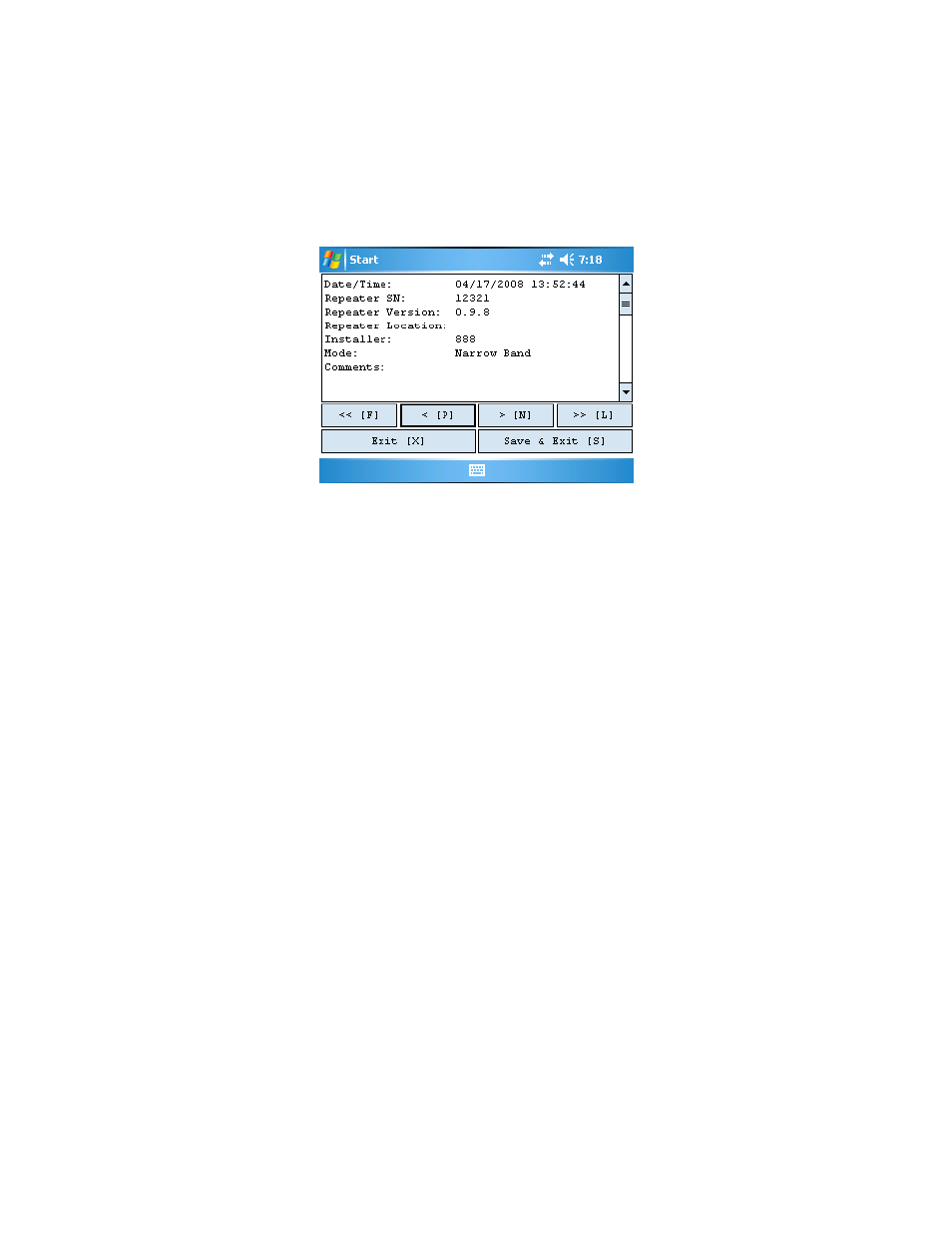

This screen will be displayed when you touch View Log [V] on the Main Menu or press the “V”
key on the keyboard.
The following details will be displayed:
Date/Time—Indicates when the repeater was worked with last;
Repeater SN—Identifies the repeater’s serial number;
Repeater Version—Identifies the software version installed on the repeater;
Repeater Location—Indicates where the repeater is mounted; For ex-ample, “Pole near
driveway at 1234 First Street.”
Installer—Initials of the technician who worked with the repeater;
Mode—Narrow band or frequency hopping; and
Comments—Displays helpful notes.
Button Functions
Touch the << [F] button or press “F” on the keyboard to see the first entry;
Touch the < [P] button or press “P” on the keyboard to see the previous entry;
Touch the > [N] button or press “N” on the keyboard to see the next entry;
Touch the >> [L] button or press “L” on the keyboard to see the last entry;
Touch the Exit [X] button or press “X” on the keyboard to return to the Main Menu; and
Touch the Save & Exit [S] button or press “S” on the keyboard to return to save changes
before returning to the Main Menu.
