Ranger™ Serial Repeater Programmer
Installation and Operation Manual
June 2009
Button Functions
Listen [L]—Touch the button or press “L” on the keyboard to go to the Listen screen—see page
14.
Transmit [T]—Touch the button or press “T” on the keyboard to go to the Transmit screen—see
page 17.
Done [X]—Touch the button or press “X” on the keyboard to return to the Program Repeater
screen.
Listen: Narrow Band or Frequency Hopping
Need to add more description in regard to which option should be selected by the customer –
narrow band or FHSS.

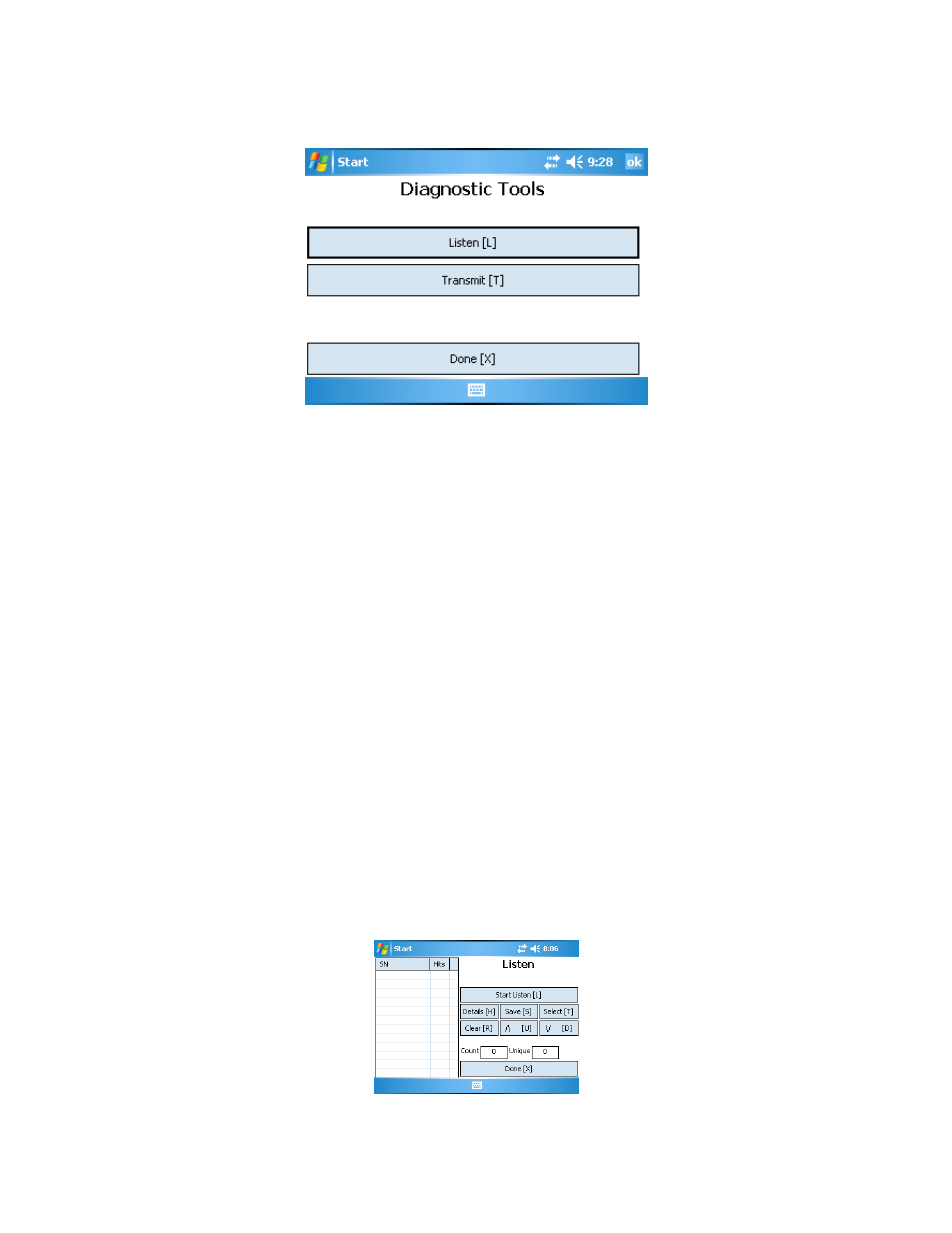

When you touch Listen [L] on the Diagnostic Tools screen or press “L” on the keyboard, you will
see one of the Listen screens below depending on whether you are in narrow band mode or
frequency hopping mode:
Narrow Band
