Trimble
®
Ranger™ Serial Repeater Programmer
Installation and Operation Manual
June 2009

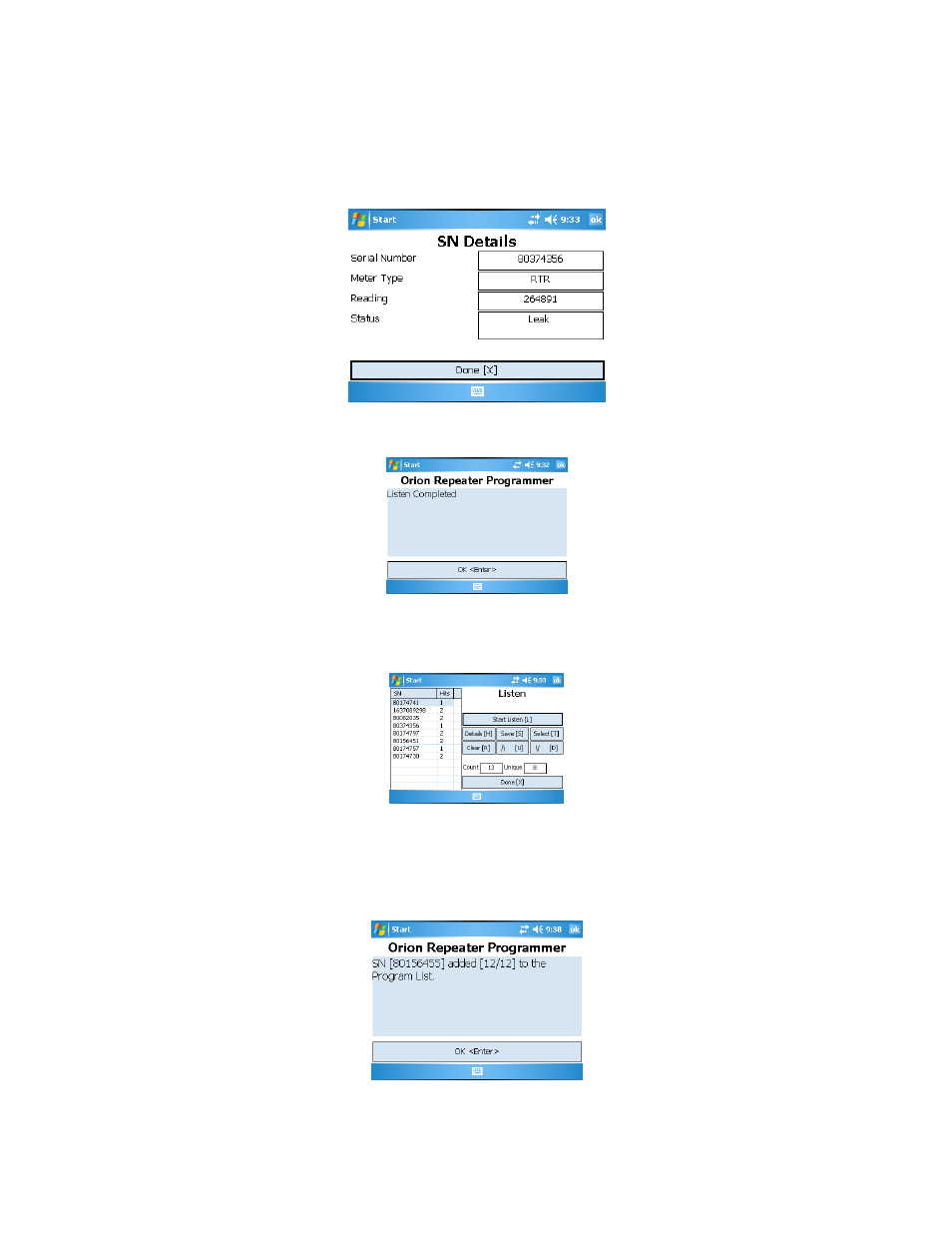

If Details is touched on the Listen screen or “H” pressed on the keyboard, the following will
appear:
When the Listen process is complete or aborted, you will see:
Touching OK or pressing “Enter” on the keyboard brings up:
Highlighting a number in the SN column and touching Select [T] or pressing the “T” key will
produce a screen such as:
16
