Ranger™ Serial Repeater Programmer
Installation and Operation Manual
June 2009
Transmitting

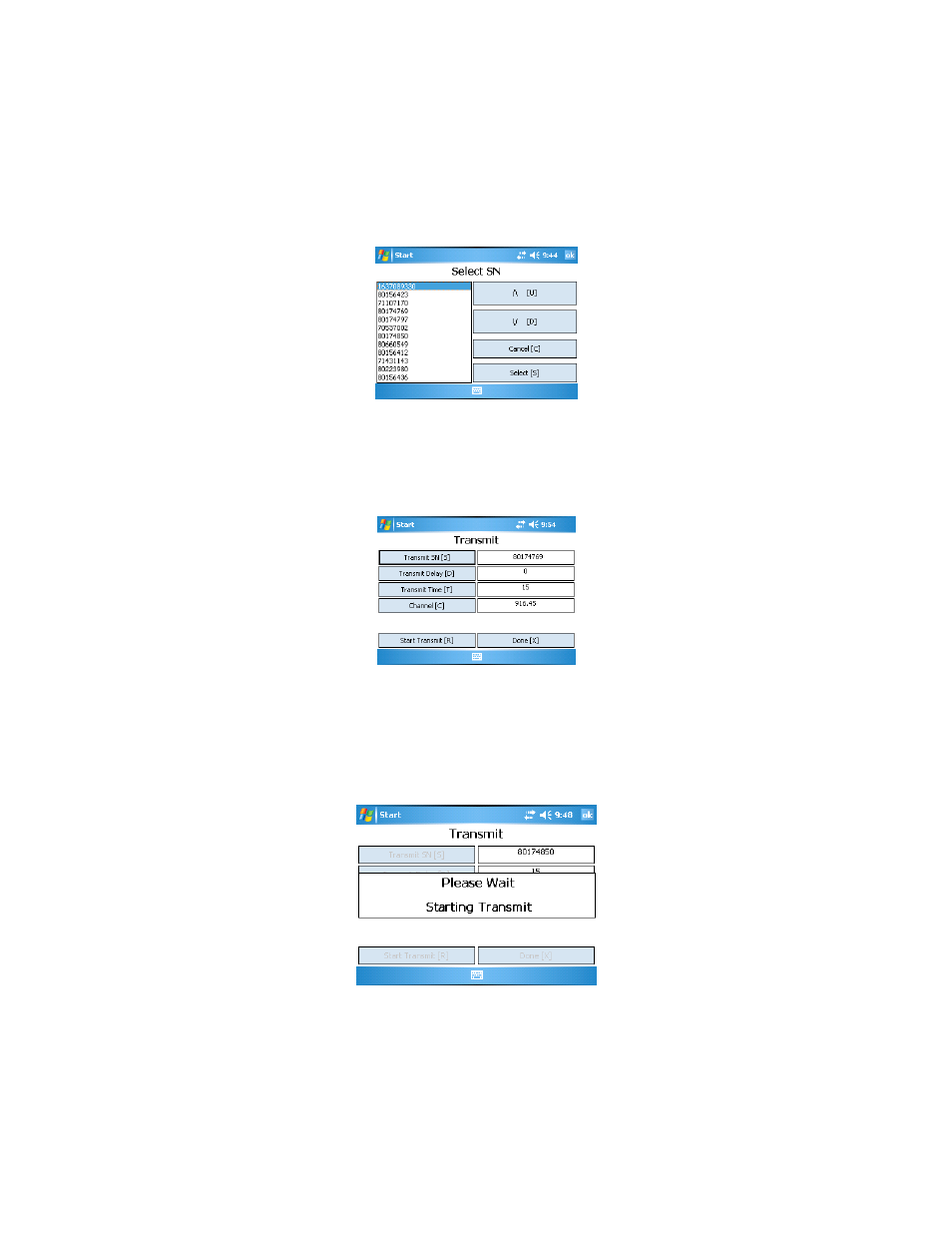

Touching Transmit SN [S] on the Transmit screen or pressing the “S” keyboard will produce the
following:
When an SN is highlighted and select touched on the above screen or “S” is pressed on the
keyboard, the Transmit SN [S] field on the Transmit Screen will be populated:
After inputting the settings described under button functions on page 18, including establishing
the transmit delay and transmit time, and touching Transmit or pressing “T” on the keyboard, the
following screen will appear momentarily:
