Trimble
®
Ranger™ Serial Repeater Programmer
Installation and Operation Manual
June 2009

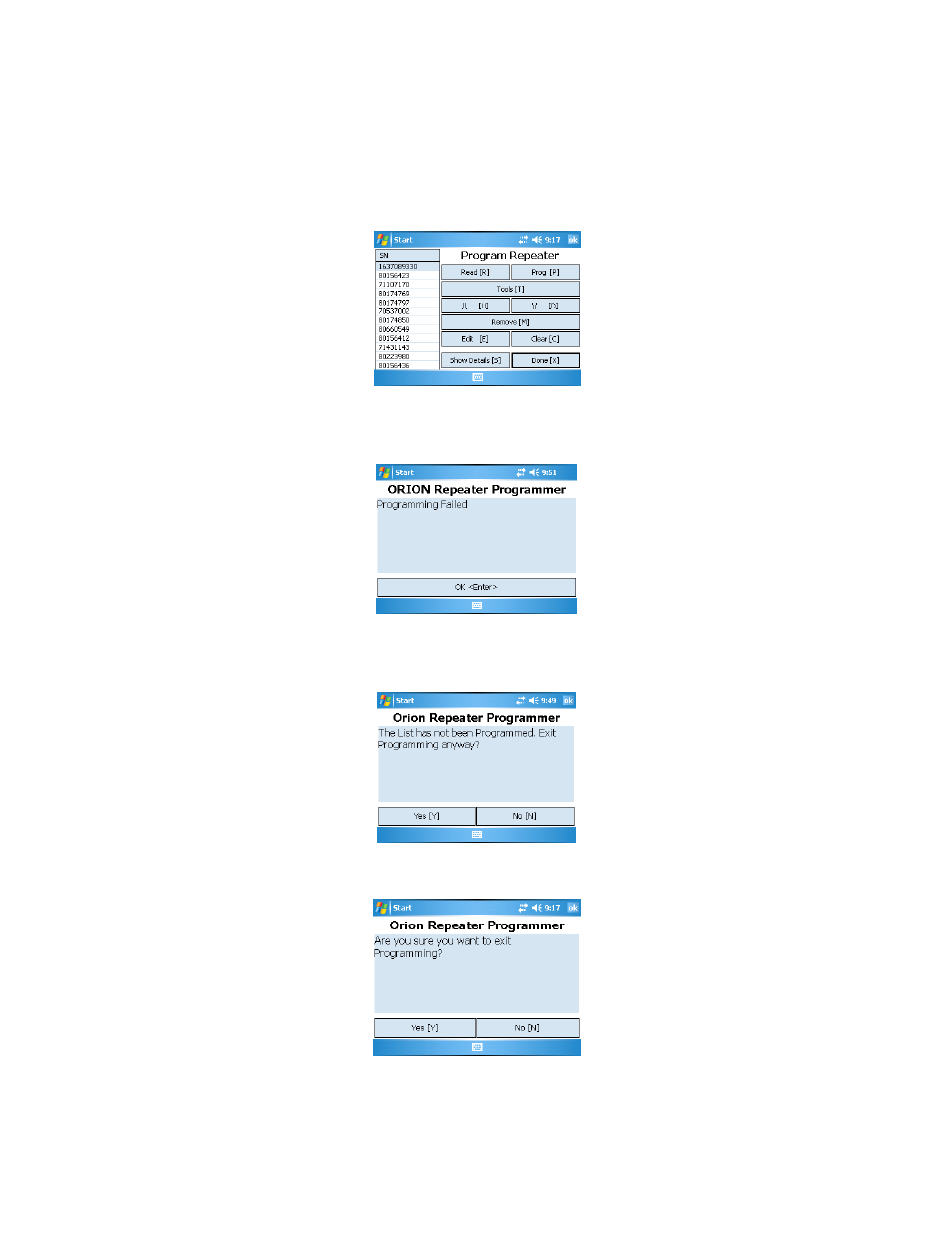

After correcting a serial number or adding a new serial number, touch Done [X] or press “X” on
the keyboard. You will be returned to the Program Repeater screen where the changes you
have made will appear in the SN column:
If programming fails you will go to the screen below. Touch “OK” or press Enter to return to the
Program Repeater screen on page 7.
If you touch OK on the Repeater Programmer screen or press Enter on the keyboard,
and no changes have been made, you will see:
If Yes is touched or “Y” on the keyboard is pressed, the screen below will appear:
11
