Page 8: Heat pump model
8
EcoChill Installation Manual 7481930_v1.6.0_08_2013
ECL-ECLH 020-202
EN
4.

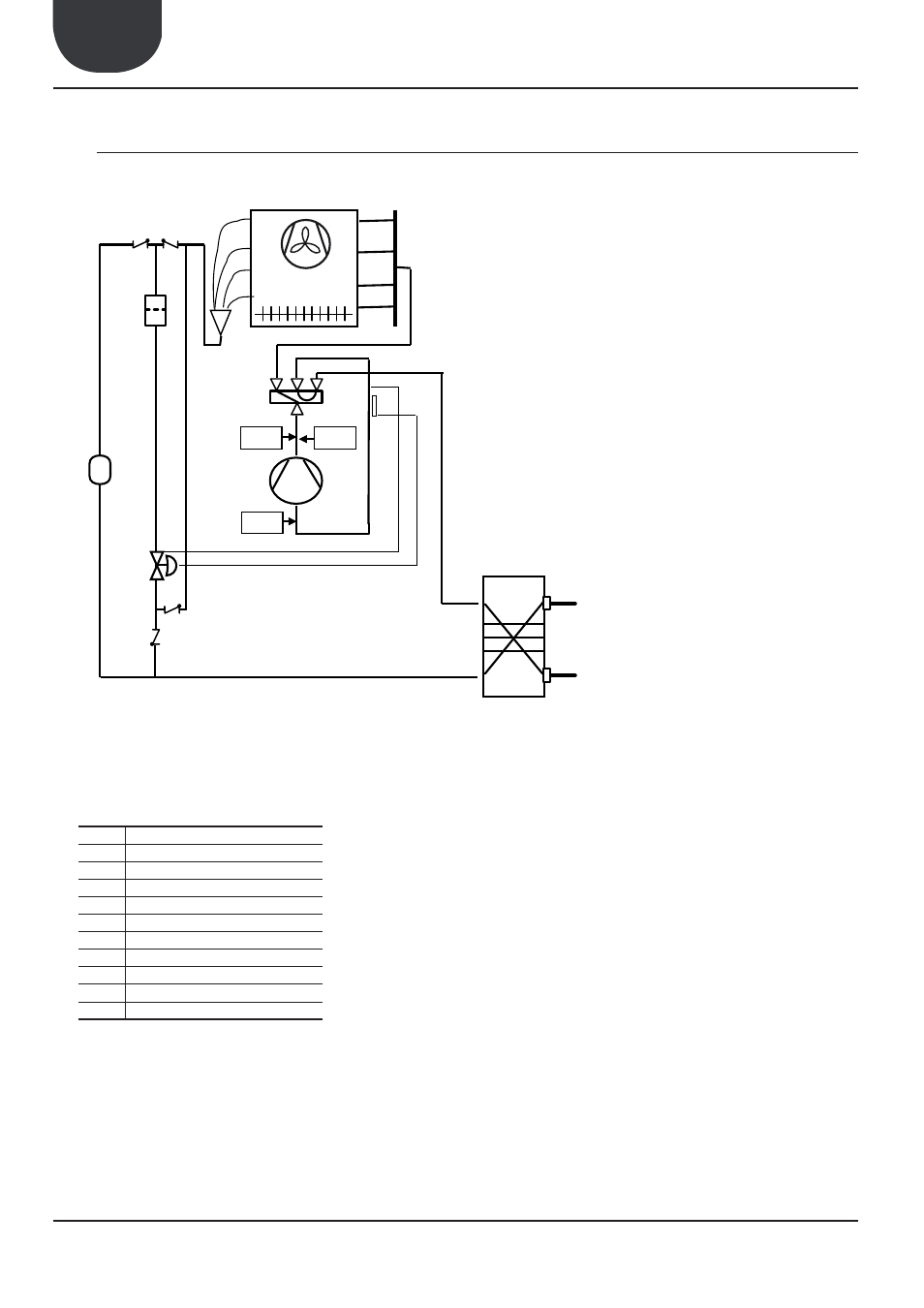

REFRIGERANT CIRCUIT SCHEMATIC
4.1.
HEAT PUMP MODEL
TEV
F
CV
CV
HPS
HPT
LPT
CV
AL
CP
VIC
EV
CN
CV
LEGEND
AL Liquid accumulator
CN Coil finned - microchannel
CP Compressor
F Filter drier
HPS High pressure pressostat
EV Plate heat exchanger
HPT High pressure transducer
LPT Low pressure transducer
VIC Reversing valve
TEV Thermostatic expansion valve
CV Check valve
