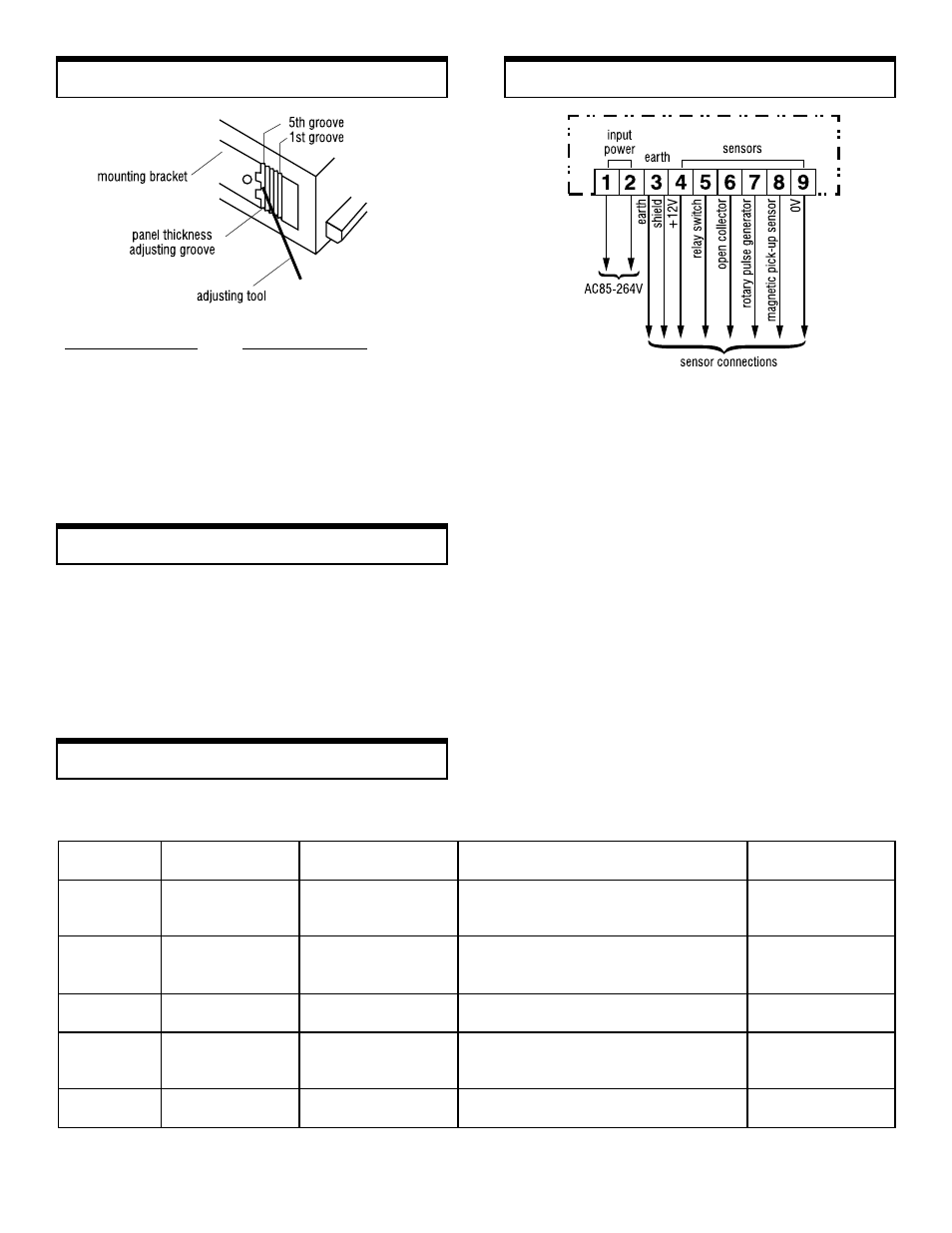

Mounting Bracket A Mounting Bracket A Mounting Bracket A Mounting Bracket A Mounting Bracket Adjustment djustment djustment djustment djustment
Panel Thickness
Thickness of Panel Adjusting Groove
1.2 – 1.6 mm 5th groove (factory setting)
1.8 – 2.5 mm 4th groove
2.8 – 3.6 mm 3rd groove
4.0 – 4.5 mm 2nd groove
5.0 mm 1st groove
Connections Connections Connections Connections Connections
R R R R Removing Unit emoving Unit emoving Unit emoving Unit emoving Unit
From the rear of the tachometer, alternately push the unit
from the left and right. This will free it for easy removal.
Sensors Sensors Sensors Sensors Sensors
Shimpo offers a large selection of sensors to meet you application needs. The chart below shows
the optimum sensor to use when designing your system. Please call us for more information.
SENSOR FREQUENCY TYPE TERMINAL NUMBERS FREQUENCY OR RPM RANGE
OPERATION
TEMPERATURE
RE1B–60C
RE1B–600C
RE1B–1000C
Rotary Pulse Generator
3, 4, 7, 9,
3, 4, 7, 9,
3, 4, 7, 9, 0–5000 rpm
0–3000 rpm
0–1800 rpm +14° F to +122° F
+14° F to +122° F
+14° F to +122° F
BI2–S12
DJ2–G
SE–G Proximity Switch
Proximity Switch
Proximity Gear Sensor
4, 6, 9,
4, 8,
3, 4, 7, 9,
0–2 KHz
0–1 KHZ
0–8KHz
-13° F to +158° F
-4° F to +140° F
-4° F to +158° F
RS220H
MCS–625
Retro Reflective Sensor
3, 4, 7, 9,
3, 4, 6, 9, 0–500 Hz
0–250 Hz +14° F to +140° F
-22° F to +120° F
3030AN
MP–10
3070A*
Magnetic Pick-up
3, 8, 9,
3, 8, 9,
8, 9,
Min. 5 I/s with 16 pitch gear .005" clearance
Min. 1 I/s with 12 pitch gear .005" clearance -100° F to +225° F
-40° F to +221° F
-100° F to +200° F
Switch Closure Relay or Solenoid 5, 9, <20 Hz
1&2 Line voltage input. AC voltage must be between 85
and 264 volts.
3 Earth ground. Connect all cable shielding to this
terminal.
4 12 VDC 50mA max. This sensor power supply is for
any sensor that requires external power
5 Switch closure input. To be used with a relay or
solenoid. The input frequency must be less than 20Hz.
6 For use with open collector sensors. Connect the
sensor's signal output wire. No need for an external
pull-up resistor.
7 Terminal to accept signals from rotary encoders or
pulse generators.
8 Standard input terminal for magnetic pick-ups and
proximity switches.
9 Signal ground or common.
2
* explosion proof
