4.5 Terminal assignment of converter
Electrical values
• Pulse output passive: Pulse output passive: Pulse output passive: Pulse output passive:
f ≤ 500 Hz; I ≤ 10 mA; U: 2.7...24 VDC (P ≤ 100 mW)
• Status output passive: Status output passive: Status output passive: Status output passive:
I ≤ 10 mA; U: 2.7...24 VDC (P ≤ 100 mW)

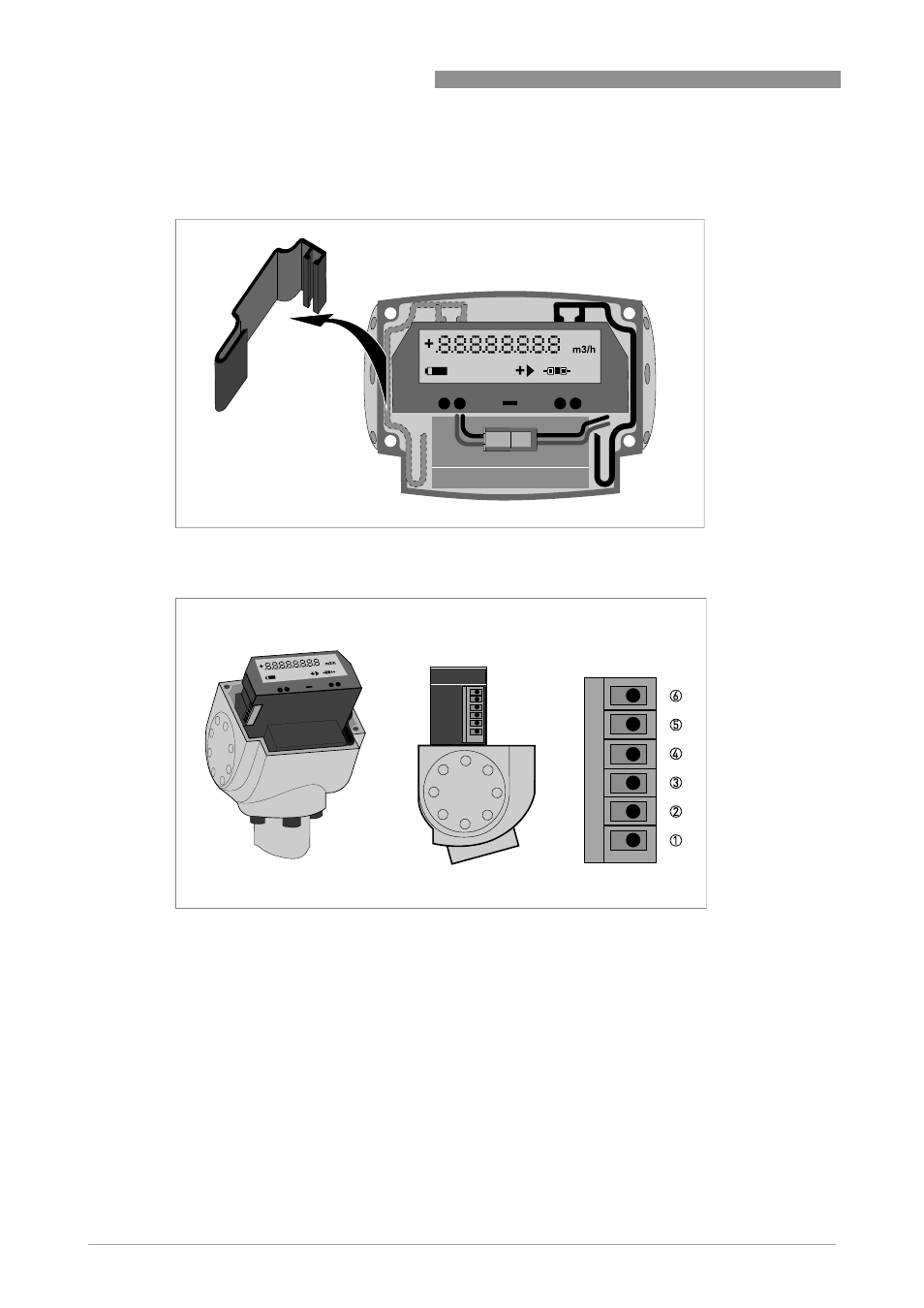

Figure 4-3: Removing side cap
Figure 4-4: Terminal assignment
1 Status output 1
2 Status output 2
3 Not connected
4 Ground
5 Pulse output A
6 Pulse output B
