2
DEVICE DESCRIPTION
10
OPTISENS OAS 2000
www.krohne.com 07/2010 - MA OAS 2000 R02 en
2.1.2 Scope of delivery
Optional accessories for OAS 2000 inline version (if ordered)
• Signal cable extension for OPTISENS 2000 Sensors (10 m / 33 ft)
• Signal cable extension for OPTISENS 2000 Sensors (30 m / 98 ft)
• OAS 2000 inline connection valve
• OAS 2000 inline but weld end R 1 ½" for pipe mounting
• OAS 2000 inline 1/12" NPT nipple
• Sealing kit for OAS 2000 inline-version: flush membrane, o-ring between valve and adapter
48 x 2 EP70, o-ring in the adapter 33.3 x 2.4 EP70, o-ring on OAS 2000 inline 29 x 2.5 EP70
2.2 Device description
The sensor is designed to measure suspended solids concentrations in liquids. Combined with
the MAC 080 converter, the sensor is used to measure suspended solids content as a function of
the ability of suspended materials to absorb and reflect NIR-light (Near Infrared). The sensor is
available in two versions, for inline mounting and for submersion.
This manual details installation procedures and operational features of the sensor. Menu
navigation and technical data for the converter can be found in the converter manual.

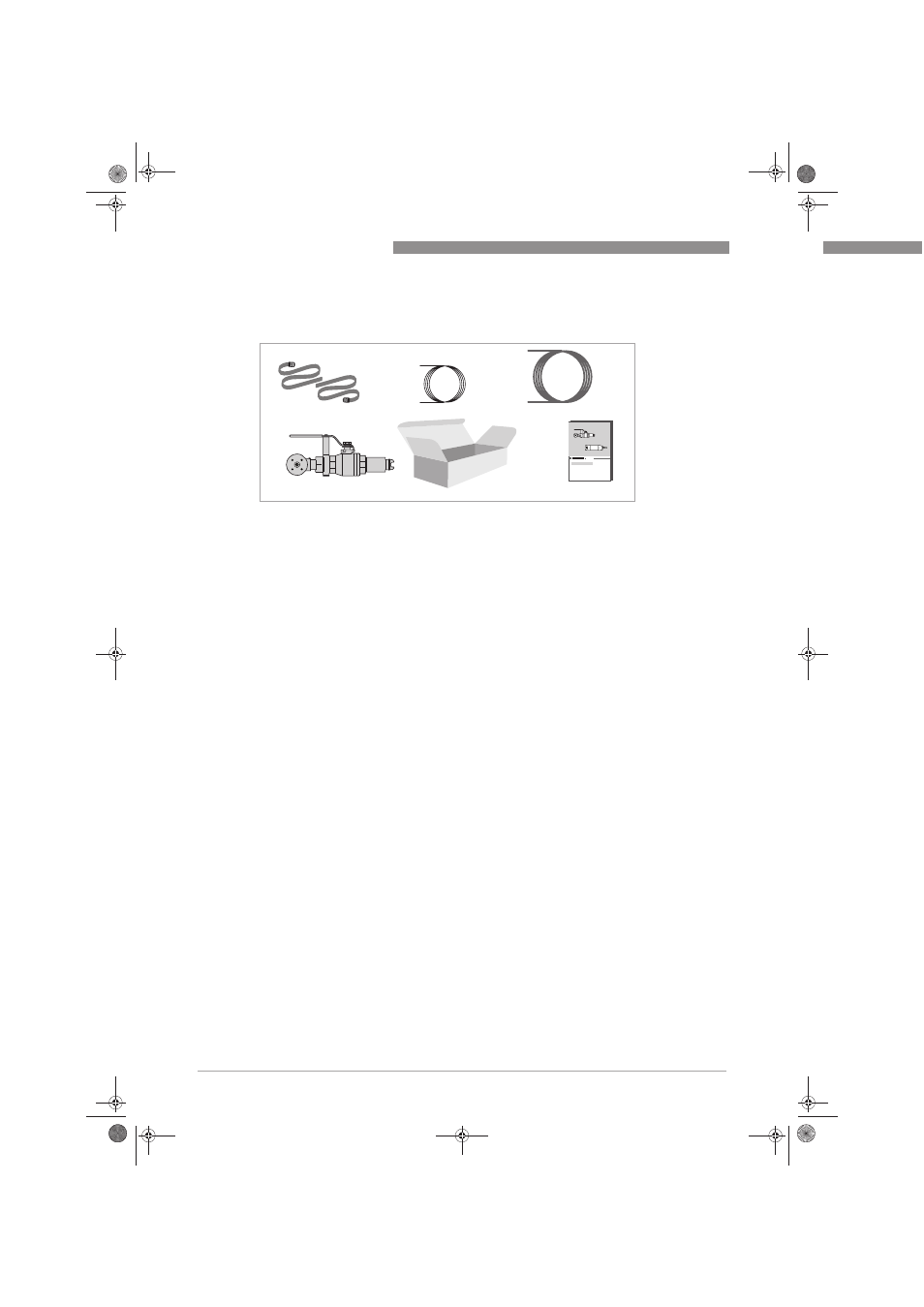

Figure 2-2: Scope of delivery OAS 2000 inline version
1 OAS 2000 suspended solids sensor (inline version), connection valve, but weld end R 1½" for pipe mounting.
Optional: OAS 2000 suspended solids sensor (inline version) without connection valve and but weld end.
2 2 straps
3 10 m / 33 ft signal cable
4 10 m / 33 ft flush hose
5 Handbook
1
2 3 4
5
