16
UFM 3030

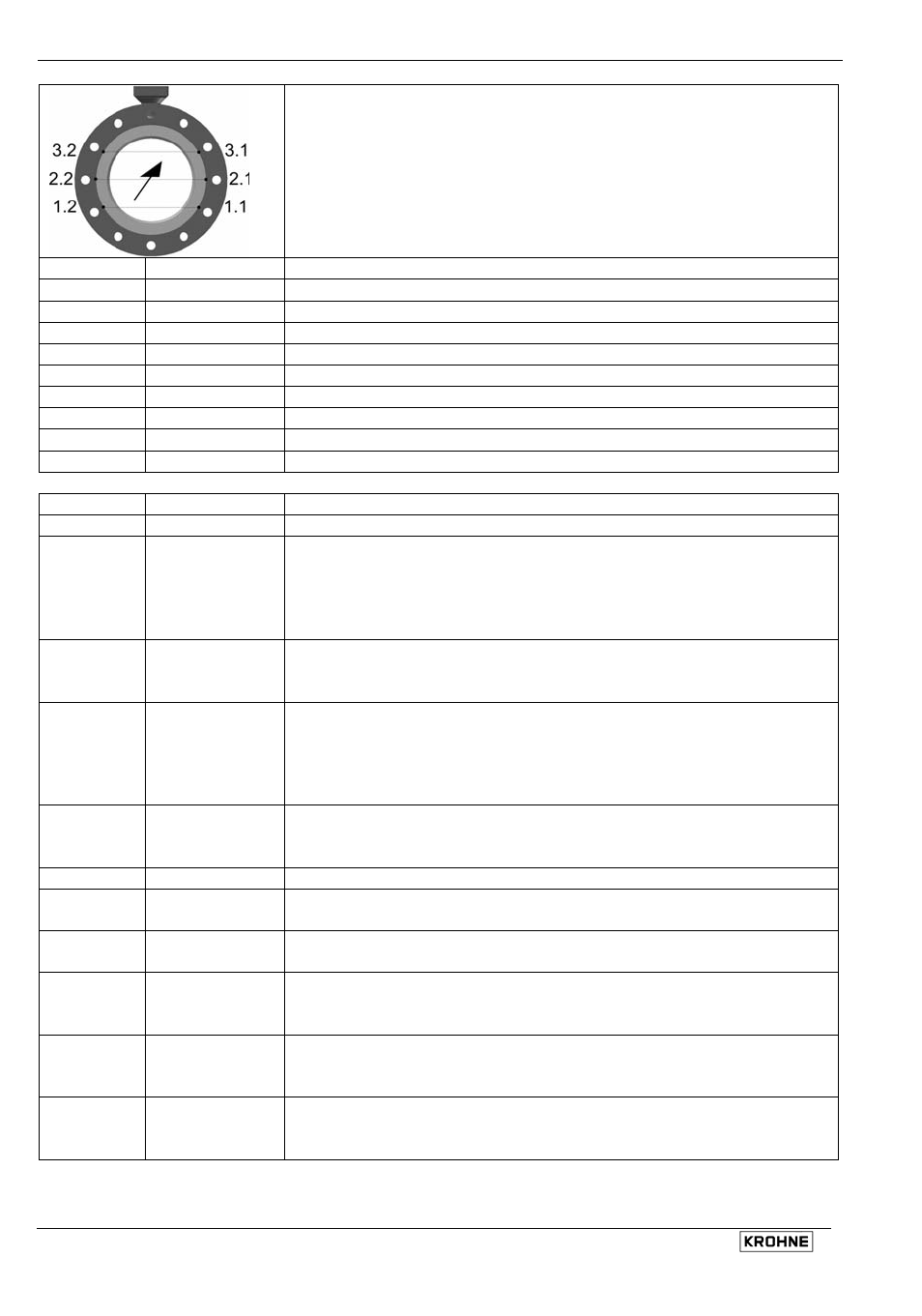

Sensor coding:
X.X = path.sensor
Path 1 = lower path, path 2 = middle path, path 3 = upper path.
X.1: upstream sensor
X.2: down stream sensor
2.04.00 DEV INFO Submenu 2.04.00 Device information
2.04.01 MANUFACT Display manufacturer
2.04.02 MODEL NO Display model number
2.04.03 SERIAL NO Display serial number
2.04.04 UP2 HW NO Display µP2 hardware number
2.04.05 UP2 SW NO Display µP2 software number
2.04.06 FRNT HW NO Display front end hardware number
2.04.07 DSP HW NO Display D.S.P. hardware number
2.04.08 DSP SW NO Display D.S.P. software number
2.04.09 TIME COUNT Display time counter
3.00.00 INSTALL Main menu 3.00.00 Installation
3.01.00 FLOW Submenu 3.01.00 Volume flow parameters
3.01.01 FULL SCALE Full-scale value for 100% volume and flow rate units (see Function
1.01.01). The selection of units may be limited to SI units only.
m³/s, m³/min, m³/hr, L/s, L/min, L/hr,
US.Gal/s, US.Gal/min, US.Gal/hr, bbls/hr, bbls/day,
********** (free user configurable unit).
3.01.02 ZERO VALUE Zero value (see Function 1.01.02)
FIXED (factory zero setting)
MEASURED (zero calibration possible, see Function 3.01.03)
3.01.03 ZERO CAL Zero calibration (see Function 1.01.03)
Carry out only at “zero” flow and with completely filled measuring
tube. Duration approximately 15s with display indicating "BUSY".
STORE NO (preserve old zero value)
STORE YES (store new zero value)
3.01.04 MASTER TC Master time constant of display and current output (see Function
1.01.04)
Range: 0.02 through 99.99 s
3.01.05 LF CUTOFF Low-flow cut-off for display and outputs (see 1.01.05)
NO (fixed tripping points: ON = 0.1%, OFF = 0.2%)
YES (see Function 3.01.06 and 3.01.07)
3.01.06 CUTOFF ON Cut off “active” value
Range: 1 through 19% of Q100%
3.01.07 CUTOFF OFF Cut off “de-active” value
Range: 2 through 20% of Q100%
Value "off" must be greater than value "on"
3.01.08 METER SIZE Meter size
Selection of size from meter size table:
25-3000 mm equivalent to 1-120 inch
3.01.09 GK VALUE Flow sensor constant (GK)
Must equal flow sensor nameplate value
Range: 0.02 through 20
