VIII — OPERATION
The user is urged to download the Operator’s man-
ual (see “Accessing Manuals.” on page 1) for com-
plete operating instructions. Some additional
features covered in the Operator Manual are listed
on page 13. In addition, the Operator’s Manual also
covers the GPIB and RS 232 interfaces, including
the use of the drivers downloadable from:
www.kepcopower.com/drivers/drivers-dl3.htm
#bop1k.
POWER-UP SETTINGS Read this before con-
necting a load!
CAUTION:
The unit will power-up as specified
by the power-up switches (see Fig-
ure 5). Verify that these switch set-
tings are compatible with your
load. To change any default setting
not covered by this guide, refer to
the Operator’s Manual.
Default settings are in BOLD (other
choices are in italics):
• Load type Active (Battery, Resistive)
• Standalone configuration (Master, Slave)
• Analog Control enabled (disabled)
• Voltage mode (Current mode)
• Protection: internal control, ± limit values at
max (1.01 x EOnom or IOnom)
• • (internal control, +limit values at maximum
(1.01 x E
Onom
or I
Onom
), –limit values
at minimum (box))
• • (internal control, –limit values at maximum
(1.01 x E
Onom or I Onom ),
+limit values at minimum (box))
• • (External protection limits)
• RS 232 Baud rate 9600 (19.2K)
• GPIB address 6 (0 to 30)
• Trigger port pin 2 remote on/off logic set for:
logic 1 or open = output enabled,
logic 0 or short = output enabled,
logic 0 or short = output disabled
logic 1 or open = output disabled

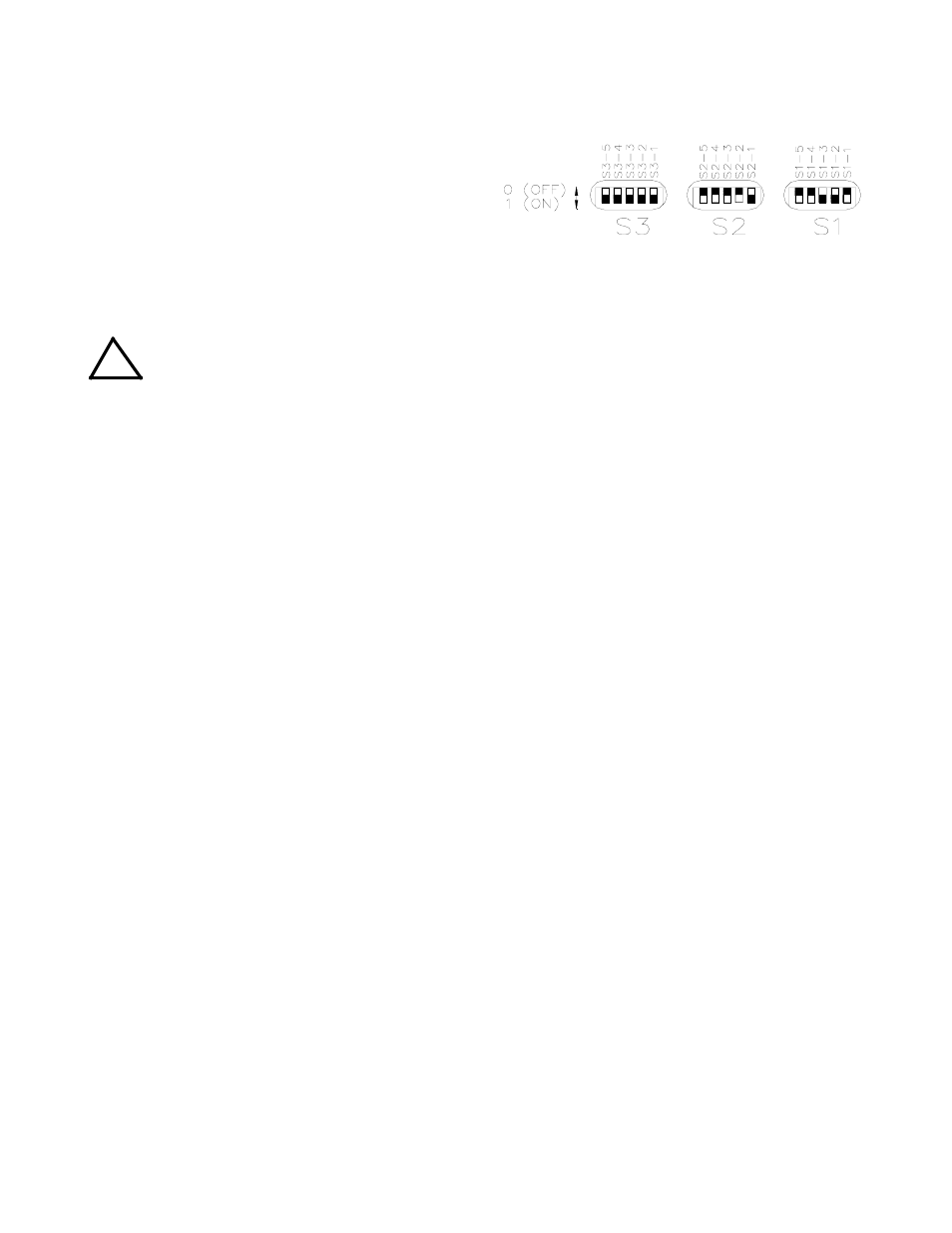

FIGURE 5. TOP COVER POWER-UP SWITCHES,
FACTORY DEFAULT SETTINGS
TURNING THE POWER SUPPLY ON.
The status of the unit upon power-up depends on
the configuration of the three power-up switches
(see Figure 5). Each power-up switch has five seg-
ments. For convenience the switch settings are often
given for all segments; e.g., 00110 indicates seg-
ments 5, 4 and 1 are off (0) and segments 2 and 3
are on (1). In other instances a particular segment
(e.g., S3-5) is specified.
Reset Power-up The reset power-up allows the
power-up switches to establish 1) load type, 2)
Remote On/off logic at Trigger port pin 2 and 3) RS
232 baud rate. The reset power-up also resets all
limits to the factory default condition (overrides limit
settings previously saved by MEM:UPD LIM com-
mand). If load type, baud rate and Trigger Port
remote on/off logic do not need to be changed, refer
to “Normal Power-up” on page 9.
1. With power off, refer to Figure 5 and set switches
S1-1 through S1-5 to 1 (GPIB address to 11111)
and set all S3 switches to 0.
2. Set S3 as follows to establish the load type upon
power-up: S3-2 to 1 = Resistive Load, S3-3 to 1 =
Active Load, S3-4 to 1= Battery Load.
3. Set S3-1 to establish the baud rate for RS 232
operation: 1 = 19.2K, 0 = 9600.
4. Set S3-5 to 0 if desired to reverse the logic of the
Remote On/Off signal at pin 2 of the External Trig-
ger Port from the default (logic 1 = output
enabled, logic 0 = output disabled) to logic 0 =
output enabled, logic 1 = output disabled.
5. Do not change S2 settings.
!
S1: 00110 = GPIB ADDRESS 6
S2: 00001 = STANDALONE
S3: 11111 = VOLTAGE MODE, ANALOG INPUT ON
±V and ±C PROTECT MAX SET TO MAXIMUM
