30
Display Procedure
Press “M＊＊＊＊ ” (※Must type in 4 digits)
Type in the desired page number after “AM”.
Contents
①
Measuring Mode
000: CALCULATION Mode
001: %OA Mode
② Sampling Time
③ Number of Data
④ Calculation setting
CALCULATION -- AVG: average, INS: Instant
%OA -- TMP: temperature CO2; CO
2
⑤ Atmosphere pressure
Display Procedure
Press
[B ]
, after[AB]
The data will be displayed.
Display Procedure
"ED" will be returned if the number of pages etc. is incorrect-inputted.

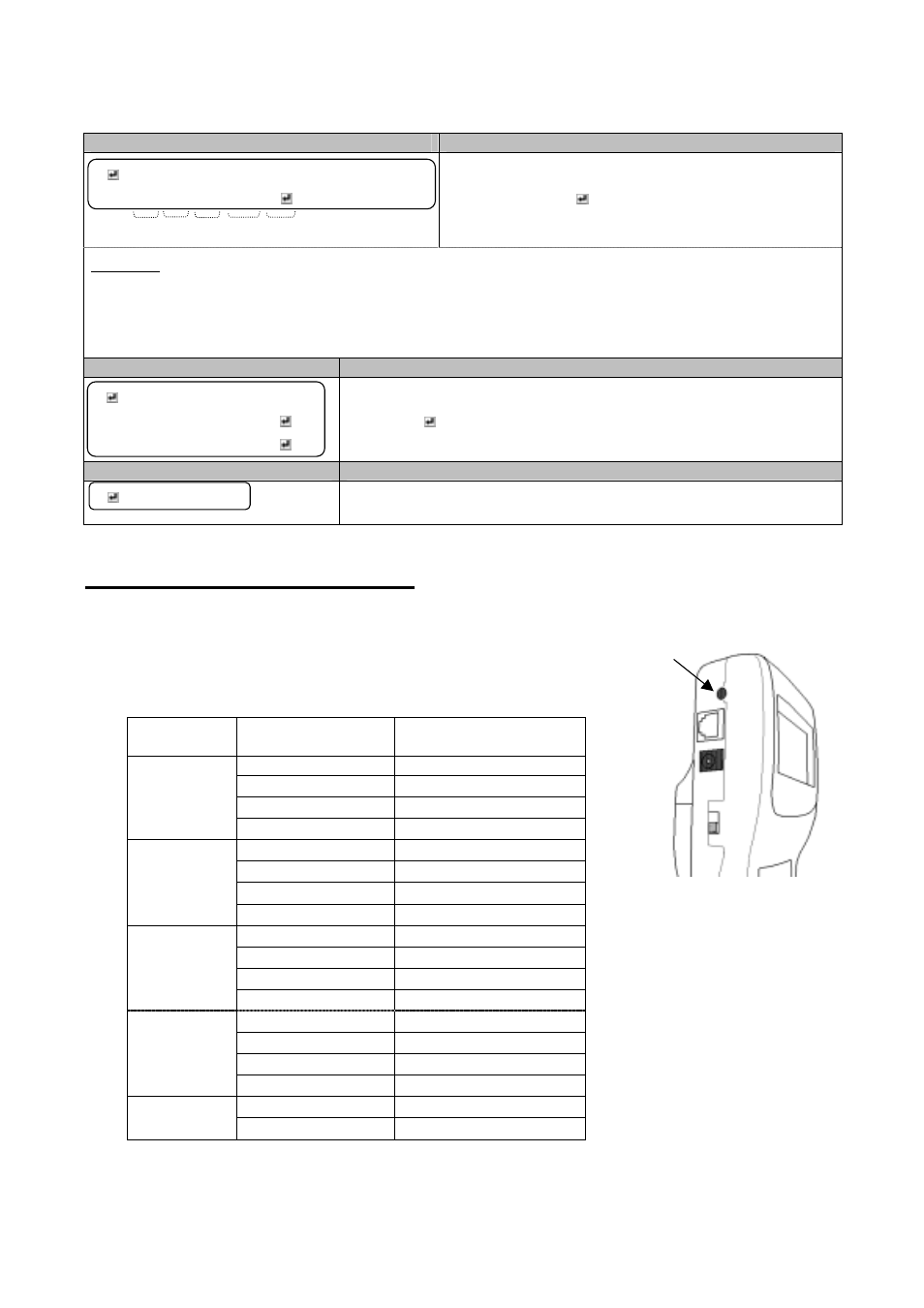

6.6 Analog Output (Optional)
① Data Update Interval ………1 second
② Load Impedance…… Above 5KΩ
④ Output Current………………DC 0-1V
For the analog output, you must select one setting from the table below.
Output Range Conversion Formula
(Voltage: Ｖ)
0 – 50 ppm C = 50 x V ppm
0 – 100 ppm C = 100 x Ｖ ppm
0 – 250 ppm C = 250 x Ｖ ppm
CO （C）
0 – 500 ppm C = 500 x Ｖ ppm
0 – 500 ppm M = 500 x Ｖ ppm
0 – 1000 ppm M = 1000 x Ｖ ppm
0 – 2500 ppm M = 2500 x Ｖ ppm
CO
2
（ M）
0 – 5000 ppm M = 5000 x Ｖ ppm
0 – 50 ℃ T = 50 x Ｖ ℃
0 –100 ℃ T = 100 x Ｖ ℃
-20 – 30 ℃ T = 50 x Ｖ – 20 ℃
Temperatur
e（T）
-20 – 80 ℃ T = 100 x Ｖ – 20 ℃
32 – 122 o F F = 90 x Ｖ + 32 o F
32 – 212 o F F = 180 x Ｖ + 32 o F
-4 – 86 o F F = 90 x Ｖ – 4 o F
Temperatur
e（Ｆ）
-4 – 176 o F F = 180 x Ｖ – 4 o F
0 – 50 %RH H = 50 x Ｖ %RH Humidity
（Ｈ）
0 – 100 %RH H = 100 x Ｖ %RH
Analog Output Port
③ ⑤
AM
CTH;000;001;003;AVG;1013
① ② ④
AB
CTH;000;001;003;AVG;1013
CTH;001;001;005;TMP;1013
ED
