27
6.4 Digital Output
6.4.1 Preparation
You can download the data stored in IAQ Monitor to your PC, by connecting
IAQ Monitor and your PC with the RC232C cable.
- Computer
- RS-232C cable (provided)
- Data Processing Software （Software for Windows DC-ROM is provided）
You need to coordinate the data transmission conditions on both Main Body and your PC.
The factory setting of Main Body is as follows:
※ To change the BAUD RATE, refer p.34 “Units and Baud
Rate”.
For setting your PC, refer to the operation manual of your PC
＜
Connecting PC＞
① Connect PC to Main Body using an RS-232C cable.
② Turn ON the IAQ Monitor.
③ Make sure that the IAQ Monitor is displaying NORMAL Mode.
Make sure that the IAQ Monitor is displaying NORMAL Mode.

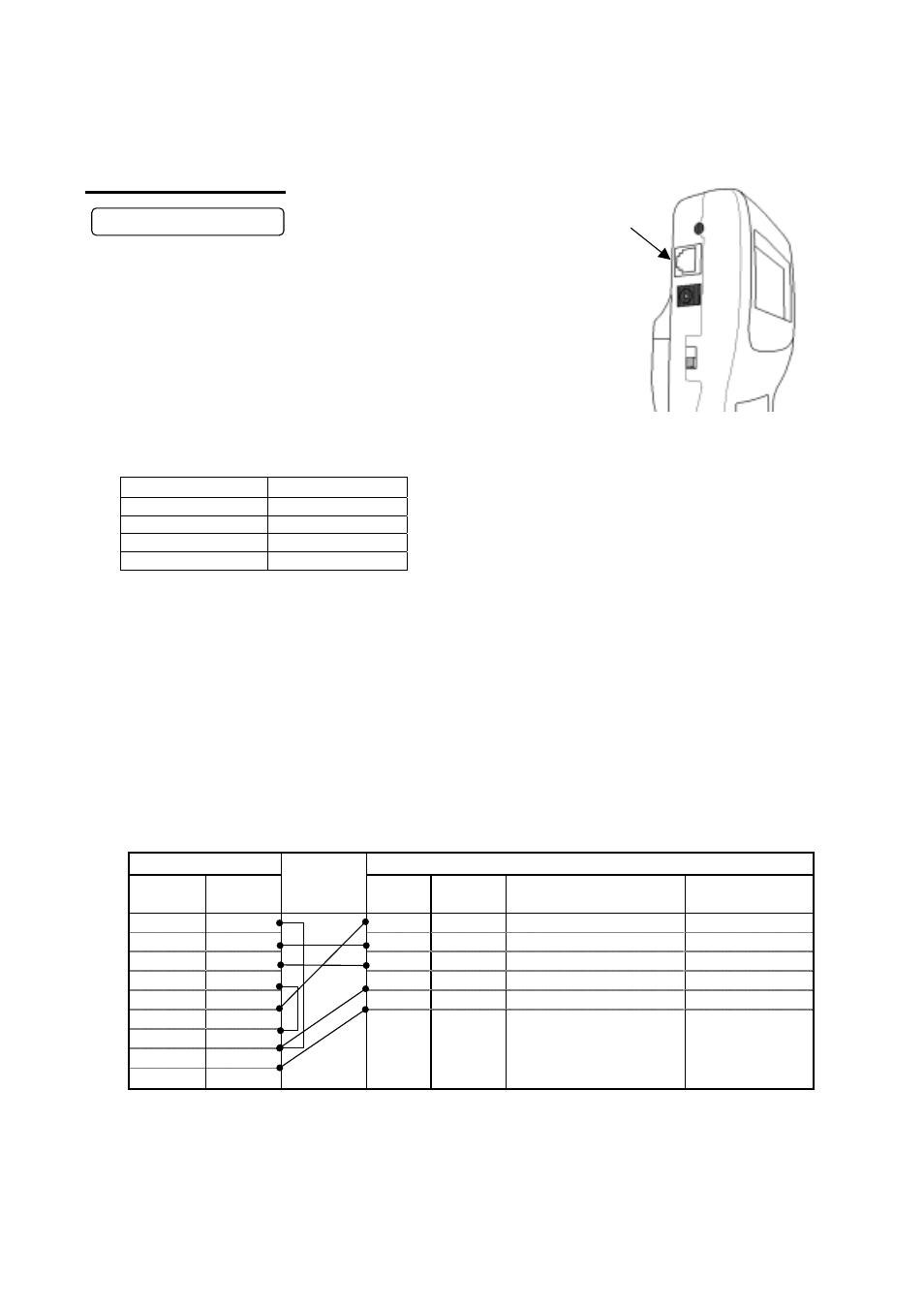

RS232C Cable Wiring Diagram
PC (D-Sub9 pin) IAQ Monitor （MODEL2211）
Signal Pin No.
Connection
Pin No. Signal Purpose Direction
NC 1 1 GND Ground
RXD 2 2 TXD Transmitting Output
TXD 3 3 RXD Receiving Input
NC 4 4 CTS Transmission Approval Input
GND 5 5 RTS Transmission Request Output
NC 6 6 NC
RTS 7
CTS 8
NC 9
Data Bit Length ８ bits
Parity None
Stop Bit 1
Delimiter CRLF
Baud Rate Bace on the setting
RS232C Port
