Dual Measurement Combinations
Combinations The dual measurement mode allows you to use the 2nd
display to show another item, thus viewing two different
measurement results at once.
Any of the following items can be combined together for
dual measurements (for example ACV + Hz, DCV +
DCI)

ACV

DCV

ACI

DCI

2W/4W

Hz/P
Note

2W/4W measurements in combination with other
measurements are possible but may not be practical as
the measurement accuracy is not guaranteed.
1. Connect the
test leads
Voltage/Frequency/Period/Resistance and Current
Measurement

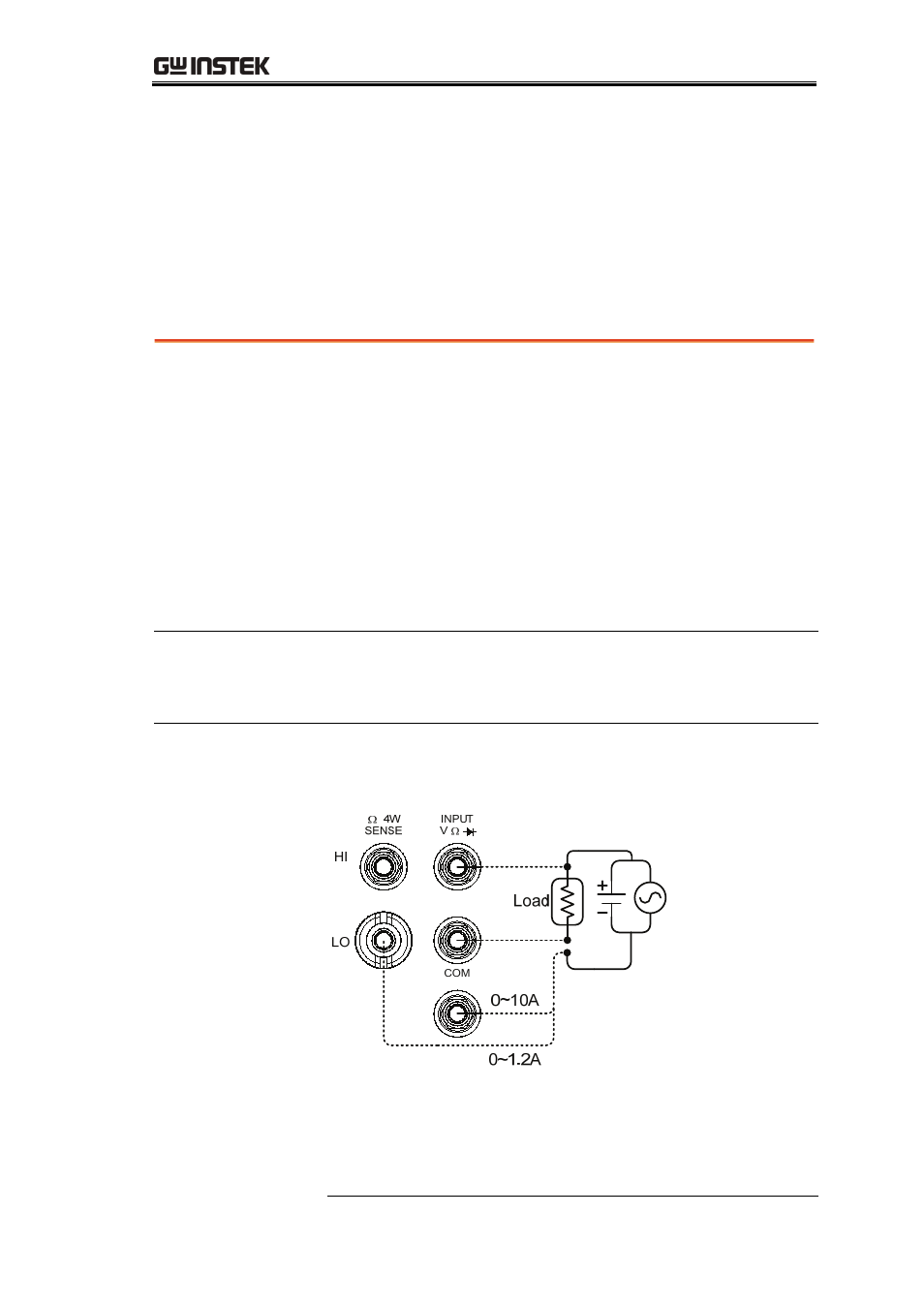

Note: The above measuring configuration is used to
measure the voltage present on the resistance under test
and the current through the resistance under test when
using the DCI/DCV or ACI/ACV dual measurement
function.
