GUT-6000A USER MANUAL

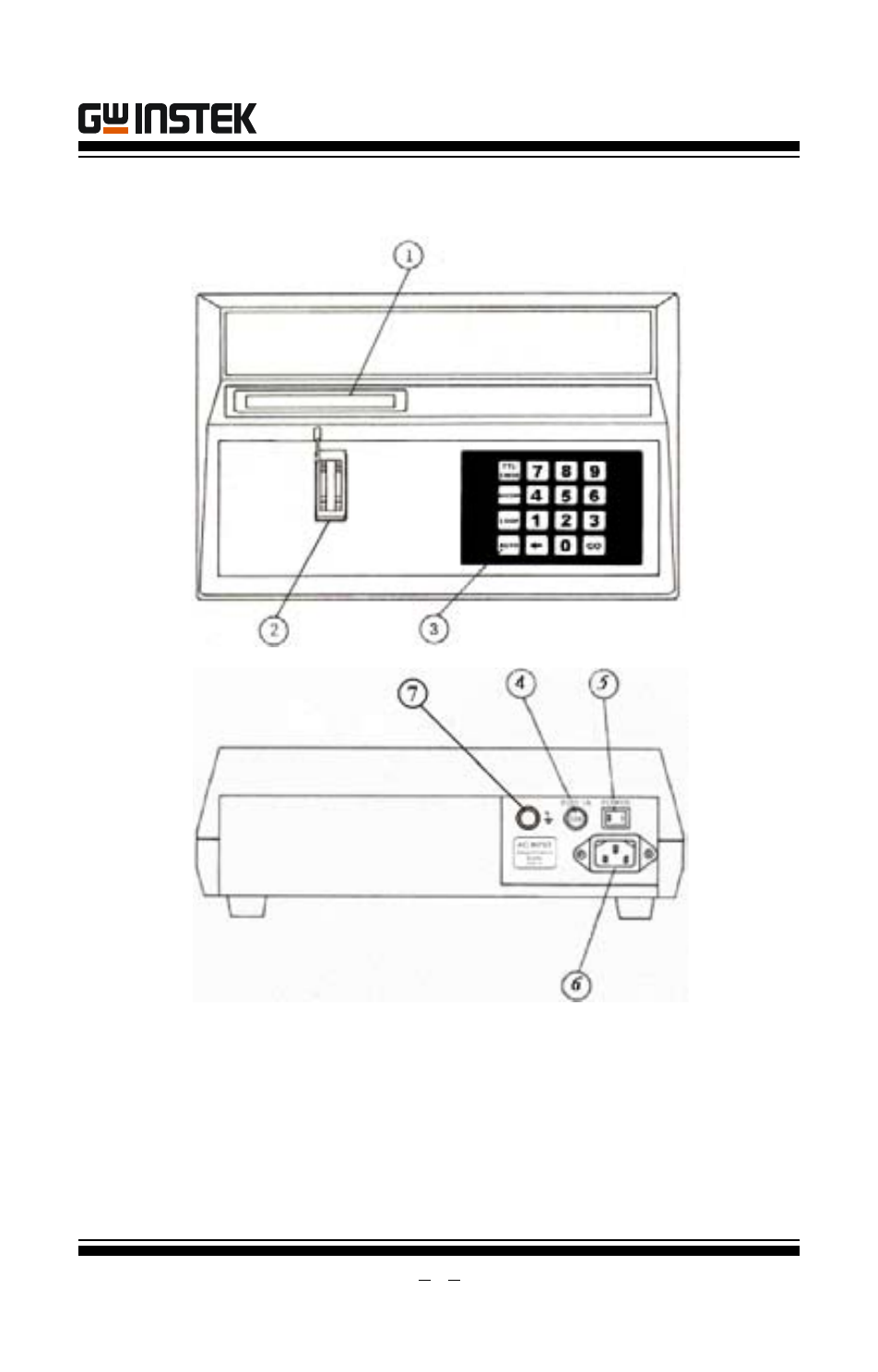

CONTROLS & INDICATORS

(1) Liquid Crystal Display…..…....16*1 character 9*7 dot matrix LCD display
(2) 28Pin Test IC Socket

(3) Keyboard
(4) Fuse …………………………...1A, protects tester from damage
(5) Power Switch …………………Power on or off
(6) AC Receptacle ….…………...Plug in power cord
(7) GND…………………………...Ground
