FIRMWARE

UPDATE

11

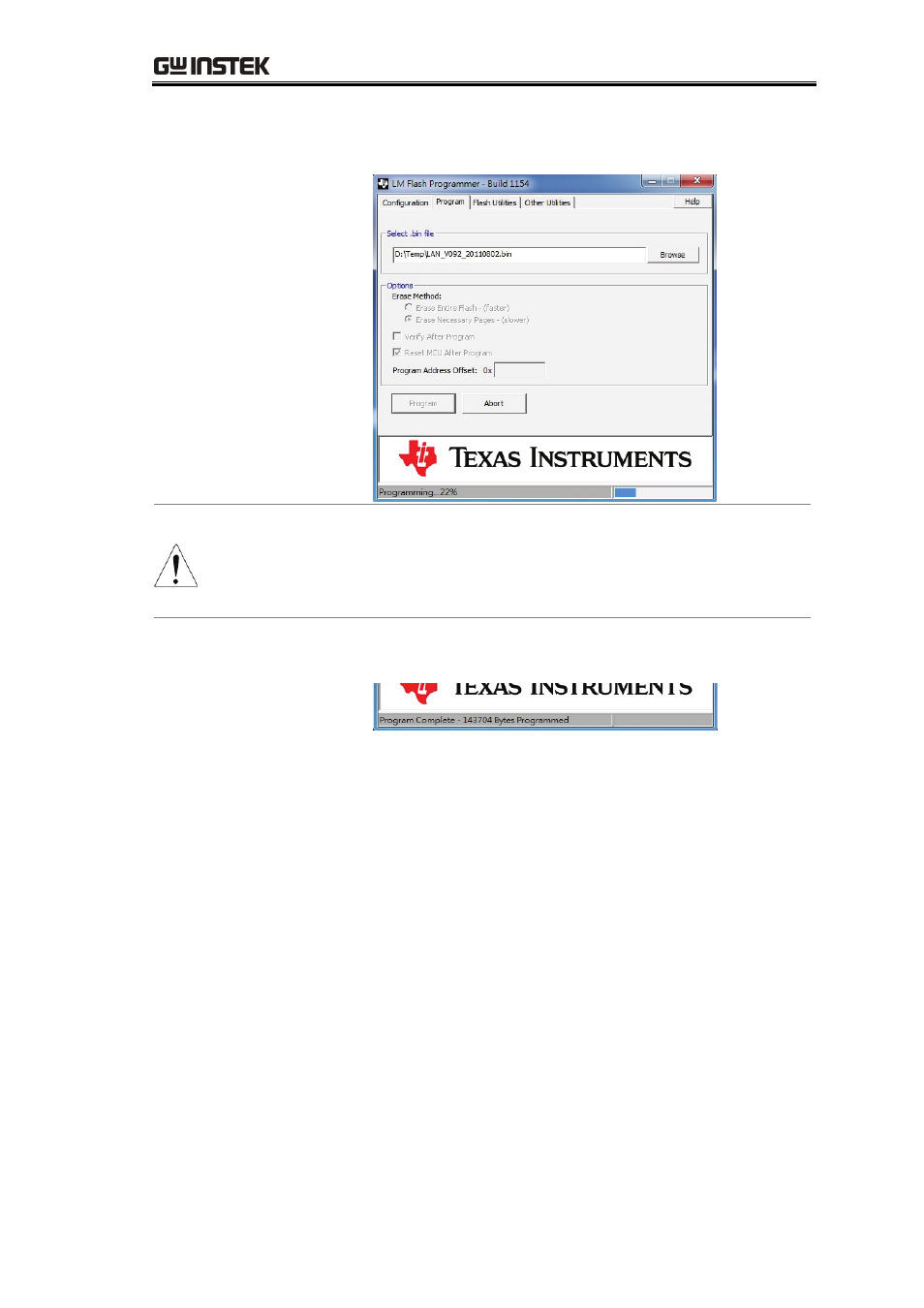

14. Click on the “Program” button to begin

programming the Ethernet card.

Note

Do not remove the RJ45 cable, turn off the power
from the PC, the GDM-8261(A) or the router when
the new firmware is being programmed into the
Ethernet card.

15. “Program Complete” will be displayed when

programming has been completed.

16. After the firmware has been programmed, turn off

the GDM-8261(A). Remove the Ethernet card and
remove the mini jumper from the J902 header pins.

17. Reinstall the Ethernet card into the rear panel slot.

18. Connect the Ethernet card to the router/PC again

and turn on the GDM-8261(A).

Confirm Firmware
Version

19. Start the Web Control Interface (please see the user

manual for details) by entering the Ethernet IP
address into a Java-enabled web browser.
