GDM-350B User Manual

DC Current Measurement

(see diagram 3)

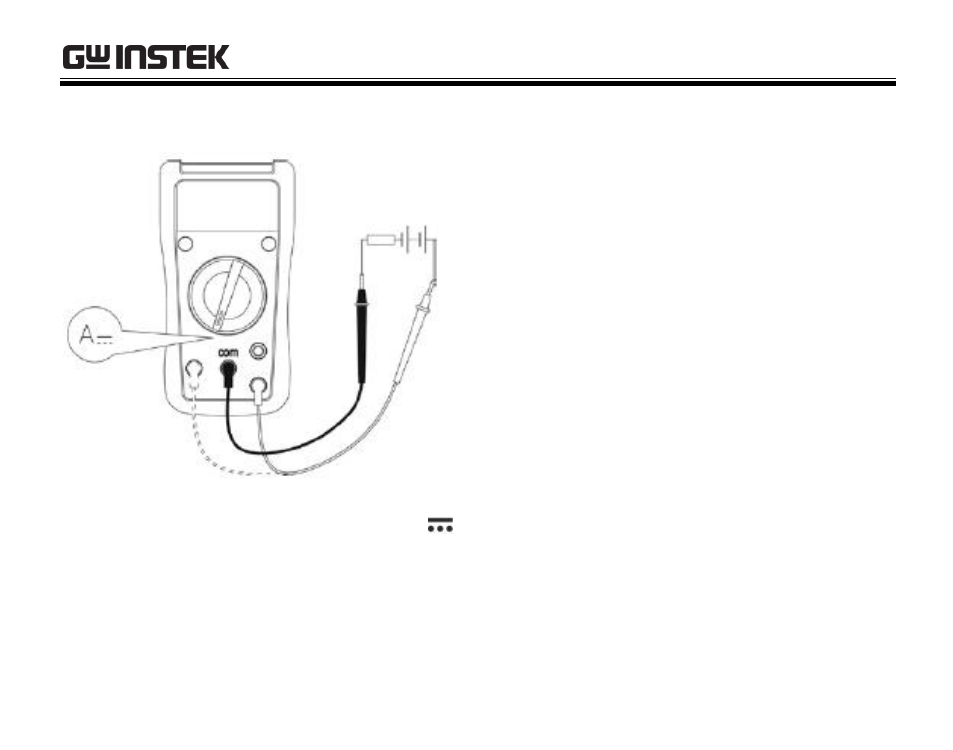

Diagram 3

1. Turn the rotary switch to the “A “ position for current measurement.
2. Insert the red test lead into the “mA” or “10A” terminal, and the black test lead

into the “COM” terminal. Connect the test leads to the DUT being measured.
The measured value shows on the display.
