GOM-801H DC MILLI-OHM METER
USER MANUAL
⎯ ⎯
8

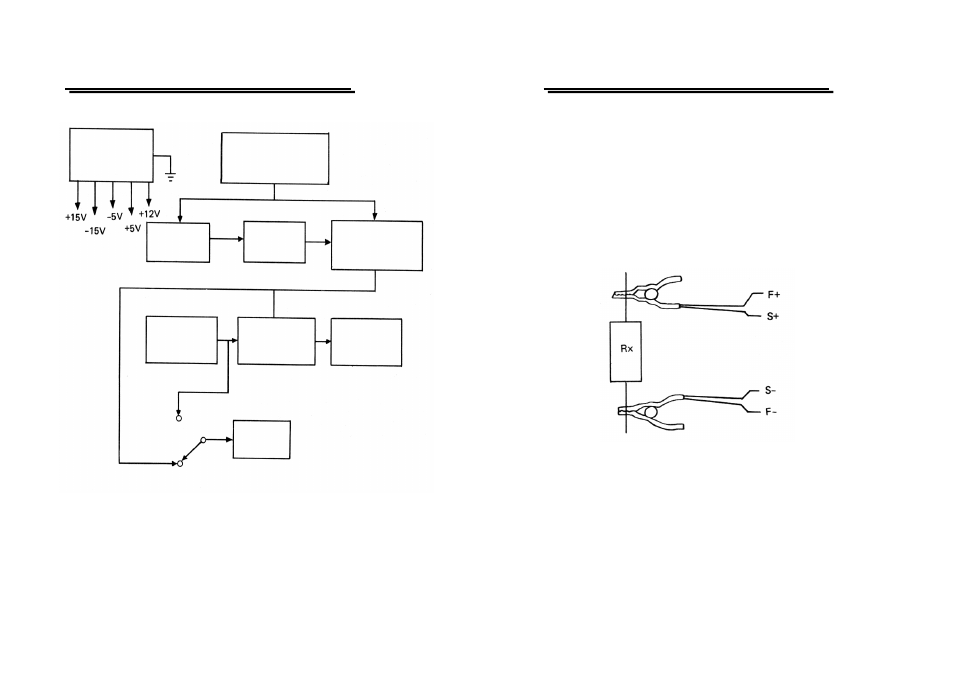

Fig. 5-1
VOLTAGE
REGULATOR
TEST
CONSTANT
CURRENT
SOURCE
SET
3 1 /
2
DVM
TEST
TERMINAL
SET
REFERENCE
COMPARATOR
HI.GO.LO
INDICATOR
10 OR 100
TIMES SIGNAL
AMPLIFIER
RANGE SELECTOR
& MEASUREMENT
GOM-801H DC MILLI-OHM METER
USER MANUAL
⎯ ⎯
9
6. OPERATION INTRODUCTION
6-1. Preliminary Operation
1. Set the power off.
2. Make sure that line voltage is correct for the input power voltage.
3. Plug power cord into the power outlet.
4. Turn on the instrument and allow about 10 minutes of warm up time to
stabilize the instrument.
6-2. Measurement of Resistor
Fig. 6-1
1. Connect an unknown resistor to the test terminals as shown in Fig. 6-1.
2. Set the range to the position where the reading value can be obtained.
