POWER METER
USER MANUAL
15

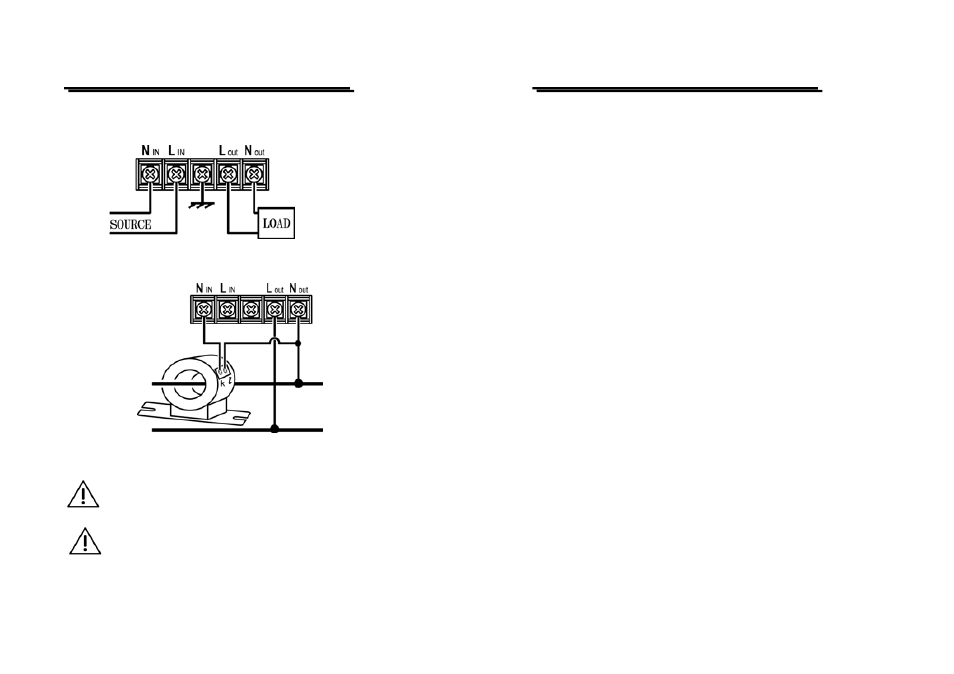

4-2.Wiring
z Without PT or CT:
z With CT
SOURCE LOAD
WARNING: Make sure that the source power is off before any
wiring connection.
WARNING: Make sure that all connecters are well connected
before the source power is on.
POWER METER
USER MANUAL
16
5. USAGE DESCRIPTION
z
Baudrate setting
1) Press the button of Baud to appear the letter of BAUD on the window 2,
window 3 indicates the previous setting parameters, and window 1
appears "————". If no further action, it will return to previous test
mode within 5 seconds, or press [Back] button directly.
2) Then proceed the following steps to set the desired parameters, such as
1200:
— Press [1] to appear 1---.
— Press [2] to appear 12--.
— Press [0] to appear 120-.
— Press [0] to appear 1200.
3) If there is any mistake, press [Å] key to erase front error numbers.
4) After pressing [ENTER] to save the information, return to test mode.
z Address setting
1) Press [Addr] to appear ADDR on the window 2, window 3 indicates
previous setting parameters and window 1 appears "——". If no further
action, it will return to previous test mode within 5 seconds, or press
[Back] button directly.
2) Then proceed the following steps to set the desired parameters, such as
10:
— Press [1] to appear 1-.
— Press [0] to appear 10.
3) If there is any mistake, press [Å] key to erase front error numbers.
4) After pressing [ENTER] to save the information, return to test mode.
