Front Panel
dB
Enter
F 1
F 2
F 3
F 4
F 5
F 6
0 BK SP
kHz /
Sec m
mSec
MHz /
GHz /
Sec
1
4
7
2
5
8
3
6
9
Frequency
Span
Amplitude
Autoset
Marker
Peak
Limit Line
Meas
Search
BW
Trace
Display
Memory
Preset
Hardcopy
System
Hardcopy Setup
150 kHz 3 GHz
Spectrum Analyzer
RF INPUT 50
+30dBm MAX.
MAX. DC ±25V
Ω
2 1 3 4
5
6
8 9 10
7

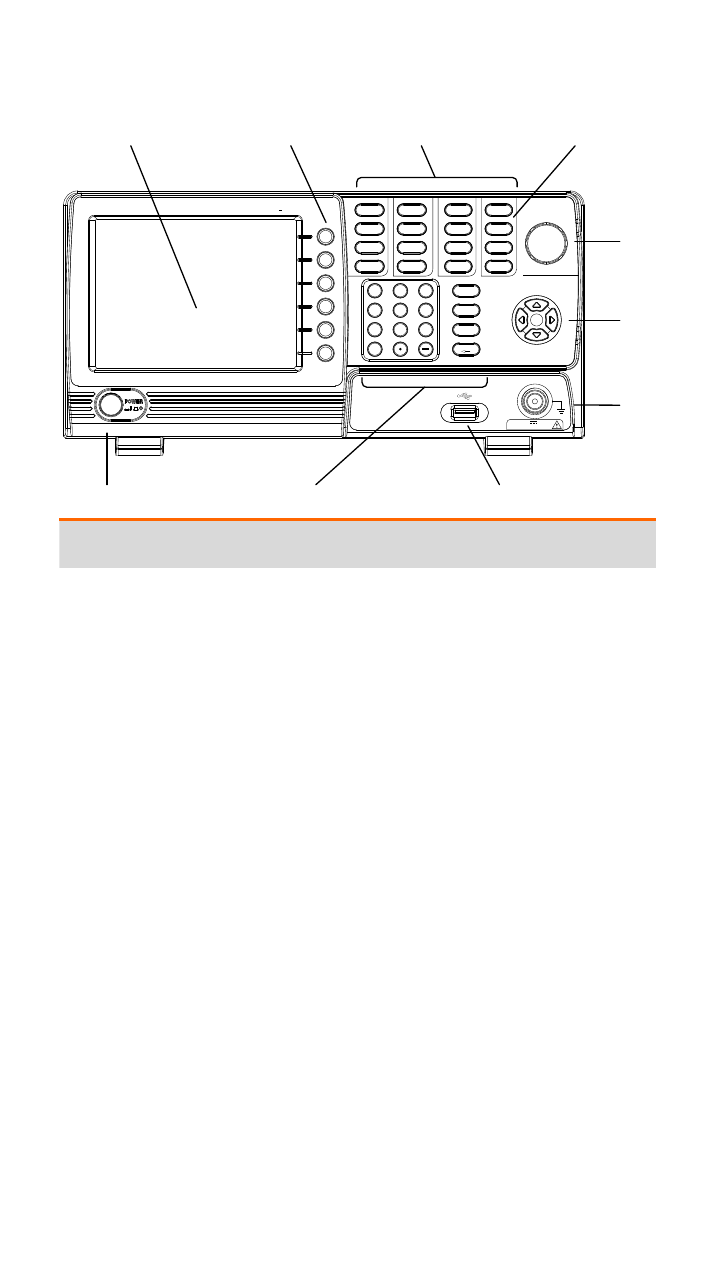

Description
1. LCD display 2. Function keys
3. Menu keys 4. Hardcopy key
5. Scroll wheel 6. Arrow keys
7. RF terminal input 8. USB A port
9. Keypad and unit keys 10. Power button
