Restoring Default Settings

The factory default settings can be easily restored
using the Preset key on the front panel. The default
settings cannot be changed. See the user manual for a
list of the factory default settings.

Restore Default Settings:

Press

Preset

.

The spectrum analyzer will load the default factory
settings.

Conventions

The following conventions are used throughout the
user manual. Read the conventions below for a basic
grasp of how to operate the GSP-730 menu system and
front panel keys.

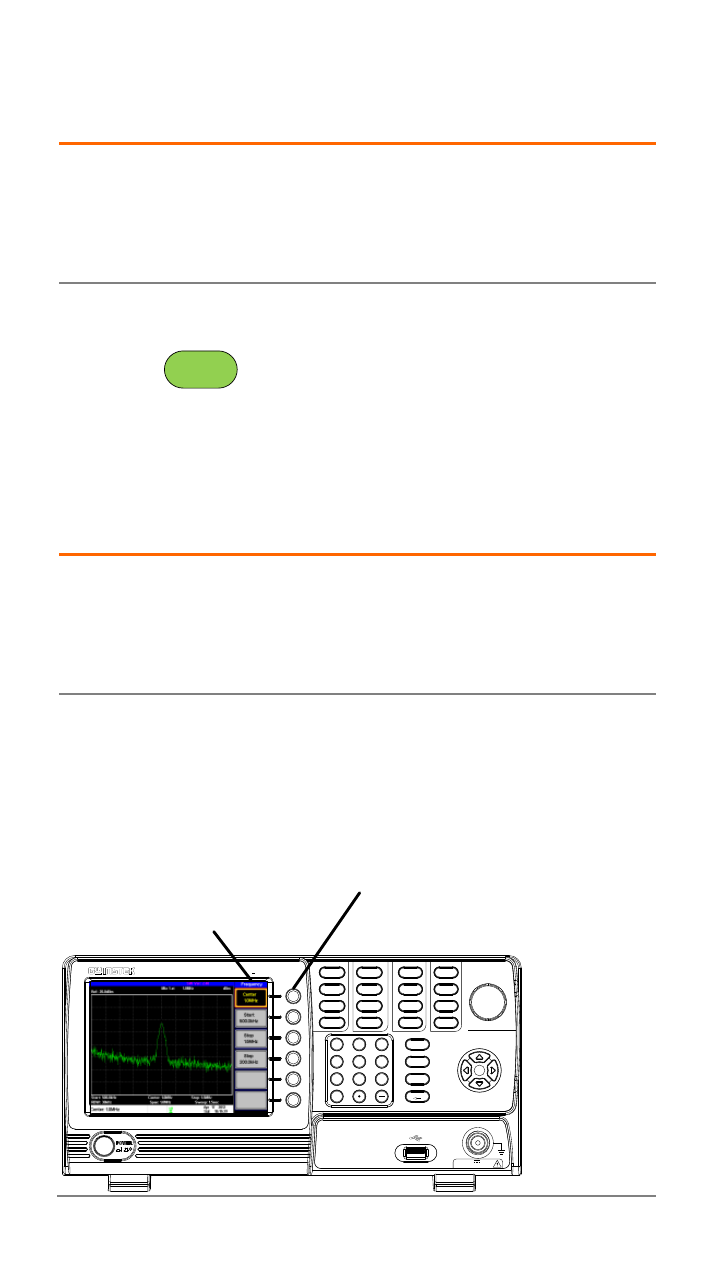

Soft Menu keys:

The F1 to F6 function keys on the right side of the
display correspond directly to the soft-menu keys on
their left.

Soft-menu keys

F1 ~ F6 function keys
